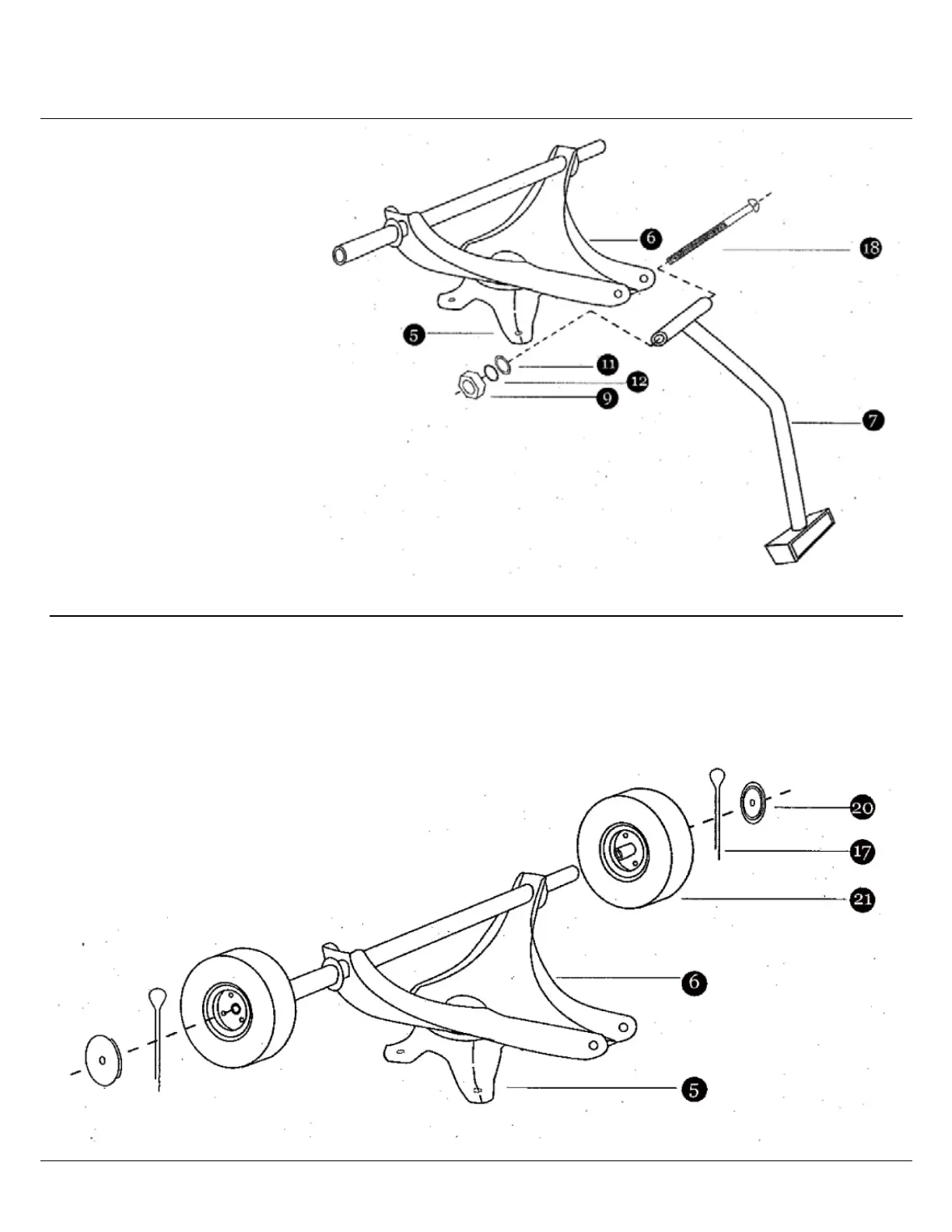

Step 4 -
Handle Assembly
Attach the handle (7) using
a M6 x 65mm bolt (18), 6mm
washer (11), 6mm Spring
washer (12), and M6
nut (9) on the front support.
Step 5 -
Wheel Assembly
Attach wheels on the front & rear
support with pins (17), and wheel
covers (20).
The operation of assembling
rear wheels are the same as the
front ones.
4
