Peripheral Connection

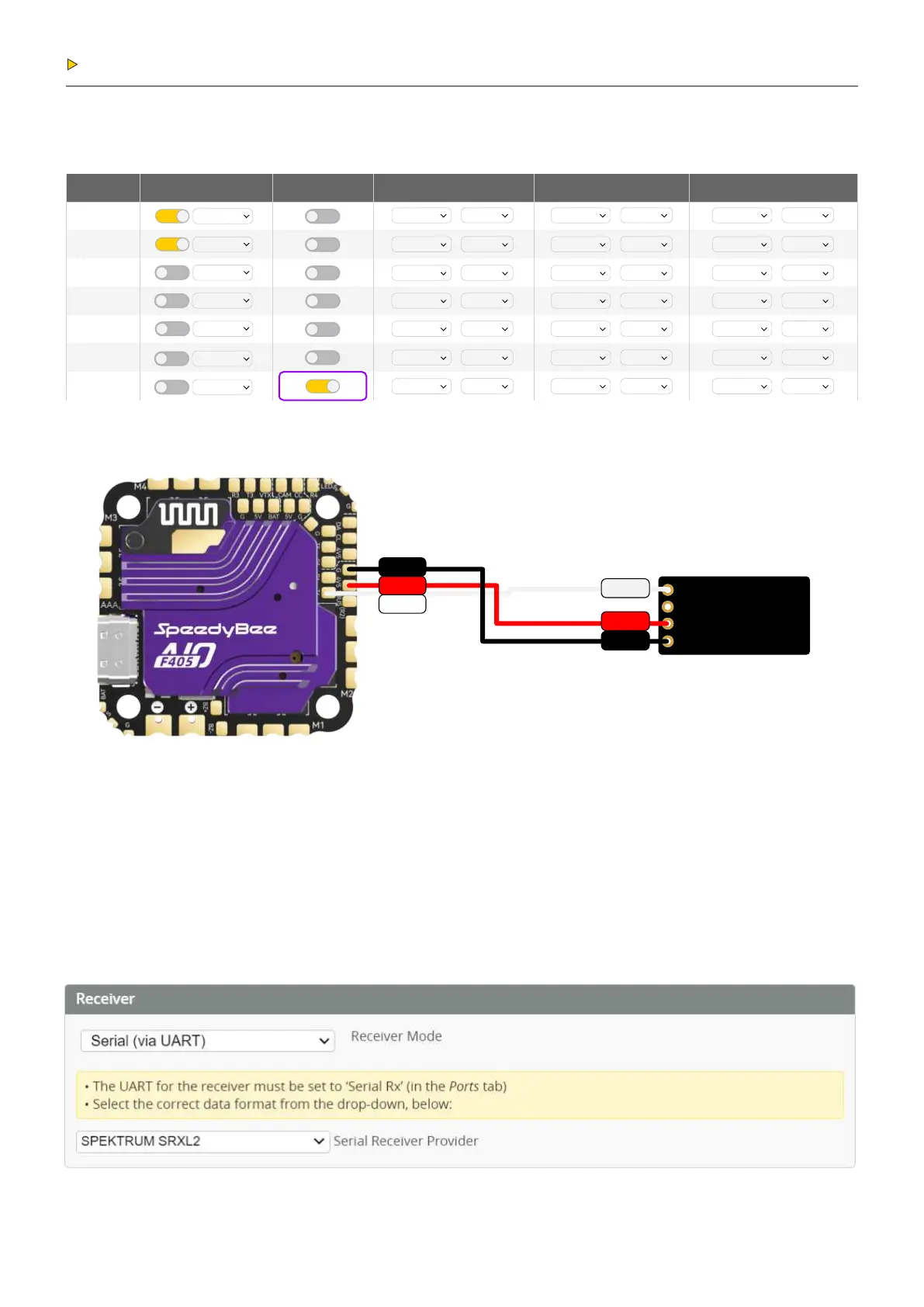

Spektrum SRXL2 Receiver Connection and Settings:
2.1
Setting Steps
1. Enable the UART6 serial receiver port on the Ports tab.
2. Set the receiver protocol to SPEKTRUM SRXL2 on the Receiver tab.
VCC
TX
G
4V5
T6
G
