SpeedyBee F405 V3 - FC & ESC Connection

FC & ESC Connection
4/14

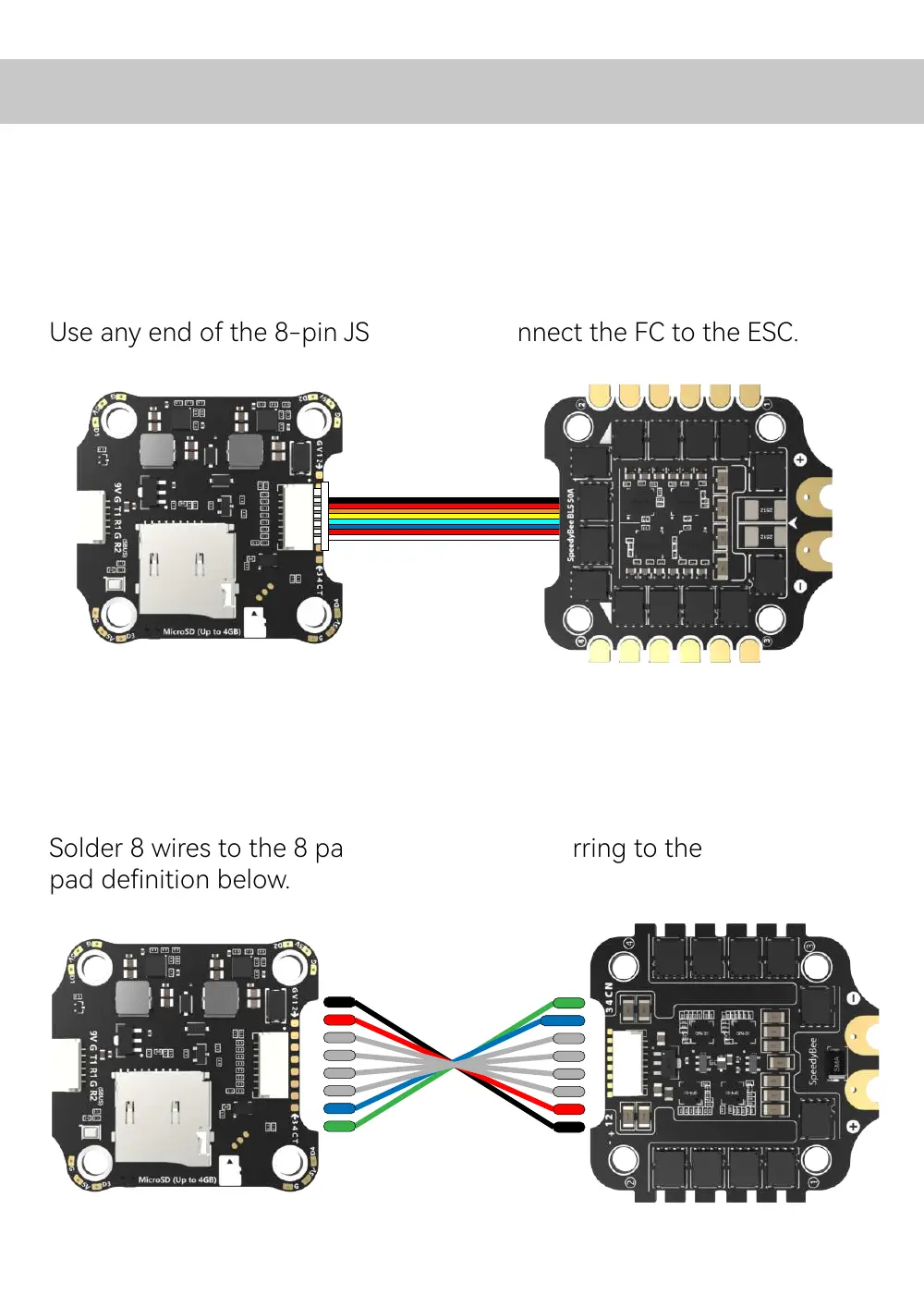

Method 1 - Using 8-pin cable
Use the 8-pin cable in the package to connect the FC and the ESC.
Or solder 8 wires directly to the 8 pads on each end.
Use any end of the 8-pin JST cable to connect the FC to the ESC.
Solder 8 wires to the 8 pads on each end referring to the
pad denition below.
Method 2 - Direct soldering
BTA
GND
M2
M3
M4
CUR
TEL
M1
VBTA
GND
S2
S3
S4
CURRENT
N/A
S1
F405 V3 Flight Controller BLS 50A 4-in-1 ESC
BLS 50A 4-in-1 ESC
F405 V3 Flight Controller
