AR7700 Instruction Manual
The AR7700 full range receiver features DSM
®
technology and is compatible
with all Spektrum
™
and JR
®
aircraft radios that support DSM2
®
and DSMX
®
technology.
Features
• 8 channel 22ms PPM output*
• 18 channel 11ms SRXL output*
• 18 channel 11ms Remote Receiver output*
• Gear, Aux 1 and Aux 2 (Channels 5,6, and 7) are output in parallel as
normal PWM servo signals
• Flight Log and telemetry compatible
*Note: The receiver can only output the number of channels the transmitter can
support.
Applications
Multicopter and FPV projects that can take advantage of a serial signal to
reduce wiring clutter. Not for use in aircraft that require conventional PWM
servo connections for flight control.
Specifications
Type: DSM Full Range Receiver
Channels: 8–18
Modulation: DSM2, DSMX
Band: 2.4GHz
Dimension (WxLxH): 1.15 x 1.35 x 0.45 in (29.2 x 34.3 x 11.4mm)
Weight: 1.4 oz (8.9 g)
Input Voltage Range: 3.5–9.6V
Compatibility: All DSM2 and DSMX Aircraft Transmitters and Module Systems
SRXL Output
Remote Receiver ouptut
PPM ouptut

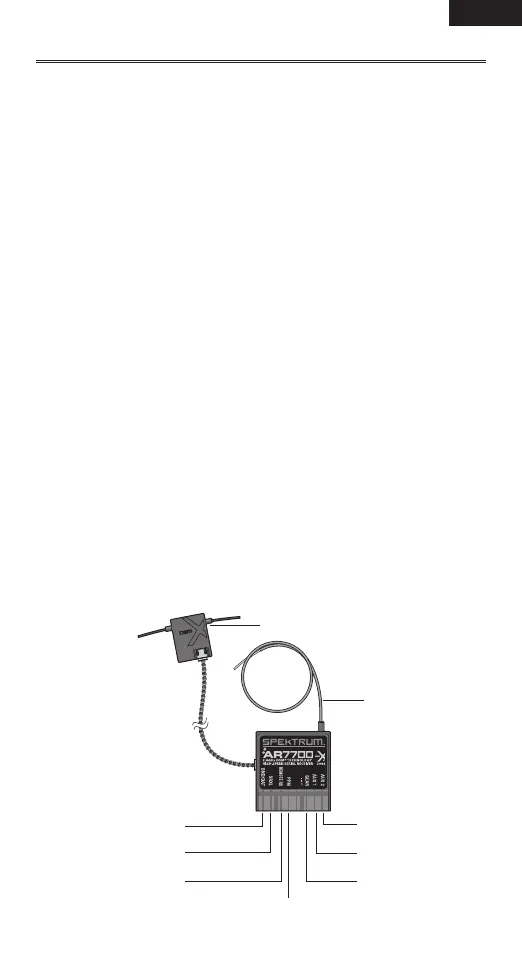

Bind/Data port
Remote Receiver
Antenna
Gear (PWM)
AUX1 (PWM)
AUX2 (PWM)
