Spektrum DX3C • Radio Instruction Manual
EN

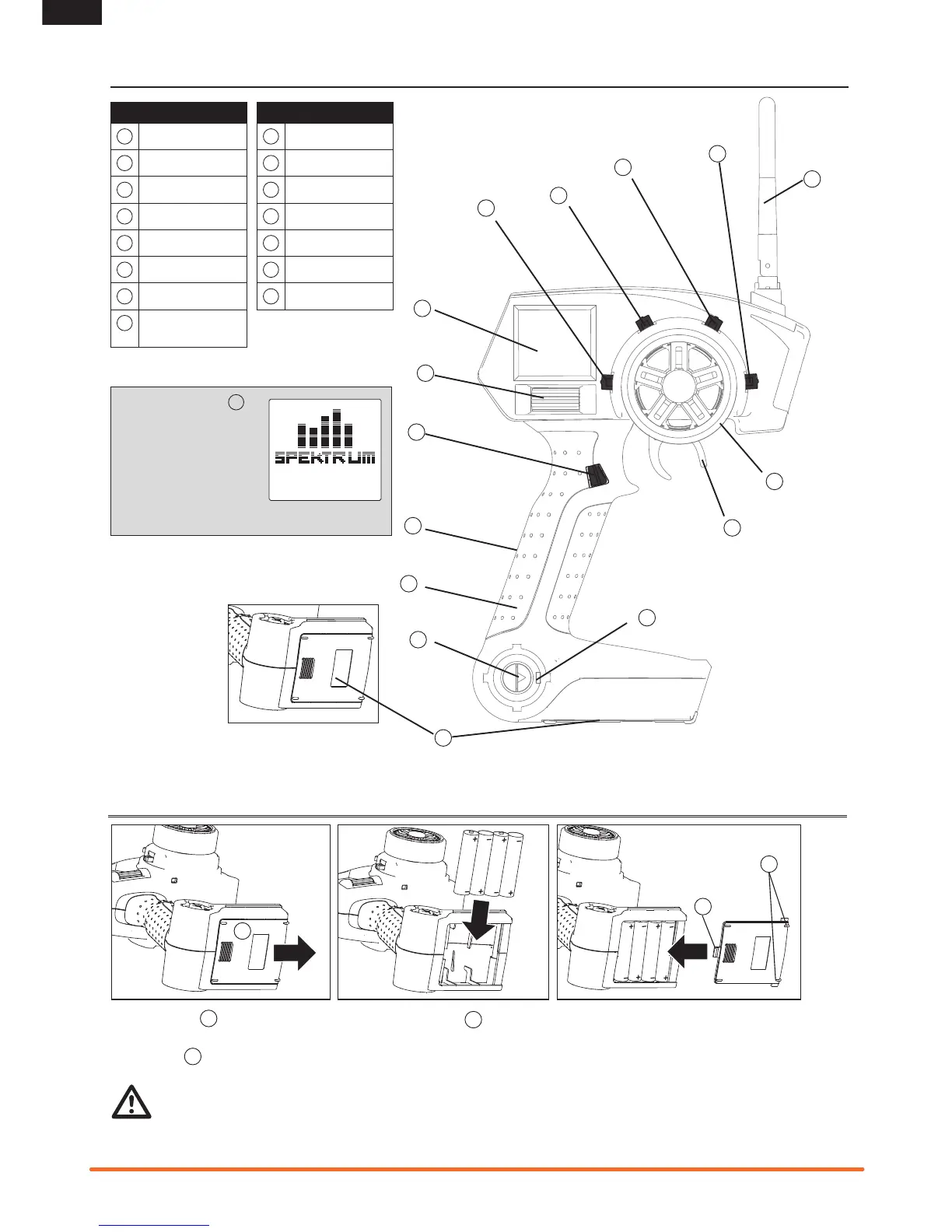

IDENTIFYING CONTROLS AND SWITCHES
Function
A
Button A
B
Button B
C
Button C
D
Button D
E
Button E
F
LCD Screen
G
Roller Selector
H
Memory Card Port
(under rubber grip)
Function
I
Rubber Grip
J
Power Switch
K
Power LED
L
Battery Cover
M
Throttle Trigger
N
Steering Wheel
O
Antenna
O
N
M
K
J
I
H
G
F
E
D
C
B
A
L
INSTALLING BATTERIES
1. Push in door a small amount to release the retaining tab , then remove door.
2. Correctly install 4 AA batteries, aligning battery polarity to diagram in transmitter’s battery case.
3. Align tabs on door with slots on transmitter and carefully install door on transmitter.
CAUTION: Do not remove transmitter batteries while model is powered on or while operating a model or loss of model
control, damage or injury can result.
C
C
A
A
B
B
Press power switch
J
to
power ON the transmitter.
The Power LED (K) will
come on, a Spektrum logo
screen will show, then the
Main Screen will show on
the LCD screen (F).
