Spektrum SR215 User Manual

EN
3

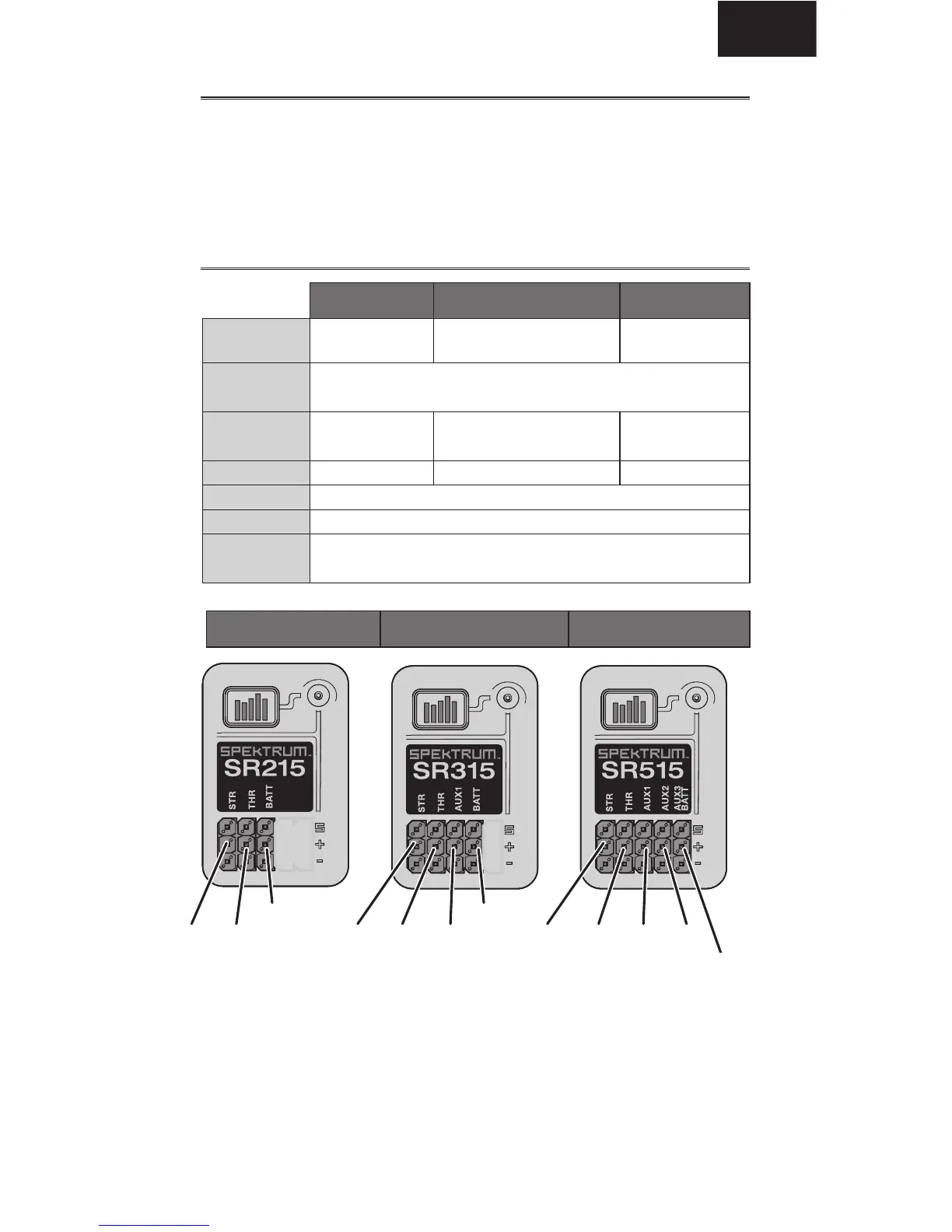

Spektrum Sport Surface Receivers
Specifi cations
The SR215, SR315, and SR515 receivers are compatible with Spektrum
DSM2
®
and DSMR
®
radio control surface systems. They are not compatible
with DSM transmitters or Spektrum aircraft systems.
For more information on Spektrum radio control system visit:
http://www.spektrumrc.com
STR STR
STR
THR THR
THR
BATT
BATT
AUX 1
AUX 1 AUX 2
AUX 3/
BATT*
*IMPORTANT: AUX 3 on the SR515 shares the servo port with the battery. A
Y harness (SPMA3008) is required on the AUX 3 port to use all 5 channels
with a receiver battery.
SR215 SR315 SR515
Type
2-Channel Sport
Receiver
3-Channel Sport
Receiver
5-Channel Sport
Receiver
Dimensions
(L × W × H)
32.5mm× 21.5mm × 13.4mm
Antenna
Length
90mm 90mm 120mm
Channels 23 5
Weight 6g
Band 2404 MHz – 2476 MHz
Voltage
Range
3.5–9.6V
SR215 SR315 SR515

Spektrum SR215 Specifications

General

Operating voltage (max)	9.6 V
Operating voltage (min)	3.5 V
Quantity per pack	1 pc(s)
Product type	Remote control receiver

Weight and Dimensions

Depth	32.7 mm
Width	21.4 mm
Height	13.6 mm
Weight	6 g
