Telemetry
The Spektrum SR4000T/SR6000T Telemetry Receiver features 4 integrated
telemetry ports that are compatible with Spektrum telemetry capable
transmitters.
The Telemetry ports include:
• Voltage
• Temperature
• RPM
• XBus Port (Connect additonal telemetry sensors)
The Spektrum SR4000T/SR6000T Telemetry Receiver has the Voltage Sensor
and the Temperature Sensors included in the box.

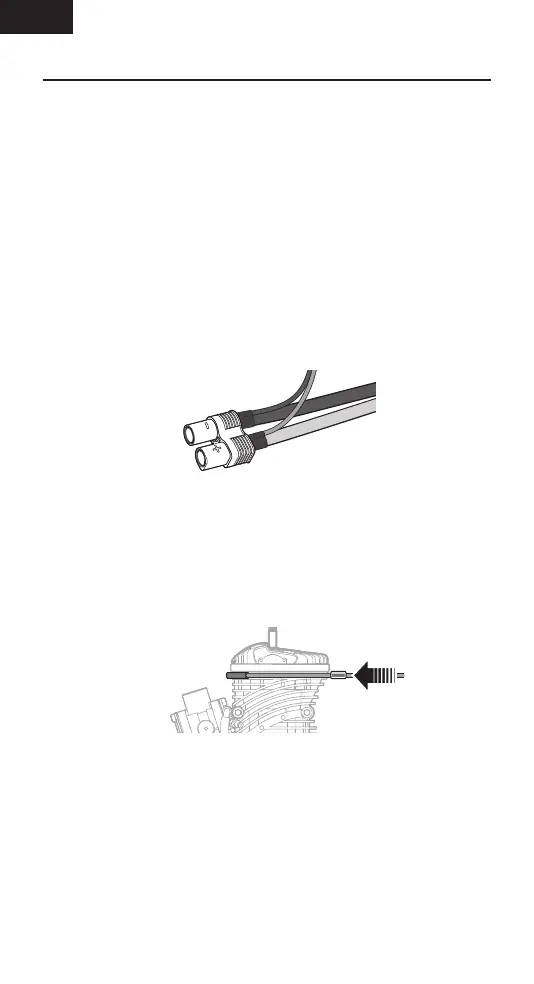

Voltage Sensor
• Plug the voltage sensor (SPMA9570) into the VOLT port on the
SR4000T/SR6000T.
• Attach the stripped end of the wire to the -Negative (Black) wire of
the voltage source. Typically, you would solder the wire to the battery
connector.
Temperature Sensor
• Plug the Temperature sensor (SPMA9571) into the TEMP port on the
SR4000T/SR6000T.
• Loop the wire around the head of a nitro/gas engine, snugging the
plastic sleeve to secure the wire. The mounting position on nitro/gas
engines will result in different temperature readings. Experiment with
different posistions on the engine head for best results.
• Loop the wire around a battery pack or electric motor and secure in
place with tape.
For information on installing other Spektrum Telemetry Sensors visit
http://www.spektrumrc.com
