Titmus V4 / Titmus V2

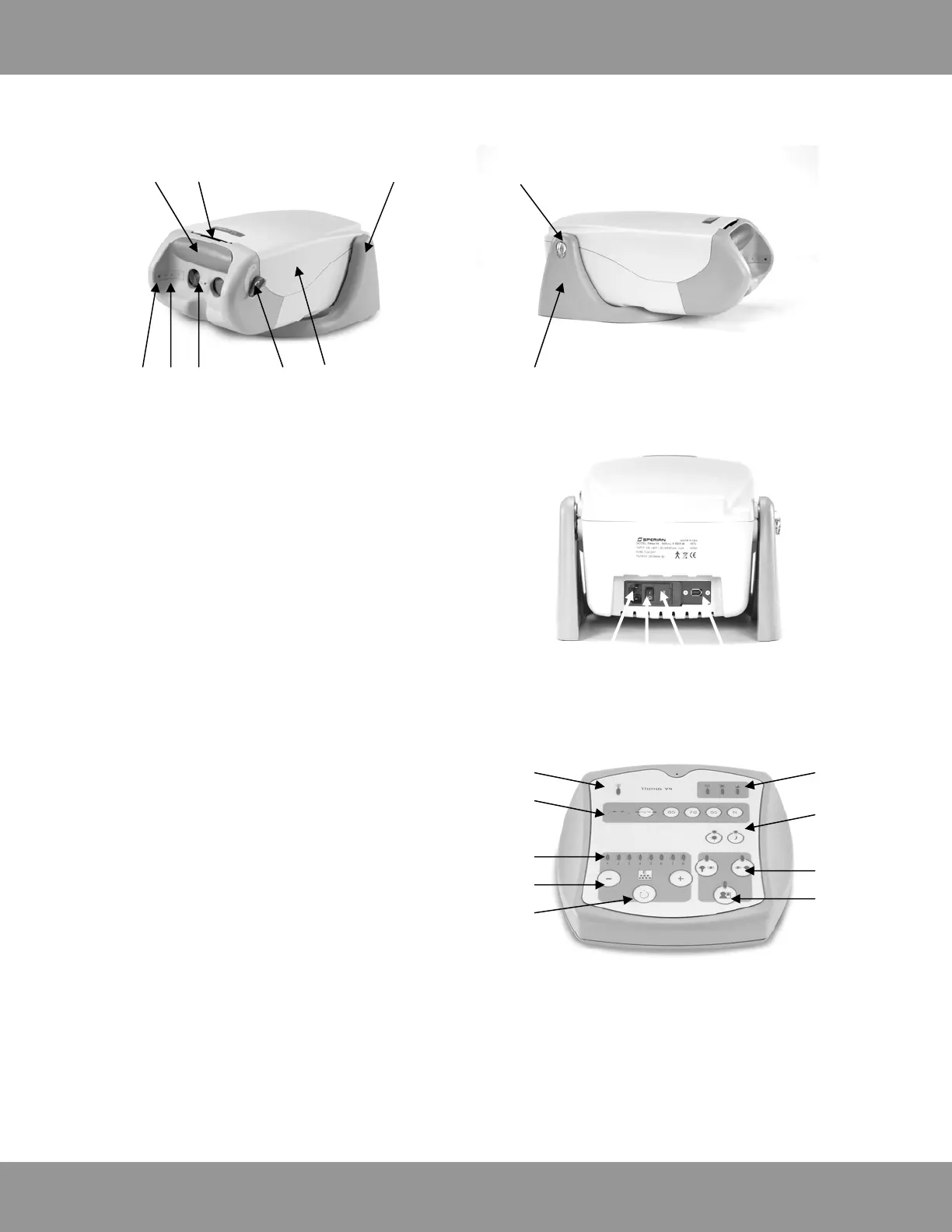

Titmus V4 External Features
Front / Side/ Rear View
A Removable cover for access to slides and light source
B Lever for far/near lenses
C Vision screening at far (20’) and near (14”)
D Peripheral vision test lights
E Head sensor to detect correct positioning
F Comfortable foam headrest
G Slots for intermediate/plus lens
H Base of instrument
I Base unlock clip to move unit into open position
J Plug-in for power cord
K On/off switch
L Fuse holder
M Plug-in for control panel cord
Control Panel
N Light source condition
O Test distance - near, intermediate or far
P Peripheral vision screening
Q Day or night illumination condition
R Test Slide position
S Test Slide advance/reverse
T Reset control panel
U Occlude each eye, light ON indicates eye being tested
V Head position indicator/sensor deactivate
A B C D E
F G H
H
I
J K L M
N O
P
R
S
T
U
V
