Sphere Touch Control Rangehood November 2013
INSTALLATION:
Note:
When installing Rangehood into a Recreational Vehicle, ensure that it is fitted in
accordance to all Australian Standard requirements
The Sphere touch control Rangehood can be installed using 2 different methods.

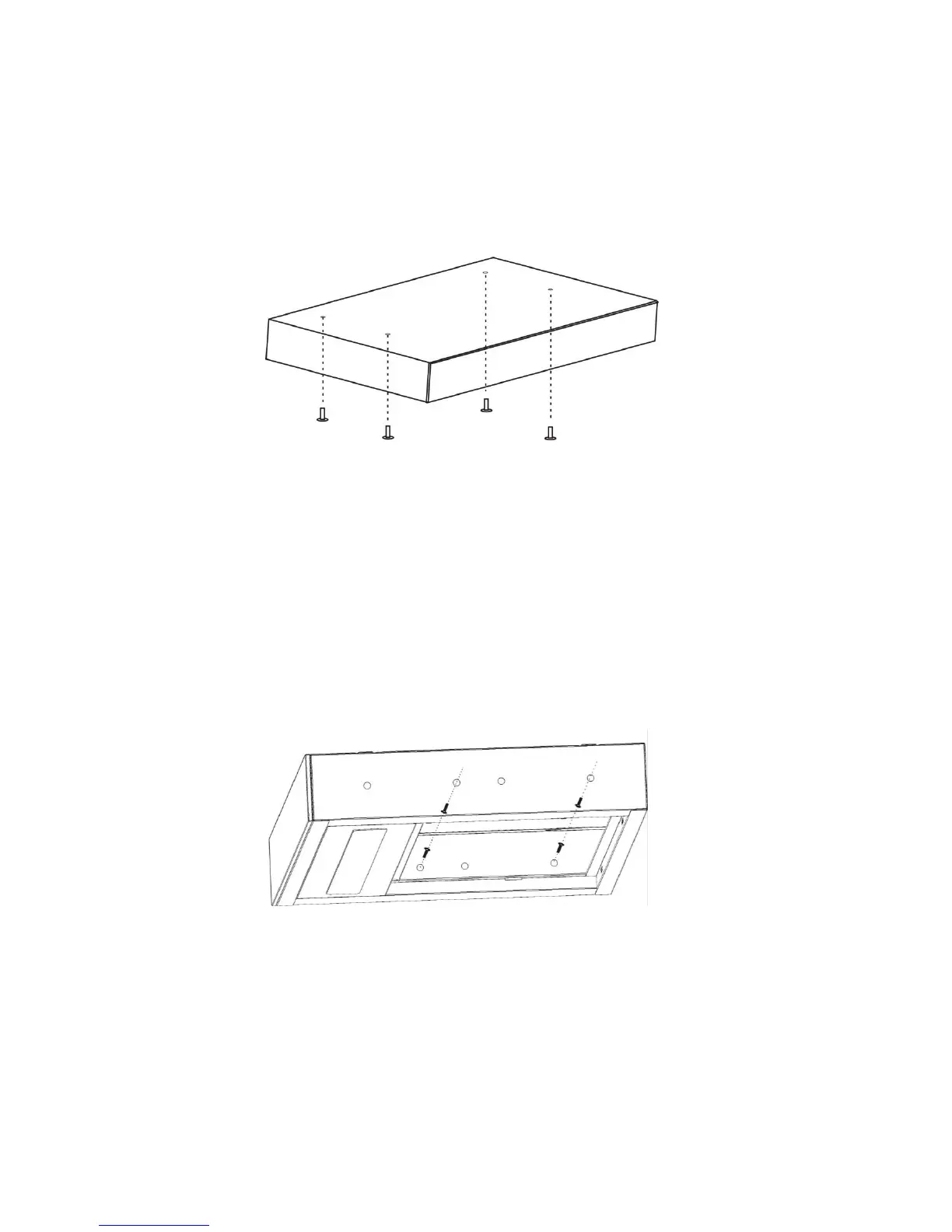

Option 1. Top Mounting
Steps: (Hole cut out made to the specified sizing)
1. Remove filter to access to pre punched screw locating holes in the top of the Rangehood
2. Connect wires to the 12volt power source (Wires labelled +/- please ensure wires are
connected the correct way)
3. Lift Rangehood into designated position
4. Mount using 4 only SS screws into pre punched locating holes (Shown above)
5. Install filter
6. Test Rangehood and ensure unit is working correctly
Option 2. Side Mounting
Steps: (Hole cut out made to the specified sizing)
1. Remove filter to access to pre punched screw locating holes in the top of the Rangehood
2. Connect wires to the 12volt power source (Wires labelled +/- please ensure wires are
connected the correct way)
3. Lift Rangehood into designated position
4. Mount using 4 only SS screws into pre punched locating holes (Shown Above)
5. Install filter
6. Test Rangehood and ensure unit is working correctly
