Sphere TCR-001 User Manual

Sphere Touch Control Rangehood November 2013

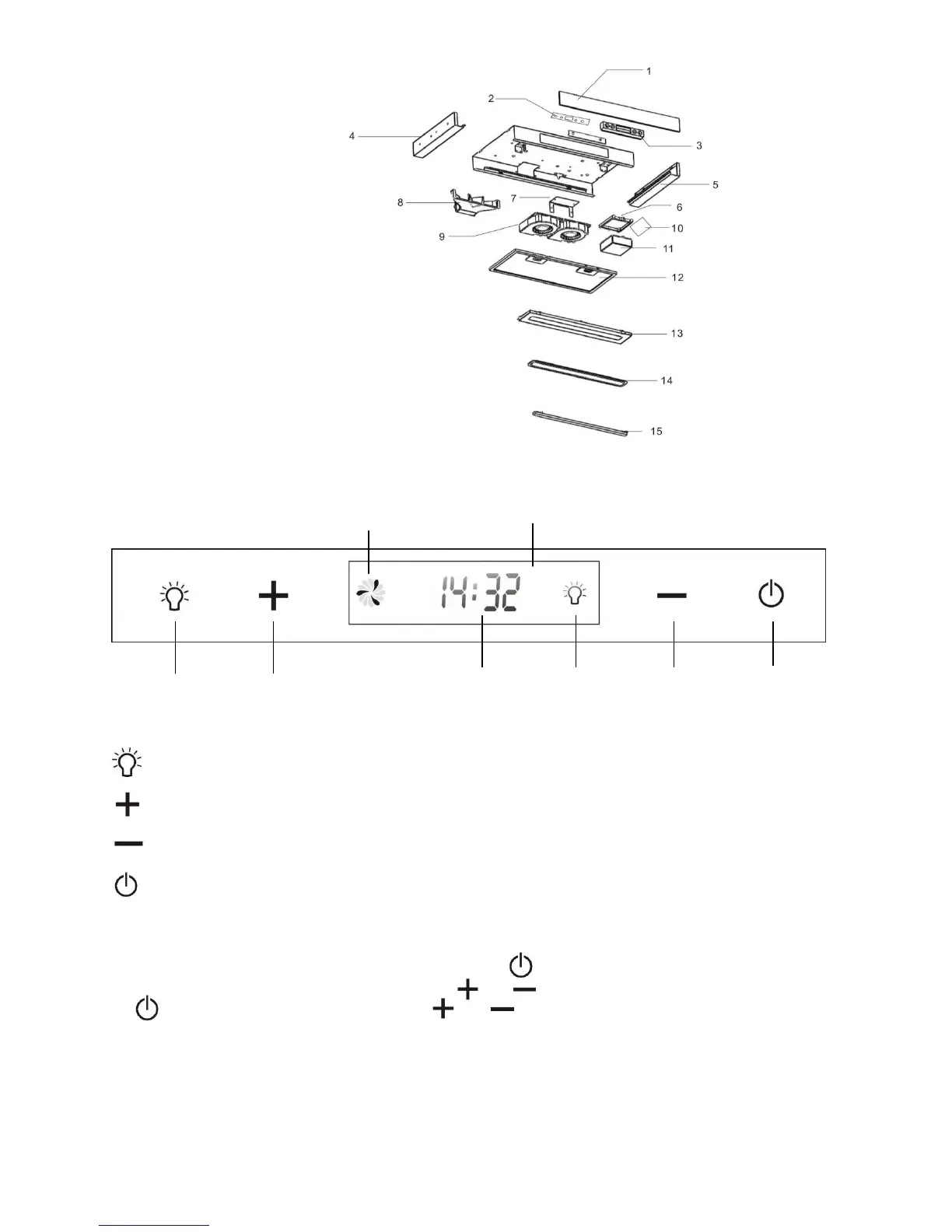

PART NAMES:
1. Tempered glass
2. Switch
3. Switch box
4. Left panel
5. Right panel
6. PCB box base
7. Vent duct plate
8. Air flu
9. Air housing
10. PCB
11. PCB box
12. Filter
13. Light panel
14. Light cover
15. LED Light
CONTROL PANEL OPERATION:
: Control the light on and off
: Speed up and time setting
: Speed down and time setting
: Power on/off
How to set the clock:
When the hood is on standby status, Press the key for 3 seconds to enter the clock setting,
the Clock indicator are flicking, press the key or to set the hour. Then press again the
key move to the minute setting, press or to set the minute. The machine will
automatically confirm if without any operation in 3 seconds.
Note: Each time the rangehood connects to the power supply, the clock indicator just
show 00:00.
Display Panel
3 Speed Fan Indicator
Light
Speed up and
time setting
Clock indicator
Light indicator
Speed down and
time setting
On/off

Sphere TCR-001 Specifications

General

Brand	Sphere
Model	TCR-001
Category	Ventilation Hood
Language	English
