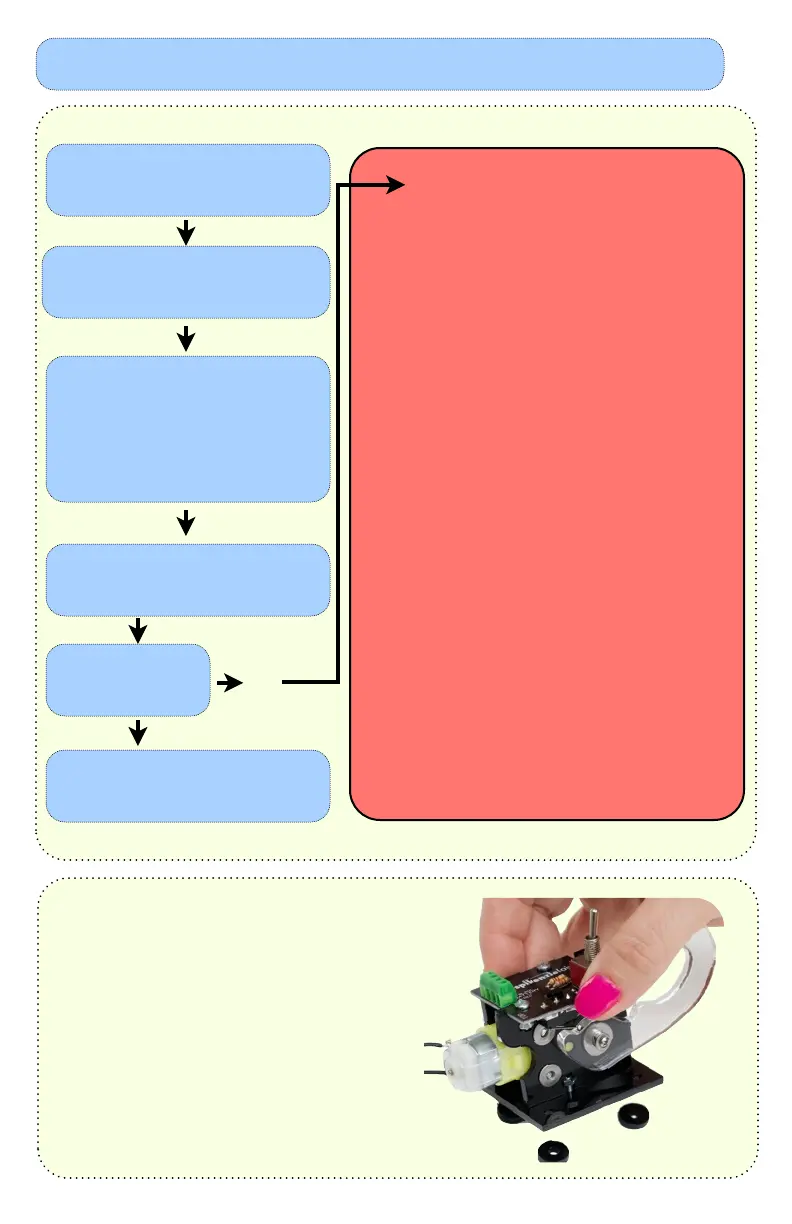

Motor and wiring testing flowchart
Flip switch - away from arm
Install batteries
Arm should move down
(If not already in
the down position)
Flip switch - towards arm
Works well?
Continue to next step
No
Yes
Troubleshooting
No movement at all:
- Check batteries.
- Verify black goes to (-) and red to
(+) on the PCB assembly.
- Make sure bare wire is making
contact in each of the screw
terminals, and not the plastic
covering.
Arm moves the wrong way:
- Switch the position of the two wires
from the motor going to the screw
terminals on the PCB assembly
After troubleshooting, test with this
flowchart once again.
No
There are four mounting holes on the base to
mount the mechanism into the box you create.
We included four 1/8” washers so that if
required, the base can be bolted down inside
your box .
Arm does not toggle the switch:
- Loosen the 2x 1” screws that go
through the motor and mount a little.
