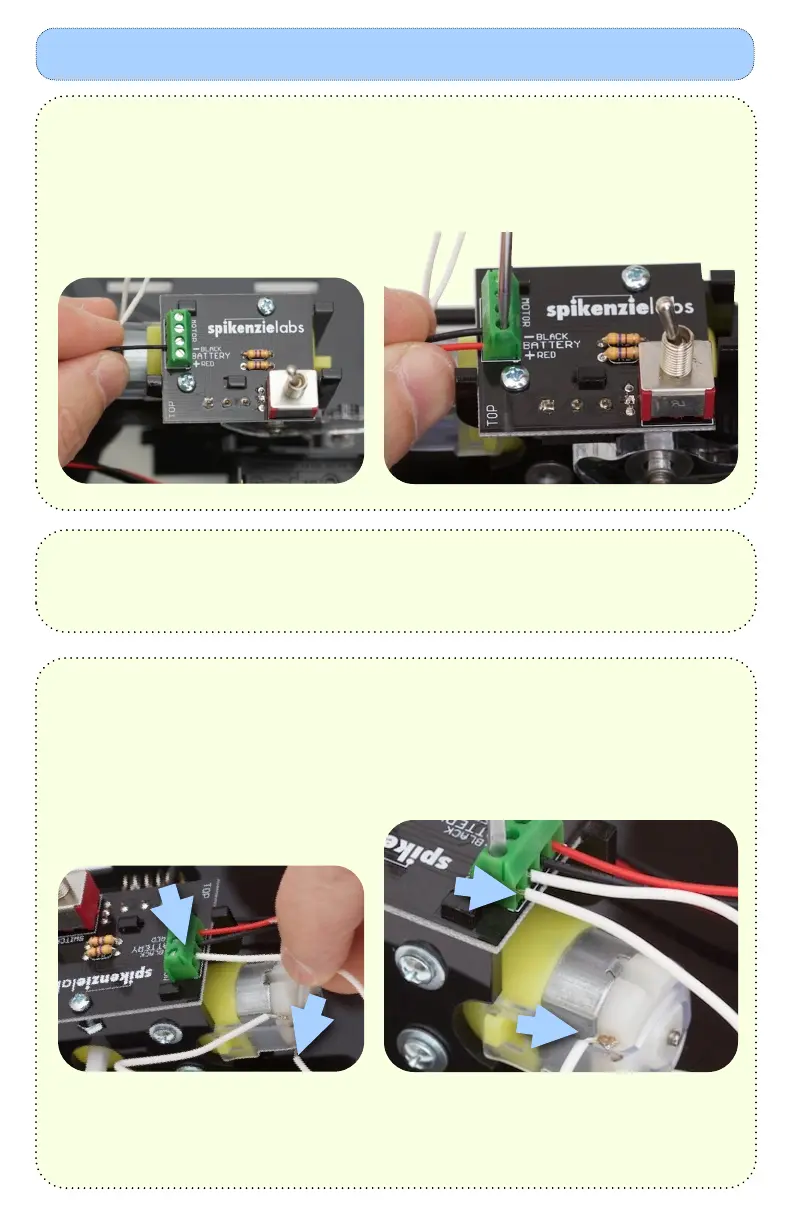

Attaching the wires
To attach the wires, you will need a
small flat blade screwdriver. Start by
sliding the black wire from the battery
pack in to the screw terminal marked
-BLACK on the PCB.
The red wire from the battery pack goes
to the +RED screw terminal. Screw both
in place.
Note: Make sure to tighten the screw terminals onto the bare wire, and not the colored
plastic casing. You may have to loosen the screw terminal in order to get the wire in.
The bottom wire coming off the motor
goes beside the black wire. Handle
these wires carefully, the terminals on
the motor are not very robust.
Slide in and screw down the wire.
The top wire from the motor connects to
the last screw terminal. Slide it in place,
and screw it down.
