Spimbey 2001 - Assemble Beams (Step 10)

224 X 1
Parts Required:

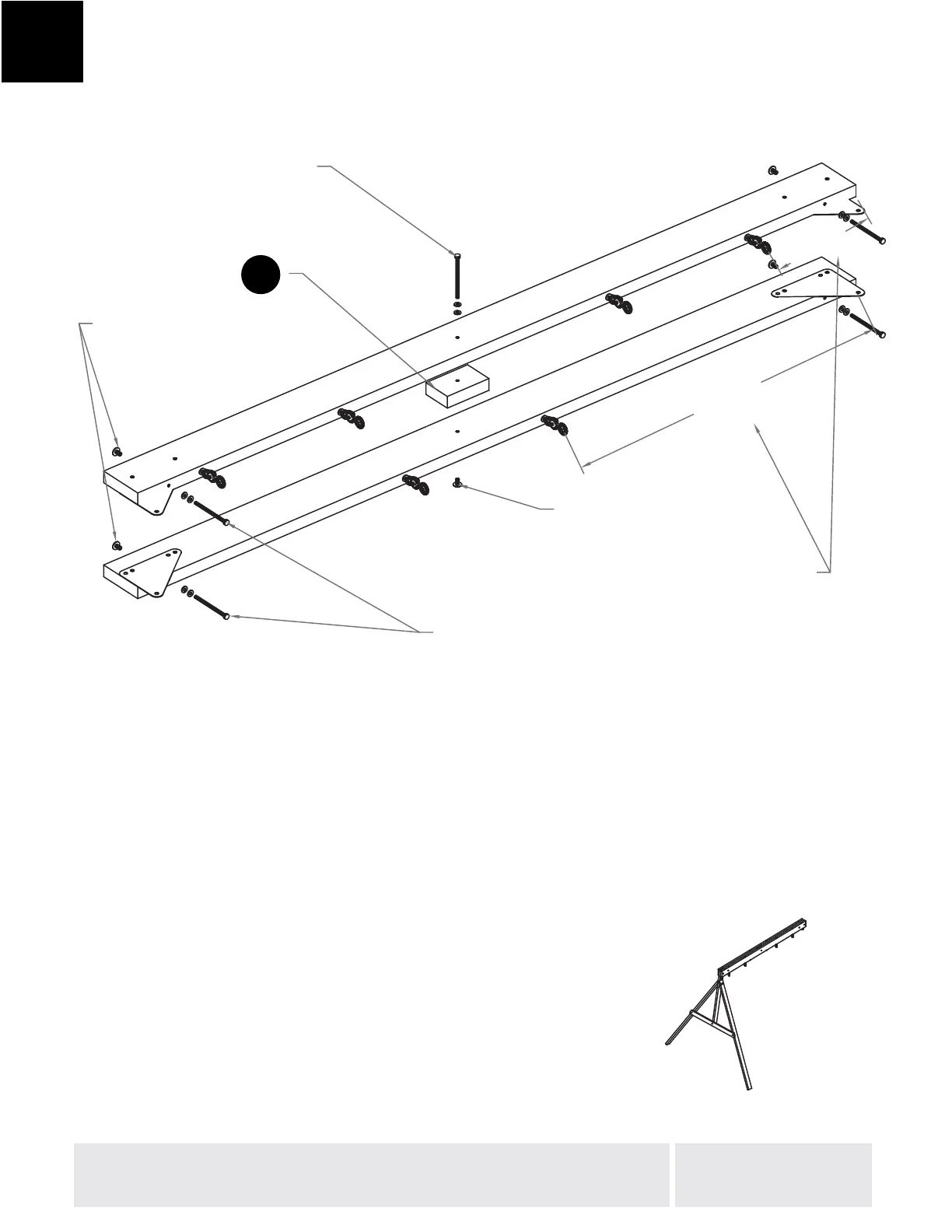

ASSEMBLE BEAMS
10
1/4 x 4.25” Hex Bolt X1
1/4 Local Washer X1
1/4 Flat Washer X1
Note hole locations
1/4 T-Nut X1
From this side
1/4 x 5.50” Hex Bolt X1
1/4 Lock Washer X1
1/4 Flat Washer X1
From this side in end holes X4
40.19” [102.1]
14.00” [35.6]
1/4 T-Nut X1
From this side in end holes X4
224
1. Locate and install parts as shown.
Add extra washer if needed
for proper engagement with T-Nut
