Spimbey 2001 - Beam Plates (Step 9)

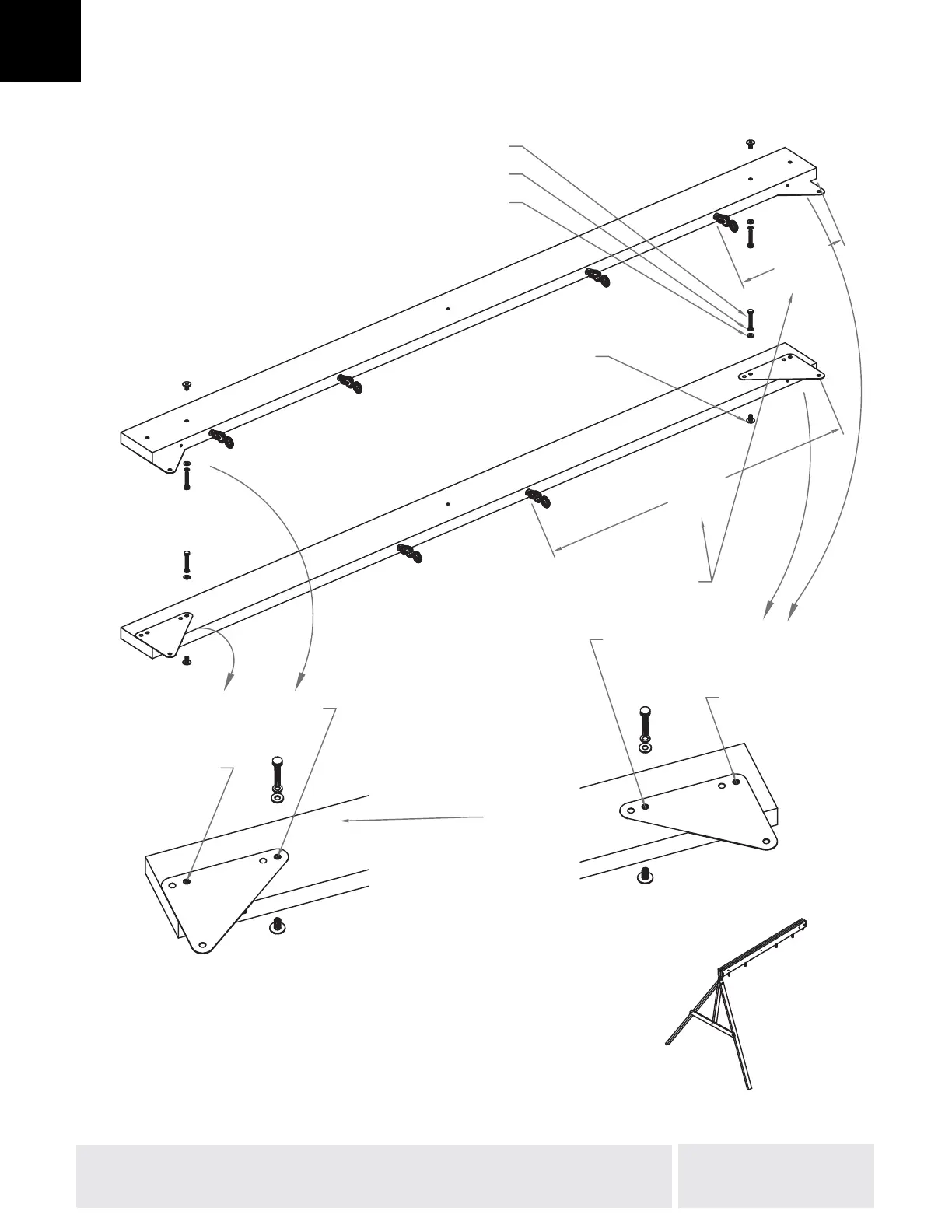

1. Locate and install parts as shown.
Parts Required:
300 Plate X4
BEAM PLATES
9
5/16 x 1.50” Hex Bolt X4
5/16 T-Nut X4
Note hole locations
Important - insert bolt into INSET hole
in plate and hole in beam X2
Important - insert bolt into END hole
in plate and hole in beam X2
This hole lines up with
hole in beam
Plate #300
X4
This hole lines up with
hole in beam
14.00”
[35.6]
40.19”
[102.1]
5/16 Lock Washer X4
5/16 Flat Washer X4
