ROOF
14
1. Assemble roof panels as shown.
2. Two people required to avoid damaging roof panels.
Parts Required:
ROOF 1 X4
#8 x 3/4" Truss Head Screw
X4

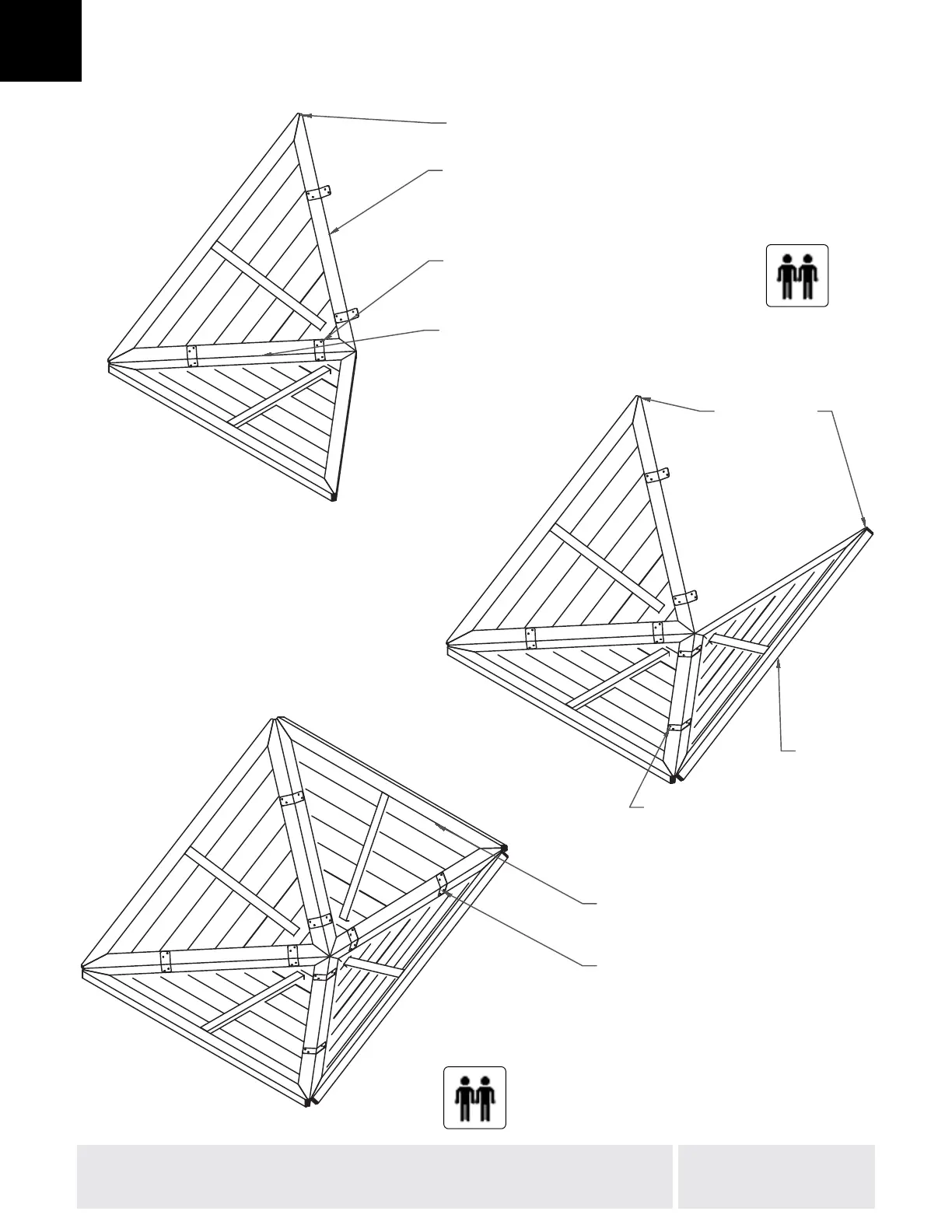

STEP 1 - Attach roof panel with (2) two pre-installed
brackets. Hint - Additional person required to support
assembly or rest assembly against playset.
STEP 2 - Attach
roof panel
Support both
ends of roof
STEP 3 - Attach last roof assembly
STEP 4 - Turn roof assembly over for attaching to hut walls
#8 x 3/4" Truss Head Screw
X4
#8 x 3/4" Truss Head Screw
X8
Support here
Keep frame tight along adjacent frame
the entire length
10 ROOF
1. Assemble roof panels as shown.
2. Two people required to avoid damaging roof panels.
Parts Required:
ROOF 1 X4
To Next Page
