ROOF
15

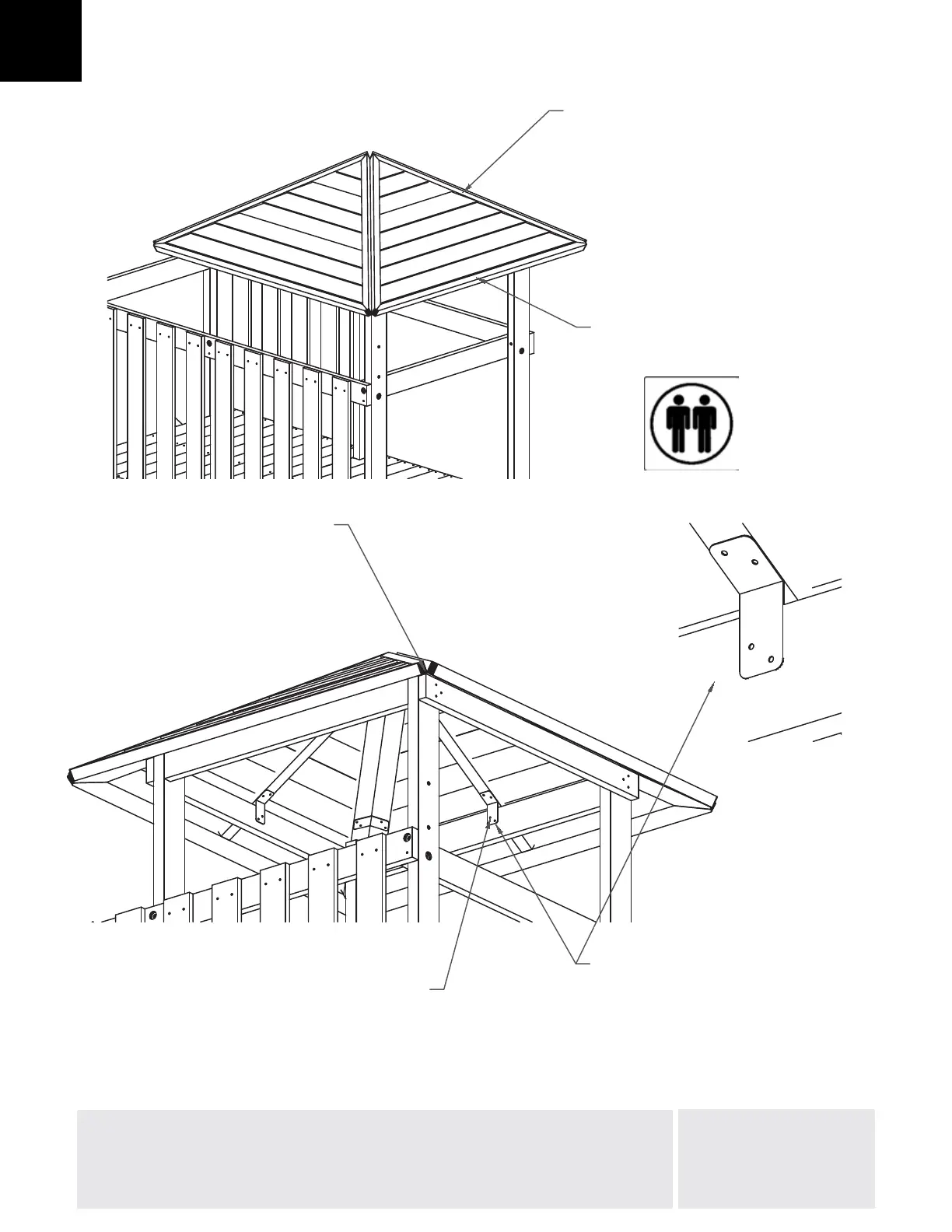

1. TWO PEOPLE required to lift and rest roof onto the playset uprights.
2. Attach roof assembly to playset as shown.
3. Hint - apply a an exterior rated caulk on the seams of the roof to make the roof
watertight
Parts Required:
303 Bracket X4
#8 x .75 Truss Head Screw X16
All corners of the uprights should be inline
with the seam in the roof panel frame when
the roof assembly is resting on the playset
Two people required to lift and place
the roof assembly onto the playset.The roof
will rest on the corners of the playsetXSULJKWV
303%UDFNHW;
From under the roof, locate bracket
against the roof brace and braces.
Attach as shown at (4) four locations
(Note: The roof will remain resting on
the four XSULJKWcorners)
HINT - FOR A WATERTIGHT SEAL, USE A
EXTERIOR RATED CAULK ALONG THE
SEAMS IN THE ROOF
