Spimbey 2004 - Swing Beam System Assembly

40.19"
[102.1]
14.00" [35.6]
Install swing hangers into (6) holes as shown
5
16
Lock Nut
5
16
Flat Washer X2
Orient swing hangers
to swing as shown
Note the hole location in both
beams for correct orientation
SWING HANGERS
SWING HANGERS
15

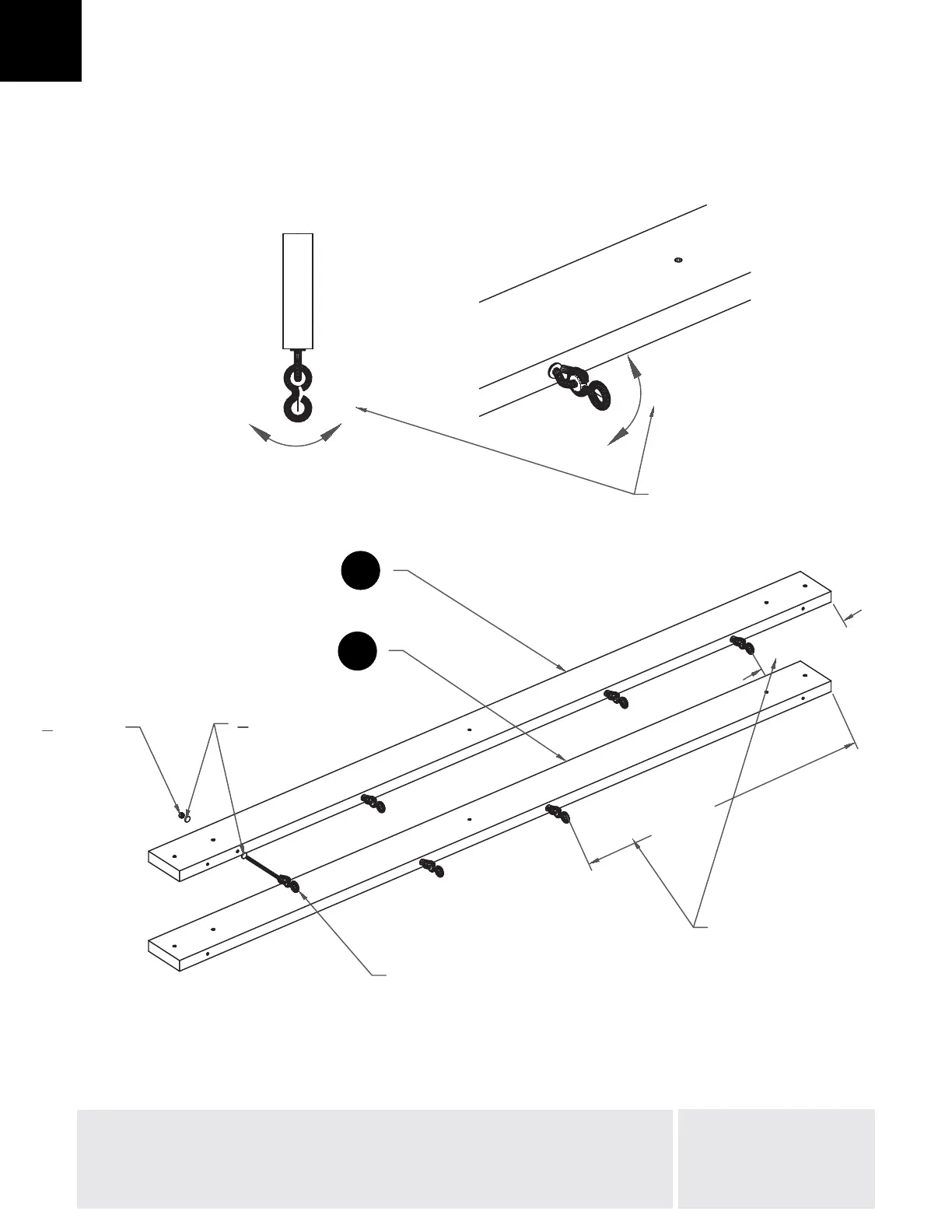

1. Locate and install parts as shown.
2. Make sure to orient hangers as shown.
Parts Required:
220 X1
221 X1
Swing Hangers X6
220
221
