20

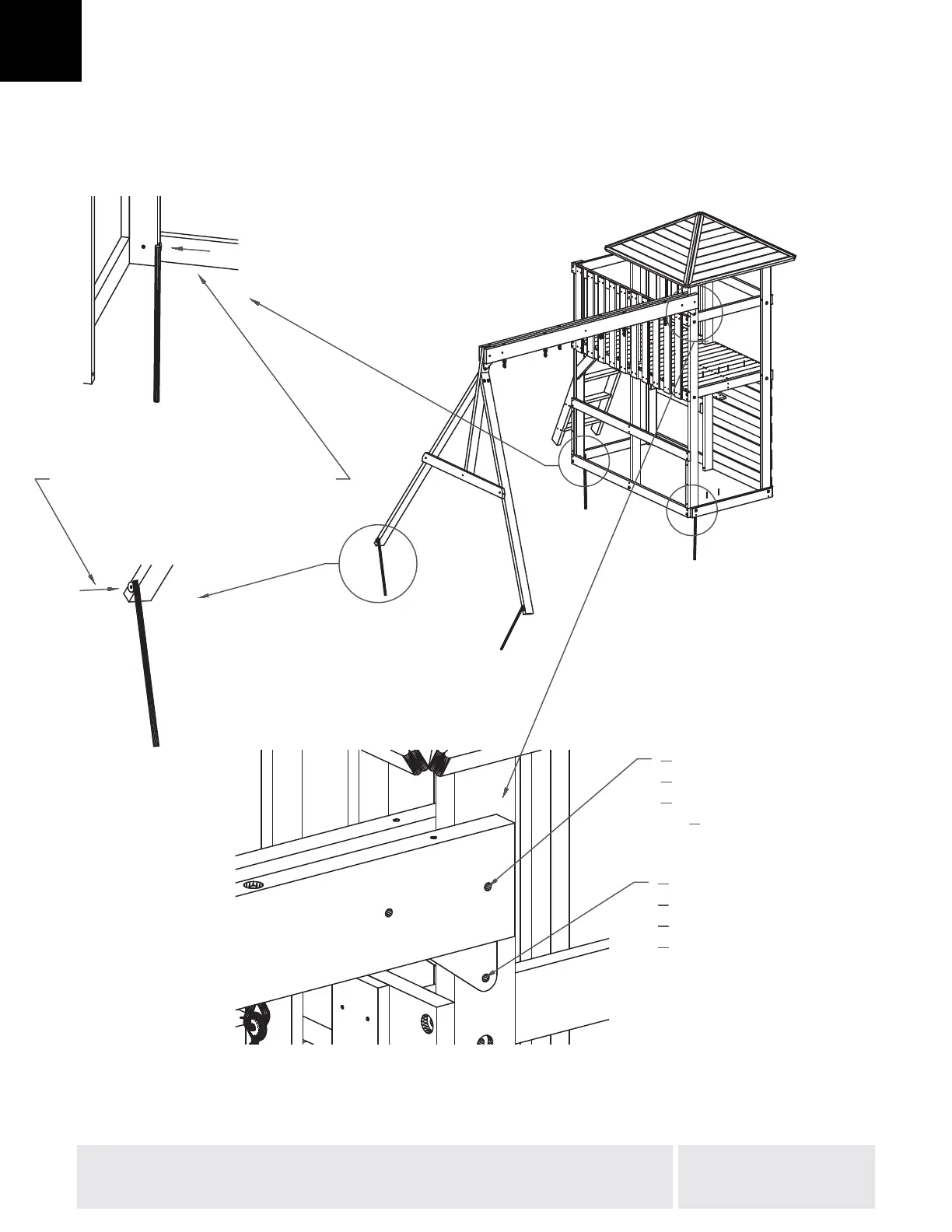

1. Locate the swing beam assembly to the upright and attach as shown.
2. Install the (4) ground anchors at locations shown.
Parts Required:
Swing Beam Assembly X1
309 Ground Anchors X4
SWING BEAM
1. Locate the swing beam assembly to the upright and attach as shown
2. Install the (4) ground anchors at locations shown.
Parts Required:
Swing Beam Assembly X1
309 Ground Anchors X4
5
16
x 4.25" Hex Bolt
5
16
Flat Washer
5
16
Lock Washer
and
5
16
T-nut on opposite side.
5
16
x 2.00" Hex Bolt
5
16
Flat Washer on one side.
5
16
Flat Washer and
5
16
lock nut on opposite side.
Attach anchors using 2.00" Pan Head
Screw (in anchor bag) in direction shown
IMPORTANT: ENSURE
THREADS ARE FLUSH OR
EXTEND PAST LOCK NUT
To Next Page
