ACCESSORIES - SLIDE

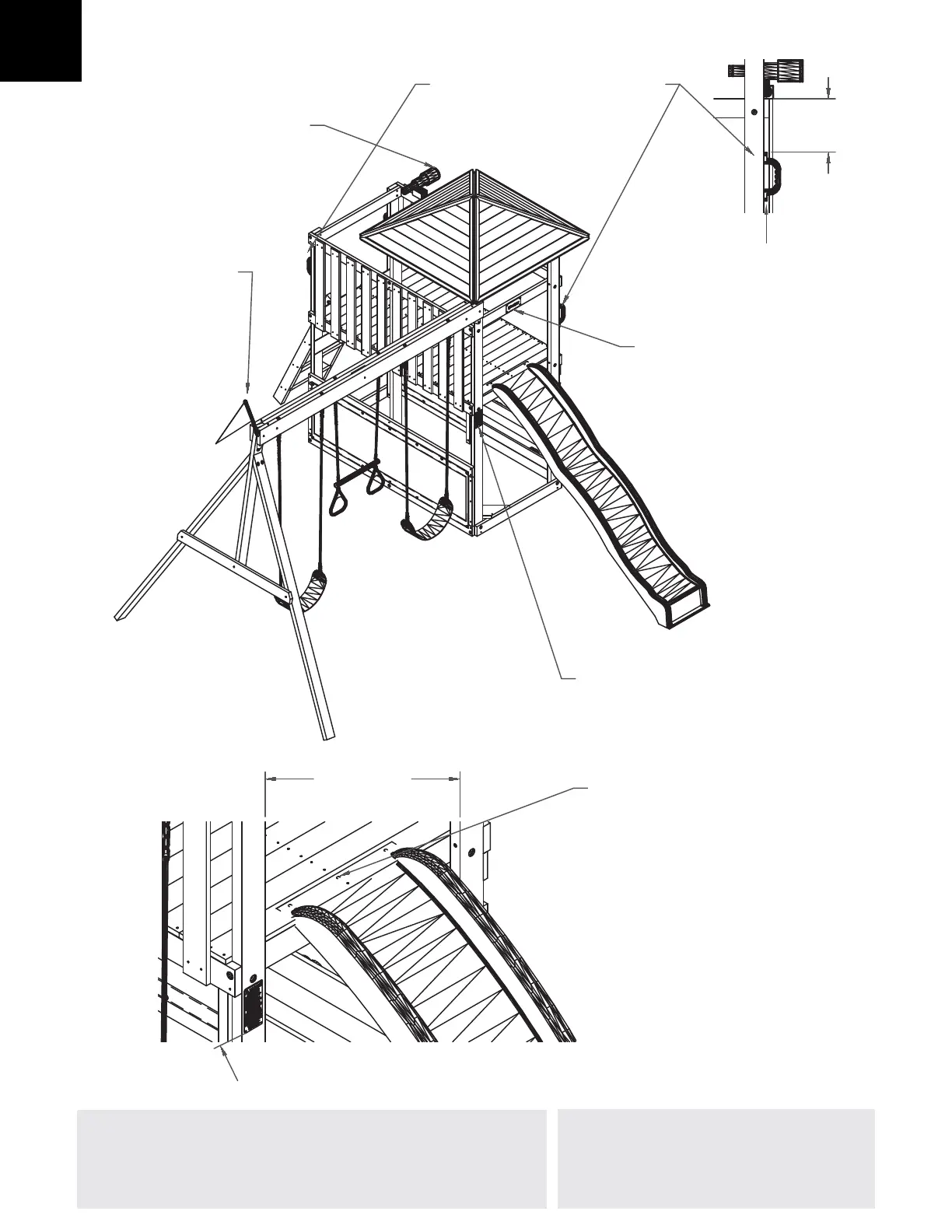

1. Locate and install slide, plates and accessories as shown.
Parts Required:
Slide X1 314 Logo Plate X1
Assist Handles X4 Flag X1
313 Warning Plate X1 Telescope X1
Locate slide 3.00" [7.6] onto deck,
attach using #8 x 1.38" Wood Screws X3
Locate flag base on
end of beam. Attach using
1.00" screws X2 in flag bag
Locate telescope on any top rail.
Do not install over an opening.
Attach using screws in telescope bag
38.00 [96.5]
From Ground
Attach Warning Plate using screws
in plate bag at location shown
Center Logo Plate in opening and
attach using screws in plate bag
9.500 [241.3]
Locate assist handle centered on
upright and 9.50 [241.3] down
from rails at (4) locations
Center slide
in opening
1. Locate and install slide, plates and accessories as shown Parts Required:
Slide X1
Assist Handles X4
313 Warning Plate X1
314 Logo Plate X1
Flag X1
Telescope X1
Attach using screws
in handle bag
To Next Page
