6

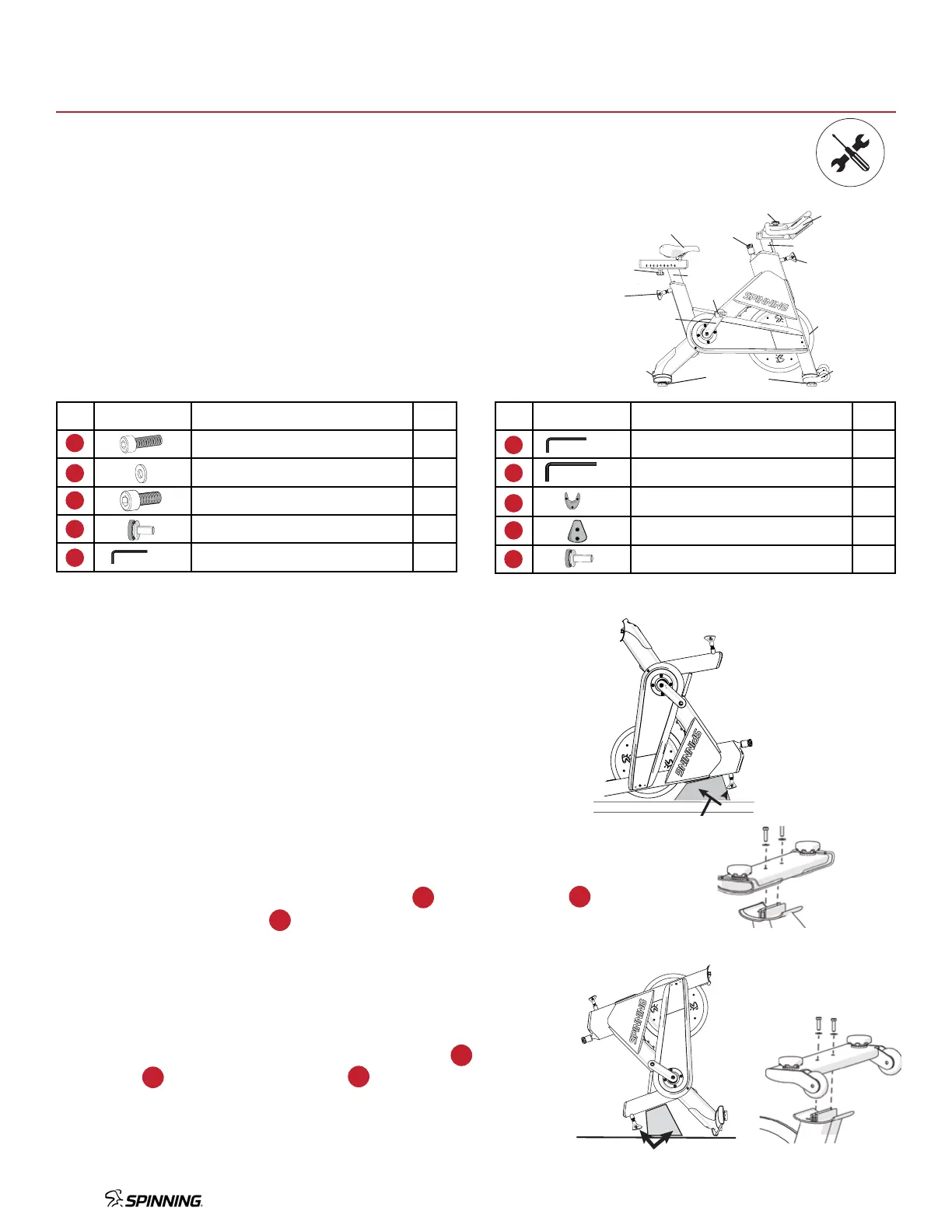

Assembly Guide
To assemble the Spinner
®
NXT, follow the steps in the order listed in this
assembly guide. For more product information, visit us at www.spinning.com.
WARNING: At least two people are required to assemble the equipment.
DO NOT attempt assembly by yourself.
Assembly Requirements
When assembling the bike, we recommend you:
Assemble the equipment close to where you plan to use it.
Assemble the equipment on a solid, flat surface, so that it remains level
and stable.
Leave a minimum of 0.5 m (19.7 in.) on at least once side of the bike
and 0.5 m (19.7 in.) behind or in front of the bike.
Hardware Kit
Seat assembly
Handlebar
assembly
Rear
stabilizer
Bike frame
Seat post
Handlebar post
Front
stabilizer
Pedal
Seat adjustment
pop-pin
Handlebar
adjustment
pop-pin
Seat
slider knob
Fore/aft handlebar
knob
Resistance
knob
Flywheel
Adjustment feet
Crank arm
Figure 1
Figure 3 Figure 4
Figure 2
1
Component Qty.
6 mm hex key
1
8 mm hex key
1
Seat slider end cap
1
Handlebar post end cap
1
Crank bolt (M8 x 20mm, long)
1
1
7
2
8
3
9
4
5
6
Begin Assembly
Remove the following parts from the packaging: handlebar assembly,
hardware kit, stabilizers, product documentation, seat assembly, and spare
parts.
CAUTION: Damage to the bike during assembly is not
covered by the Spinning
®
Limited Warranty.
During assembly, you must protect the handlebar
and seat adjustment pop-pin threaded stems from damage.
To attach the rear stabilizer:
1. Stand the bike frame on its front end (toward flywheel) and cushion the
bike frame (Figure 1) with a towel or piece of foam to protect the handlebar
adjustment pop-pin stem from damage.
2. Remove the packaging from the rear stabilizer and gently pry o the
plastic protection plate from the frame. Be careful not to chip the paint.
3. Attach the rear stabilizer to the frame using two bolts and two flat washers
(Figure 2). Using a hex key , tighten to 15.6ft-lb (21.2 N-m).
To attach the front stabilizer:
1. Stand the bike frame on its back end and place a towel or other cushioning under
the bike frame (Fig. 3) to protect the seat adjustment pop-pin from damage.
2. Remove the packaging from the front stabilizer and gently pry o the
plastic protection plate from the frame. Be careful not to chip the paint.
3. Attach the front stabilizer to the frame using two bolts and two flat
washers (Figure 4) Using a hex key , tighten to 15.6 ft-lb (21.2 N-m).
4. Return the bike to the upright position.
Component Qty.
Socket head bolt (M8 x 20 mm)
4
Flat washer (8 mm)
4
Socket head bolt (M3 x 8 mm)
7
Socket head bolt (M8 x 16 mm)
2
2.5 mm hex key
1
2
5
2
1
5
10
