LSB31, LSB32, LSB33, LSB34, LSB71, LSB72, LSB73 and LSB74 Limit Switch Boxes for BVA300 Series Actuators

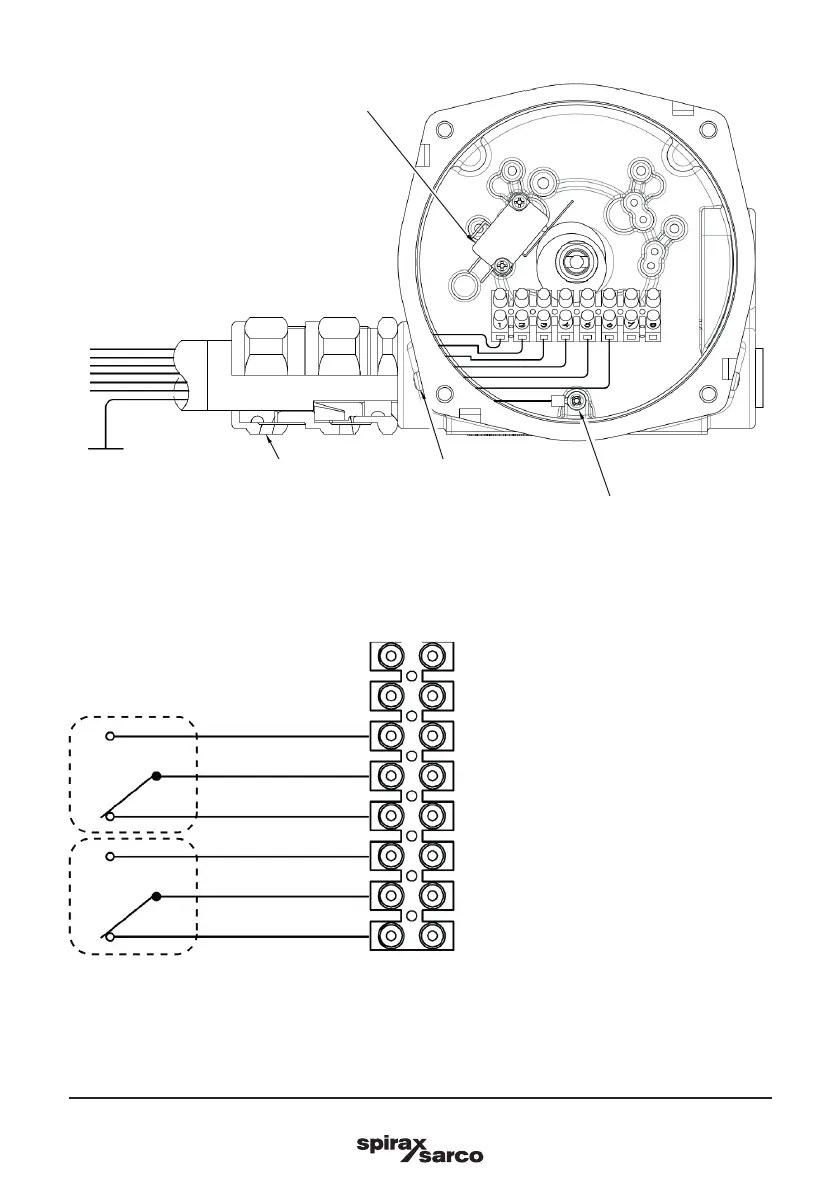

Fig. 4 LSB71
(for other sensors contact Spirax Sarco)
SPDT Limit switch
Input signal
Max 300 Vdc/Vac
Ground
Approval
cable gland
Earth (external)
Earth (internal)
Screw : M4 x 6L with M4 spring washer
Use crimp terminal
Minimum size : 1 mm
2
wire
SPDT2 "NO"
SPDT2 "C"
SPDT2 "NC"
SPDT1 "NO"
SPDT1 "C"
SPDT1 "NC"
8
7
6
5
4
3
2
1
