IM-P357-29 CTLS Issue 14
36
5.8 PN9100RH, PN9200RH and PN9300RH (handwheel) with
exception to the PN9400RH:
Note: Ensure that the handwheel has no compressive load on the actuator springs
-
With due allowance for the additional weight all servicing can be carried out as detailed
in Section 5.3. The handwheel assembly can be left attached to the upper housing.

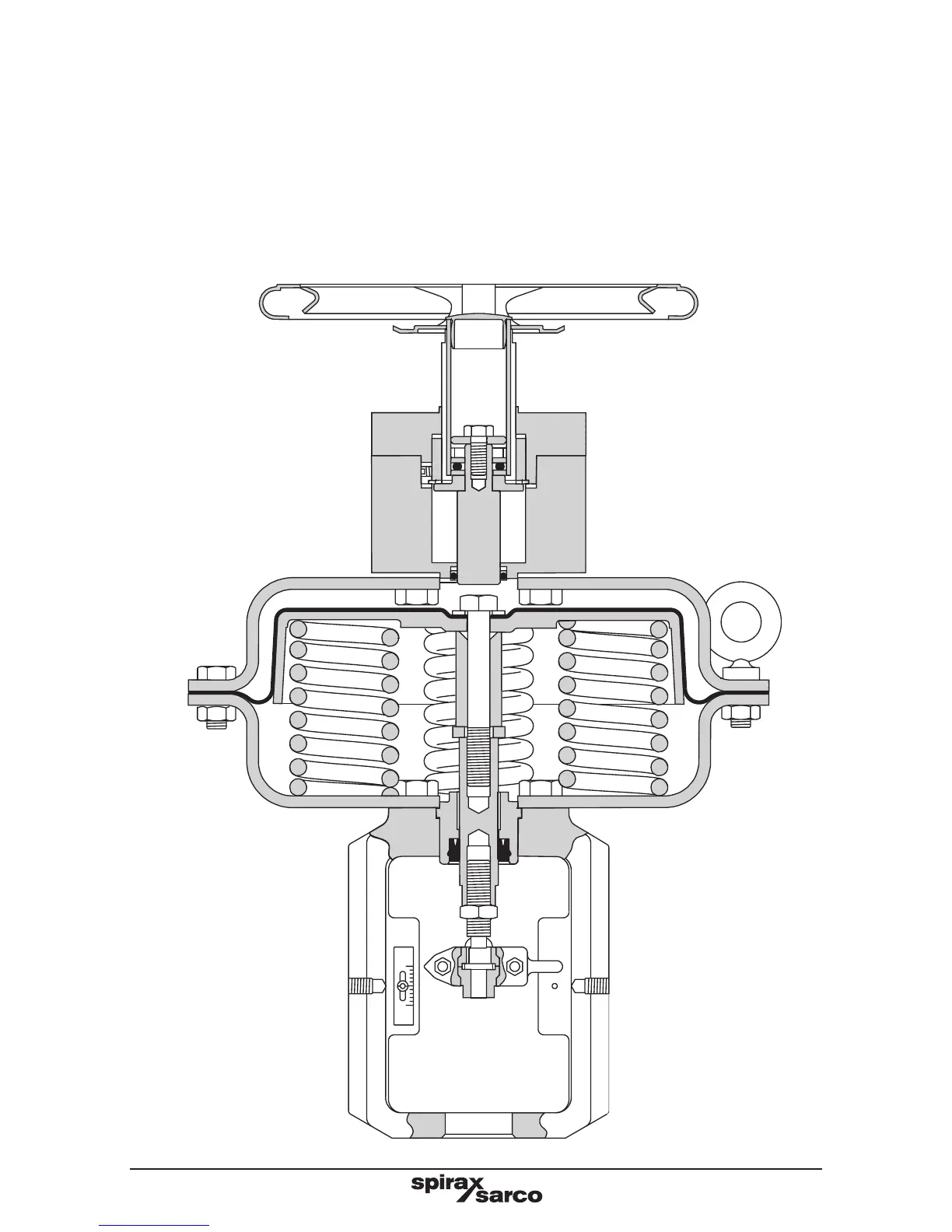

Fig. 20
