5
Glide Trainer

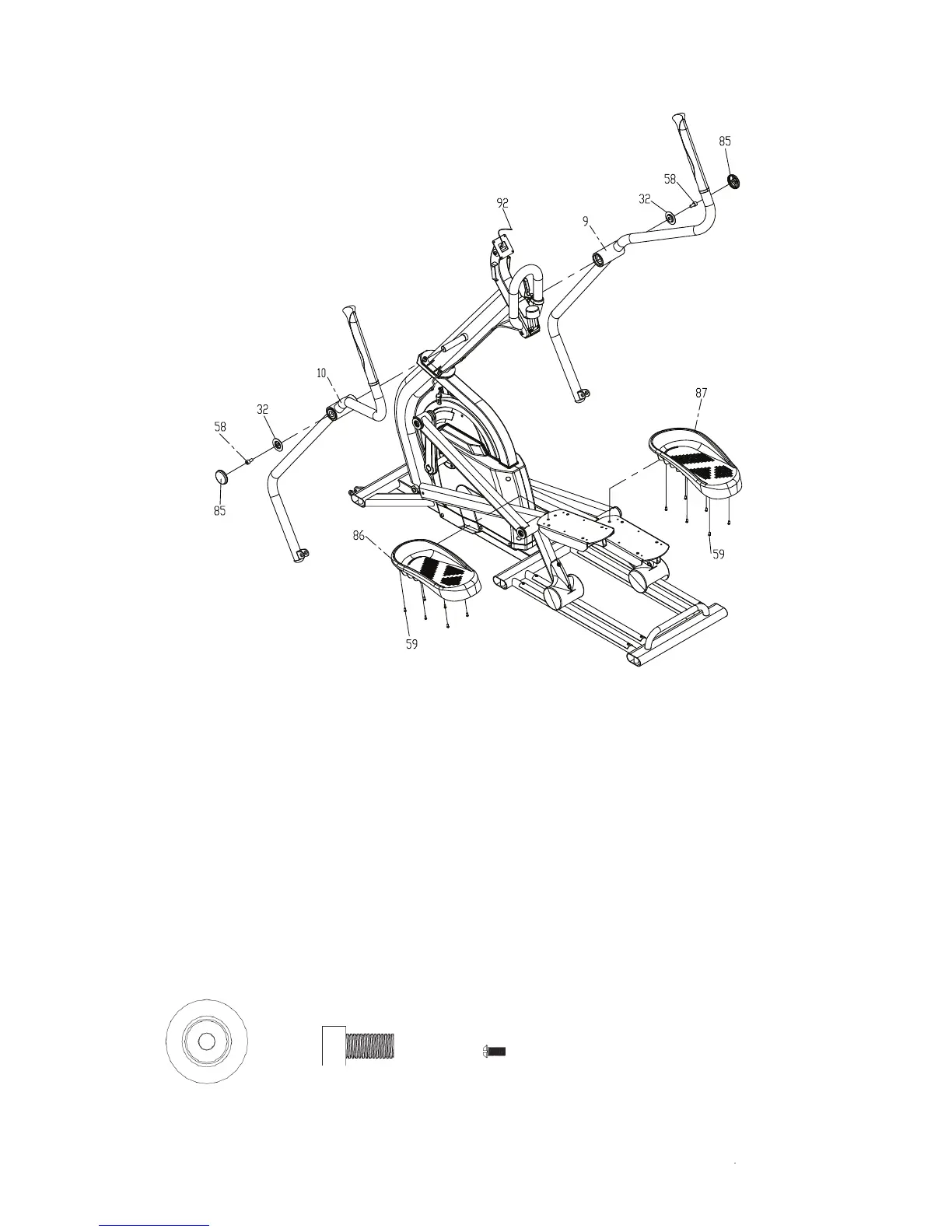

1. Slide the two swing arms (9 & 10) onto the console mast axle. There is a left and right swing arm so make sure
you assemble the correct one on each side. Do not force the arms onto the axle or use a hammer as damage
to the bearings could occur. The swing arms have been previously installed at the factory and should t properly,
although it is a snug t.
2. Secure the swing arms in place with the stainless steel bolts (58) and cup washers (32) and tighten. Snap the
decorative caps (85) over the cup washers.
3. Attach the foot pedals (86 left, 87 right) with twelve screws (59).
#32. Cup Washer #58. M10 x 20mm
Stainless Steel Bolt
#59. M5 x 10mm
Phillips Screw
HARDWARE
STEP 2: Swing Arms & Pedals
