Splash SuperPools TitanPool3 - Round Pool Ladder Installation; Round Ladder Berth Pipe Attachment

Round Ladder Instructions
If you have purchased a round pool, these instructions replace steps(7) and (9) in your SplashLadder Instruction
Manual.
Attaching the round ladder Berth Pipe to the Buttress Leg
Please note: The front holes (the ones closest to the pointed ends) in the round ladder Berth Pipe are for round pool
sizes 12’ x 4’ and 16’ x 4. The rear holes are for round pool sizes 20’ x 4’ and 24’ x 4’.

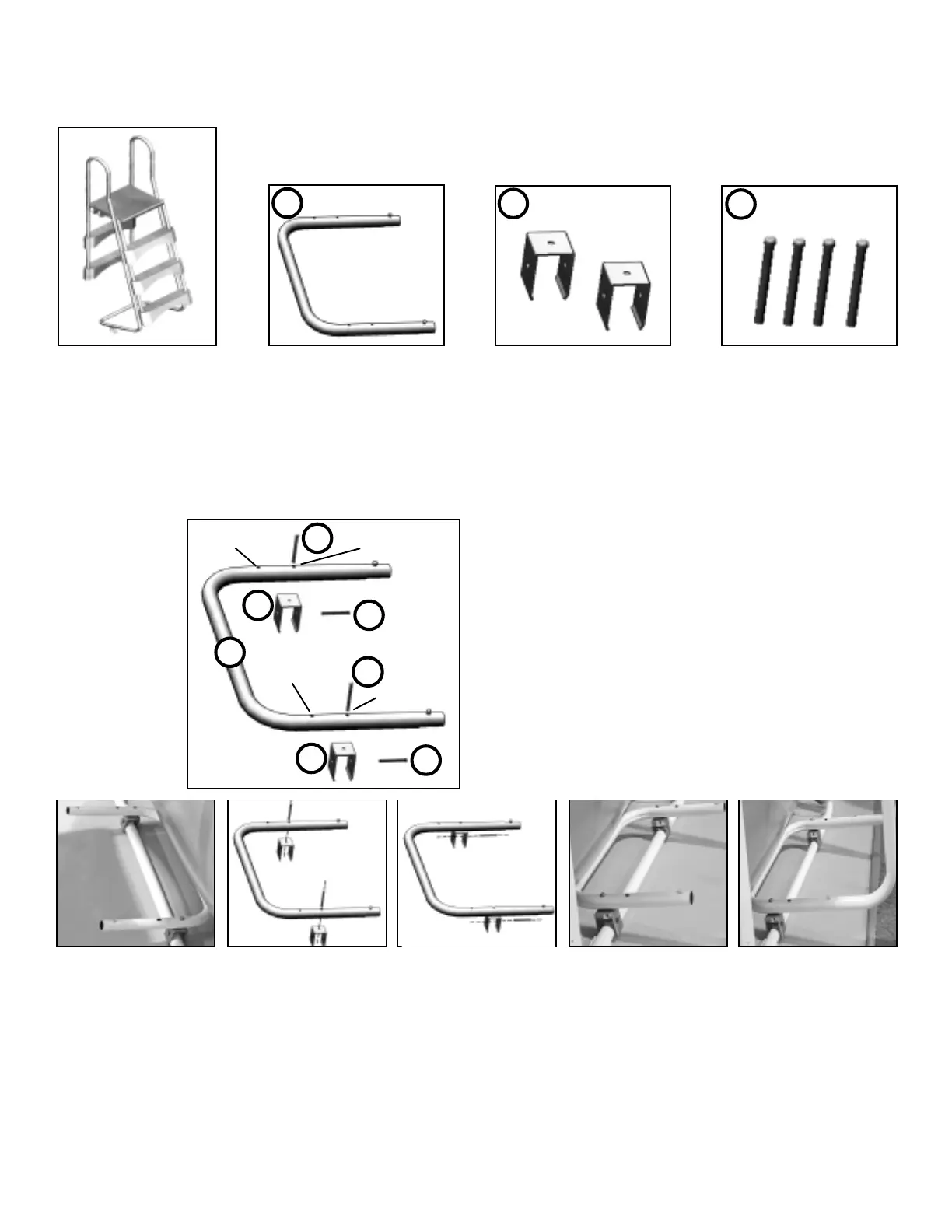

Parts Needed:
I. Round ladder “Horseshoe” Berth Pipe
P. Round ladder Mounting Brackets
O. (4) Long Metal Screws w/Nuts and Washers
1. Select the desired pool Buttress Leg for your SplashLadder and place the “Horseshoe” Berth Pipe on top of a
Buttress Leg. (The pointed end should face away from the pool.) 2. Take the two Long Metal Screws and place them
vertically through the SplashLadder “Horseshoe” Berth Pipe and the ladder Mounting Brackets on the Buttress Leg.
Tighten with the corresponding Nuts and Washers. 3. Take the two remaining Long Metal Screws and place
them horozontally underneath the Mounting Brackets and tighten with the corresponding Nuts and Washers. 4.
The SplashLadder “Horseshoe” Berth Pipe is now secure. 5. Slide the SplashLadder Vertical Supports into the
SplashLadder “Horseshoe” Berth Pipe until the snap couple system is in place. The SplashLadder assembly is now
complete.
1
2345
8
Letter (I) is now the OmegaLadder
“Horseshoe” Berth Pipe
Letter (P) is now the OmegaLadder
Mounting Brackets
Letter (O) is now (4)Long Metal
Screws w/Nuts and Washers
I
P
O
O
O
O
P
Rear Hole
Front Hole
Rear Hole
Front Hole
©
2003-Splash Superpools Ltd.
Please replace the following letters with the corresponding diagram parts list on
page 1 of
your SplashLadder Instruction Manual:
I
P
O
