BANTAM – OPERATIONAL INSTRUCTIONS
PAGE 2 WWW.4X4sPOD.COM
1. Find a dry, clean, easily accessible, flat surface to mount the Bantam that is within reach of the provided battery cables.
2. Mount the Bantam using the provided screws through the mounting holes.
3. Run control cable through the firewall of the cab. Keep protective cap on during the process.
4. Connect POSITIVE and NEGATIVE battery cables to the battery. NOTE: This should be the last step!
5. Use supplied cable ties to secure all cables.

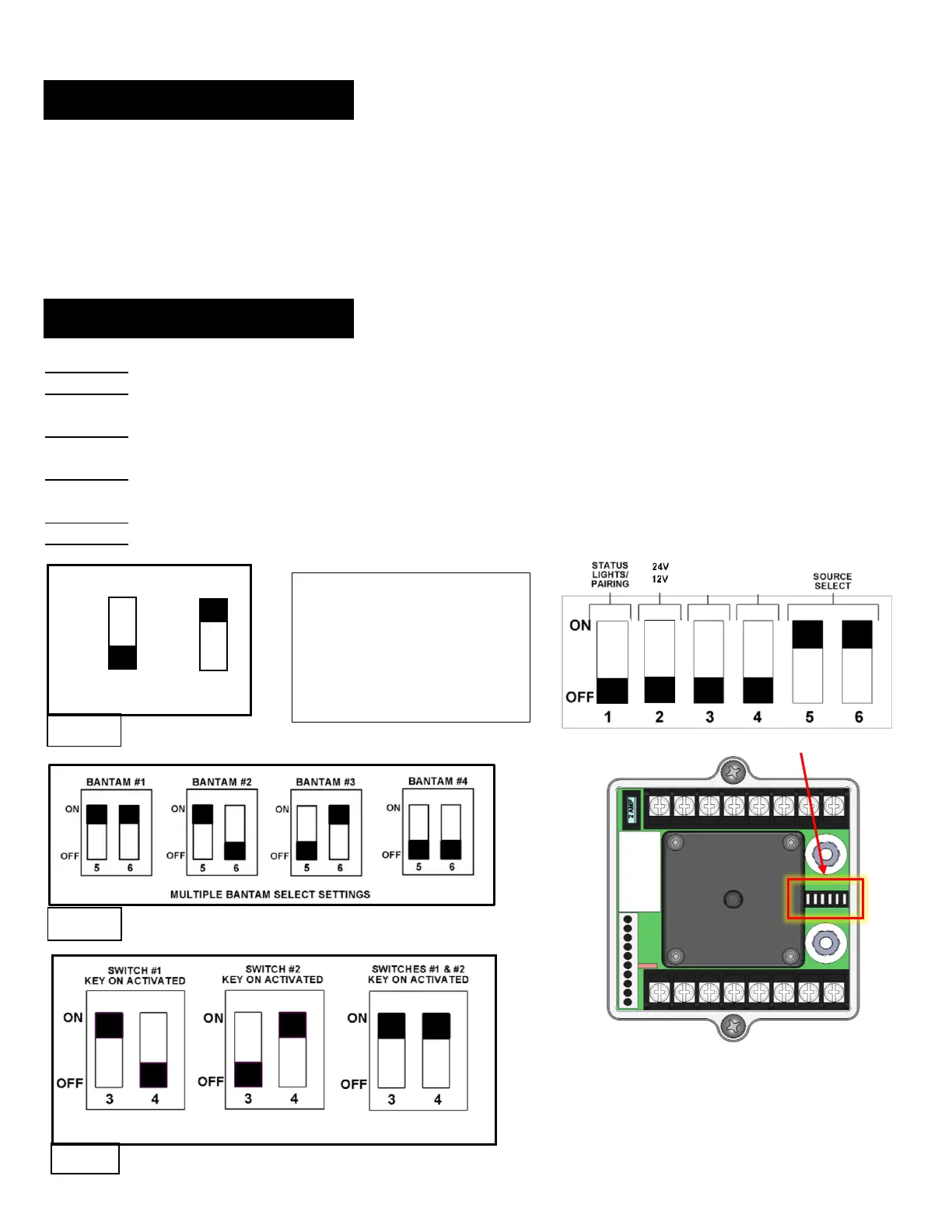

DIP SWITCH 1: 1) Used initialize “pairing mode” for Bluetooth applications, 2) Used to disable deep sleep mode. 3) Troubleshooting
DIP SWITCH 2: Used to change between 12V or 24V electrical systems. DIP switch in the “OFF” position allows the Bantam to operate 12Volt
systems while having the DIP switch in the “ON” position allows Bantam to operate 24Volt system. (See Fig. A)
DIP SWITCH 3: Key-On Lock-Out control. Having the DIP switch in the “ON” position allows switch #1 to only be active when the vehicle’s ignition is on.
NOTE: This only pertains to switch #1 (See Fig. C)
DIP SWITCH 4: Key-On Lock-Out control. Having the DIP switch in the “ON” position allows switch #2 to only be active when the vehicle’s ignition is on.
NOTE: This only pertains to switch #2 (See Fig. C)
DIP SWITCH 5: Multiple Source select. Used to identify Bantam number (See Fig. B)
DIP SWITCH 6: Multiple Source select. Used to identify Bantam number (See Fig. B)
DIP SWITCH #1 HAS 3 PURPOSES:
1) USED FOR PAIRING A
BLUETOOTH DEVICE
2) USED TO OVERIDE THE DEEP
SLEEP MODE (USE IF
POWERING A 12V FRIDGE)
3) TURNS ON STATUS LIGHTS
FOR TROUBLESHOOTING
4)
