Batting Practice
PITCH LOCATORS -cont’d

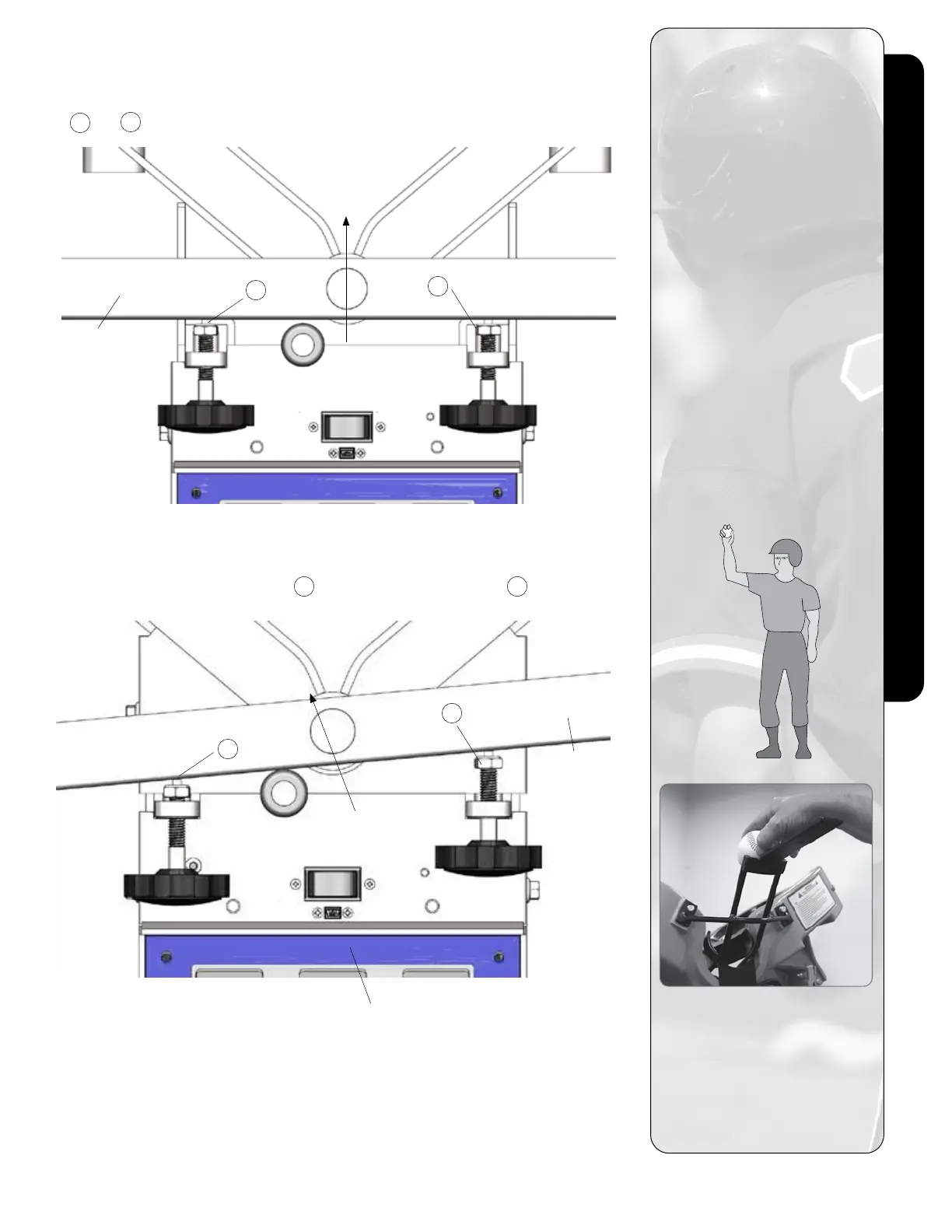

Whenpitchlocators(LPL&RPL)areinLocatingPosition(Figure8)andtestpitchiscen-
teredonhomeplatebothleft(LPL)andright(RLP)pitchlocatorsarermlyupagainstyoke
at and throwing head is locked in position for pitch location repeatability.
WhenLPLisbackedoff(loosened)at(Figure9)andRPLremainsatpositionpitch
location will be outside.
Left Pitch
Locator(LPL)
Locating Position (Pitches)
Right Pitch
Locator(RPL)
A
B
A
B
Locate Pitch
on center of
plate
A B
Left Pitch
Locator(LPL)
Locating Position (Pitches)
Right Pitch
Locator(RPL)
A
B
Locate Pitch
on outside
plate
Figure 8
Figure 9
Yoke
Yoke
Serial number of
electronic control
box
NOTE: As wheel speeds are
changed for different velocities
and spins, the ball will be pitched
to differing locations. Compen-
sate for these changes by turning
the elevation control, and by
moving the rear leg.
Figure 3 Present the ball to the hitter
Feeding the ball
IMPORTANT: Hitter should
stride the instant he sees the ball
release from the feeder’s hand at
the upper end of the ball chute.
WARNING
HAZARD FROM
HIGH-SPEED
PROJECTILES
Being struck by a pitched ball
can cause serious injury or death.
Make sure that no one steps in
front of I-Hack Attack while it is
connected to electric power.
Clear all hitters away from home
plate, the batter’s box and the
backstop area before connecting
I-Hack Attack to electric power.
