SprayTECH 1150 - Page 22

20

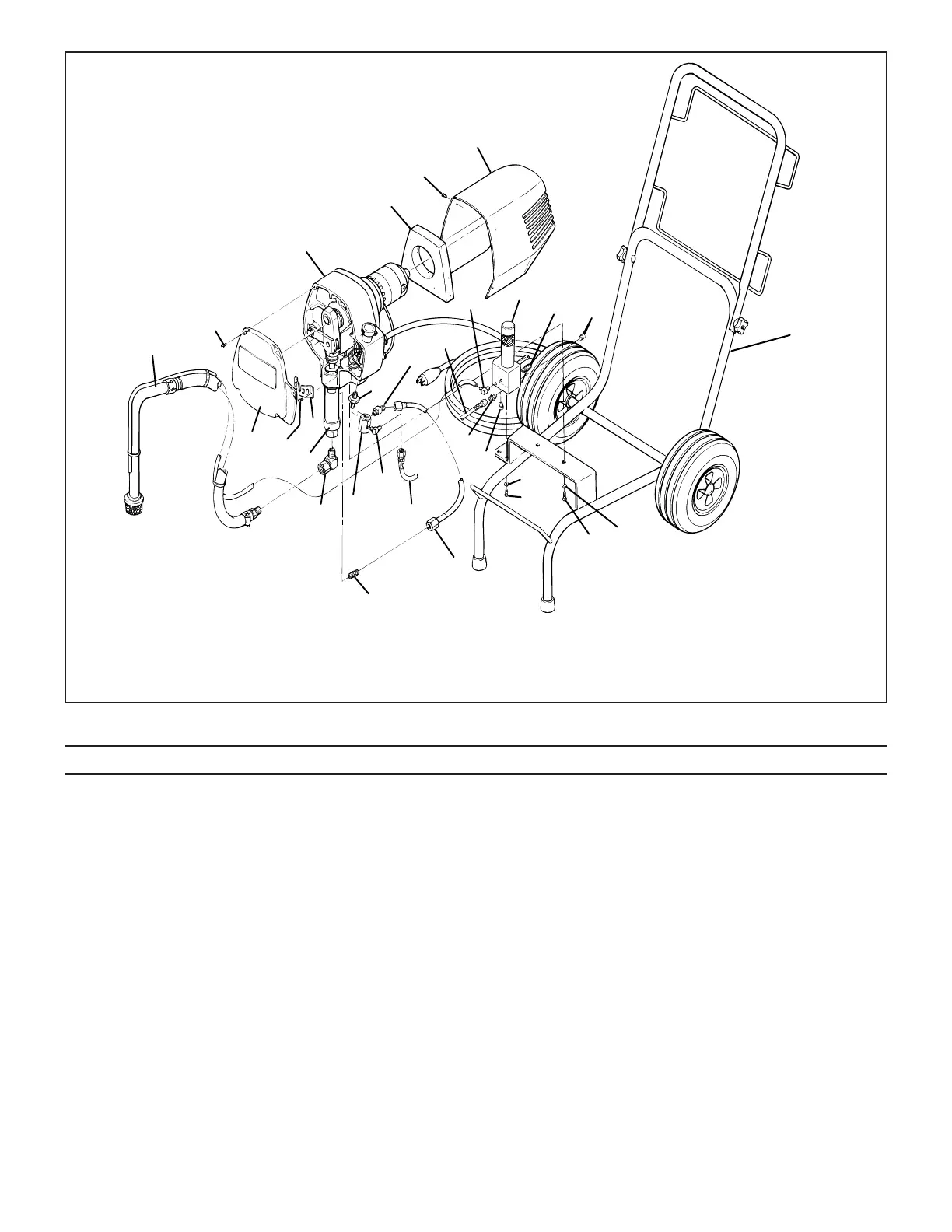

Figure 17- Low Boy Final Assembly
EP2300 LOW BOY FINAL ASSEMBLY - FIGURE 17
ITEM PART NO. DESCRIPTION QTY.
ITEM PART NO. DESCRIPTION QTY.
1 - - - - - - - - LowBoy Cart Assembly 1
(See Figure 19)
2 51357 Washer, Lock 4
3 52183 Bolt, Hex. Hex. 4
4 13549 Hose, Fluid 2
5 05045 Nipple 2
6 51055 Plug, Pipe 2
7 02518 Nipple 1
8 0294220 Filter/Dump Valve Assembly 1
(See Figure 26)
0294228 Optional Filter Assembly
( Includes Items 5, 6, 7, 8, & 9)
9 9885559 Elbow, 90°, Return Line 1
10 0294424 Tube, Return 1
11 9885547 Elbow, 45° 1
12 02208 Transducer Assembly 1
(See Figure 22)
13 12440 Elbow, 90° 1
14 0294415 Manifold 1
15 0090447 Elbow, 90° 1
16 0294133 Fluid Section Assembly 1
(See Figure 21)
17 0294393 Cover, Packing Nut 1
18 9802515 Screw 6
19 0294425 Cover, Front 1
20 0294185 Suction Set 1
(See Figure 23)
21 9802511 Screw 5
22 - - - - - - - Drive Assembly 23 Series 1
(See Figure 25)
23 0294344 Baffle 1
24 0294405 Shroud, Motor 1
1
2
3
2
3
4
4
6
7
6
5
8
9
10
13
14
15
17
18
19
20
21
22
23
18
24
5
11
12
16
