SprayTECH 1150 - Parts List

19
11
19
20
1
2
3
4
5
6
6
7
8
9
10
10
9
2
12
13
15
14
16
17
18
21
22
23
24
25
20
26

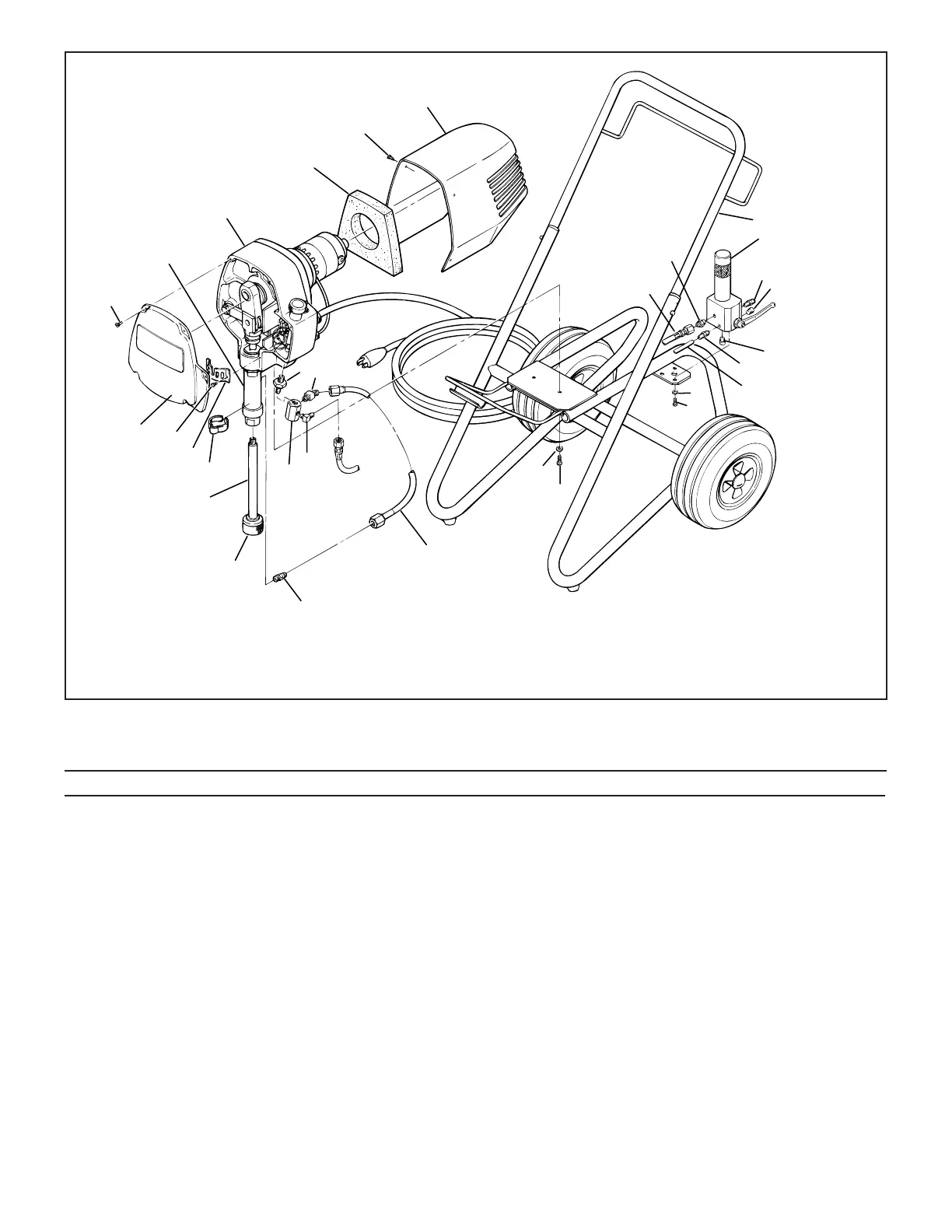

Figure 16- EP2300 Final Assembly
ITEM PART NO. DESCRIPTION QTY
1 0294611 Hose, Fluid,1/4 NPT 1
2 05045 Nipple 2
3 - - - - - - - - Cart Assembly 1
(See Figure 18)
4 0294220 Filter/Dump Valve Assembly 1
(See Figure 26)
0294229 Optional Filter Assembly
(Includes Items 2, 4, 5, 6 & 7)
5 02518 Nipple 1
6 51055 Plug, Pipe 2
7 9885563 Fitting, Tube 1
8 0294416 Tube, Return 1
9 51357 Washer, Lock 4
10 52183 Bolt, Hex. Head 4
11 13549 Hose, Fluid 1
12 12440 Elbow, 90° 1
13 0294415 Manifold 1
ITEM PART NO. DESCRIPTION QTY
EP2300 FINAL ASSEMBLY - FIGURE 16
14 9885547 Elbow 45° 1
15 02208 Transducer Assembly 1
(See Figure 22)
16 02975 Strainer 1
17 0279473 Siphon Tube Assembly 1
18 0294584 Return Tube Clamp 1
19 0294393 Cover, Packing Nut 1
20 9802515 Screw 6
21 0294425 Cover, Front 1
22 9802511 Screw 5
23 0294133 Fluid Section Assembly 1
(See Figure 21)
24 ------------ Drive Assembly, 23 Series 1
(See Figure 25)
25 0294344 Baffle 1
26 0294405 Shroud, Motor 1
