NEVER OPERATE PUMP WITHOUT FRONT COVER IN
PLACE.
WARNING
Brushes should be inspected periodically to insure uninter-
rupted service. Their life depends on speed as well as load.
If one of the brushes measures less than 1/4'' or is worn
roughly or chipped, replace both motor brushes. It is also
recommended that brushes be checked when packings are
replaced.
1. Disconnect power cord from electrical supply.
2. Remove the four (4) motor shroud mounting screws
and remove the motor shroud.
3. Unscrew and remove brush caps holding brushes in
place.
4. Remove brushes.
5. Replace with new brushes.
Brush Cap
Motor Brush
6. Replace brush caps.
7. Replace motor shroud and screws.

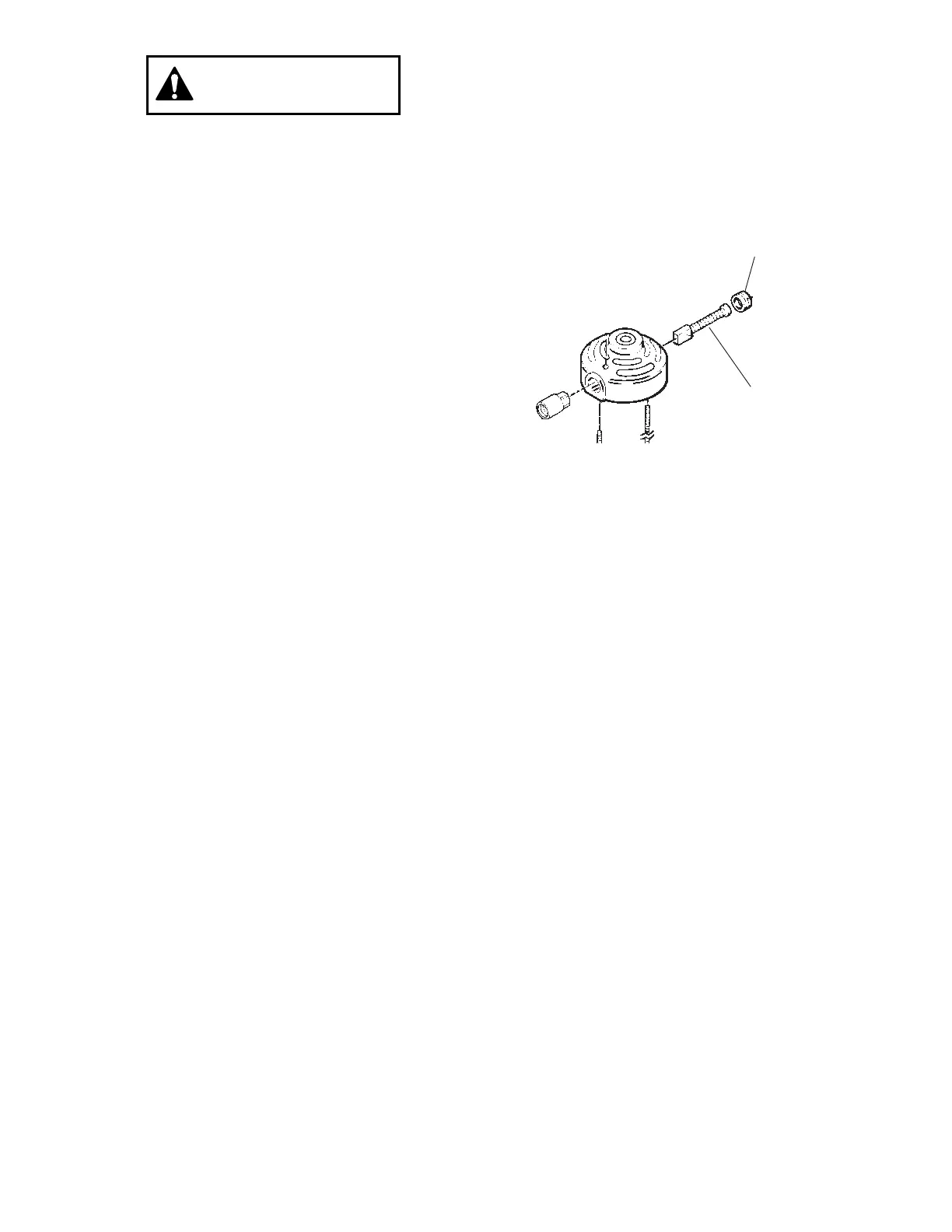

Figure 15. Remove Brush Cap and Motor Brush
Motor Brush Replacement
