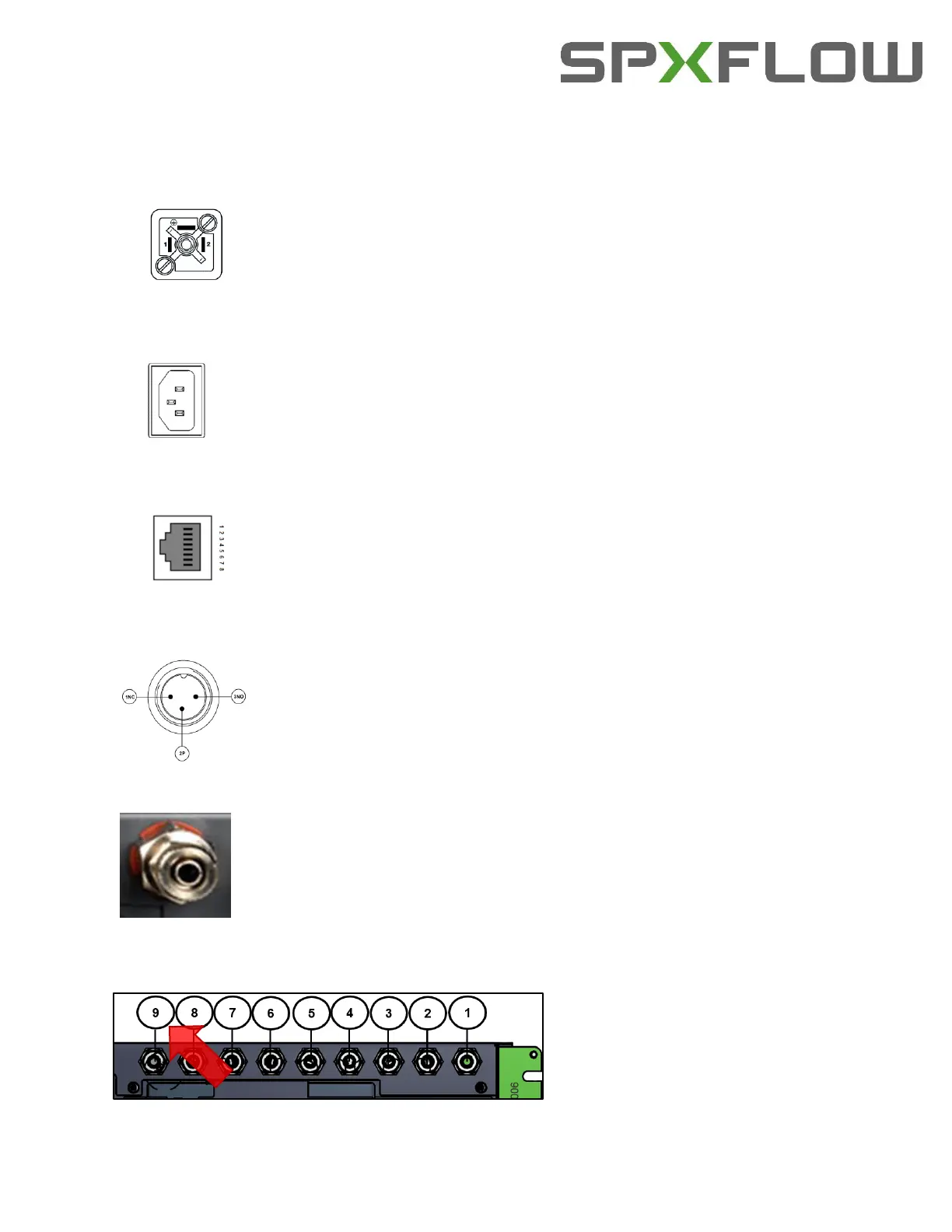

Quick reference delair® Etsiline CommPact
Electrical power supply standard :48Vdc
To be connected to male-connector CON8. Female socket (CON7) included in delivery. See below how
connector needs to be wired;
48Vdc Supply connector
Female socket CON7 included in delivery.
3-pole connection suitable for 48Vdc.
Pin 1: +, Pin 2: -, 3 earth
With option 0281544 (power adaptor) power supply is : 90-264Vac / 1ph / 50-60Hz
Main voltage connector
[Only applicable with option 0281544]
Female socket CON6 included in delivery.
3-pole (phase-neutral-earth) connection suitable for 90-264Vac/1/50-60Hz
– 90W.
Through CON4 the installation is connected to Ethernet
Air dryer is equipped with an alarm connector CON9. See below positioning of contacts
Alarm connector
Connector for external alarm. Potential free contact.
Dry air connections (outlet 1…8)
Dry air outlet connection
Hose connection to system. Connection number corresponds to OPEN-
CLOSE valve on front of the unit. When corresponding valve is opened,
dry air is delivered to the system. Suitable for flexible hoses with internal
diameter 6mm and outside diameter of 8mm.
Connection 9 is the remote sensing connection. With this connection the pressure downstream the dryer can
be measured and used for control.
