SPXFLOW Votator II - Cylinder Assembly - Shaft

Parts Lists Votator
®
II Scraped Surface Heat Exchanger
Page 76 Waukesha Cherry-Burrell
®
95-03057, 06/2023

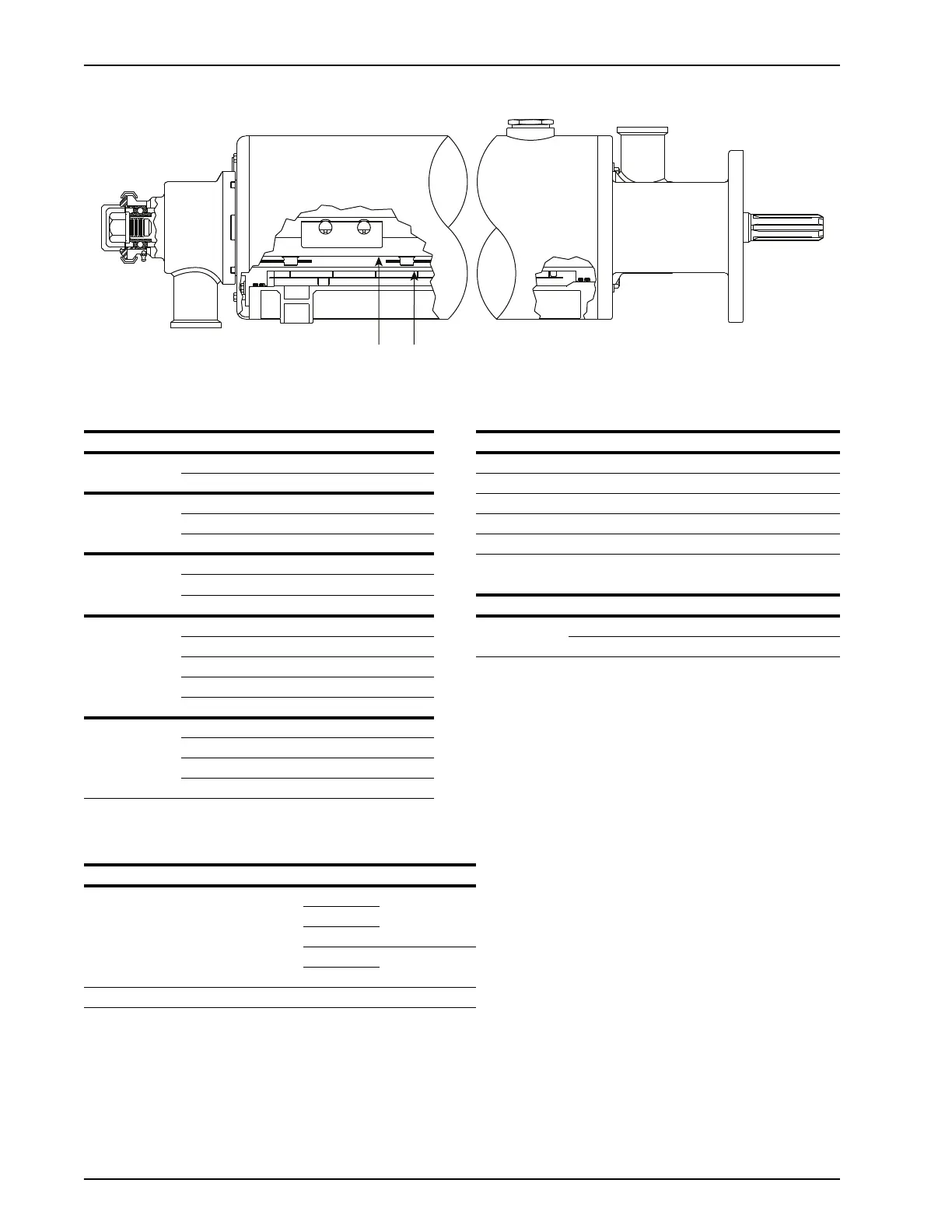

Cylinder Assembly - Shaft
Item 33 (Shaft) Part Numbers
NOTE: These shaft designs can be used both with the 2012 Single and Double Mechanical Seal on page 79
as well as the Double Mechanical version of the One-Piece Seal on page 81.
For shafts compatible with the obsolete Two-Piece Single Mechanical Seals, see page 85.
HE100-040
27
33
2-Row Staggered Blade Design Shafts 2-Row Inline Blade Design Shafts (2014)
SIZE SHAFT MODEL PART # SIZE SHAFT MODEL PART #
6 x 24 4" dia LL122760 6 x 24 5-1/4" dia 135289+
4-1/2" dia LL936881 6 x 36 5-1/4" dia 135375+
6 x 36 4" dia LL935518 6 x 48 5-1/4" dia 135290+
4-1/2" dia LL935563 6 x 72 5-1/4" dia 133003+
4-1/2" dia LL935563 6 x 84 5-1/4" dia 135291+
6 x 48 4" dia LL936743
4-1/2" dia LL936786
4-Row Inline Blade Design Shafts (1997)
EHD 4" dia LL122335
SIZE SHAFT MODEL PART #
6 x 72 2-1/2" dia LL935679 6 x 72 5-1/4" dia LL936147
4" dia LL934809 EHD 5-1/4” dia LL122617
4-1/2" dia LL935423
EHD 4" dia LL123534
EHD 4-1/2" dia LL122585
6 x 84 4" dia LL124774
4-1/2" dia LL121858
EHD 2-1/2” dia 131148+
EHD 4” dia 131149+
Description Size Part #
Shaft Skid, Standard (horizontal
Votator only)
6 x 24
LL9347446 x 36
6 x 48
6 x 72
132461+
6 x 84
Shaft Skid, Eccentric/Oval all LL934394
