SPYKER 76-22 - Walk Behind Frame Assembly

6
3. Attach T-Handle
assembly to frame
with 1 bolt (31) and
nut (34).
Walk Behind Frame Assembly
4. Attach Braces (8)
to frame and T-
Handle assembly.
Use 3 bolts (35)
and nuts (34) to
attach braces to
the frame and to
the round tube of
ground prop. Use
bolt (57) and nut
(34) to attach
braces to the flat
suppor
t section of
ground prop.
5

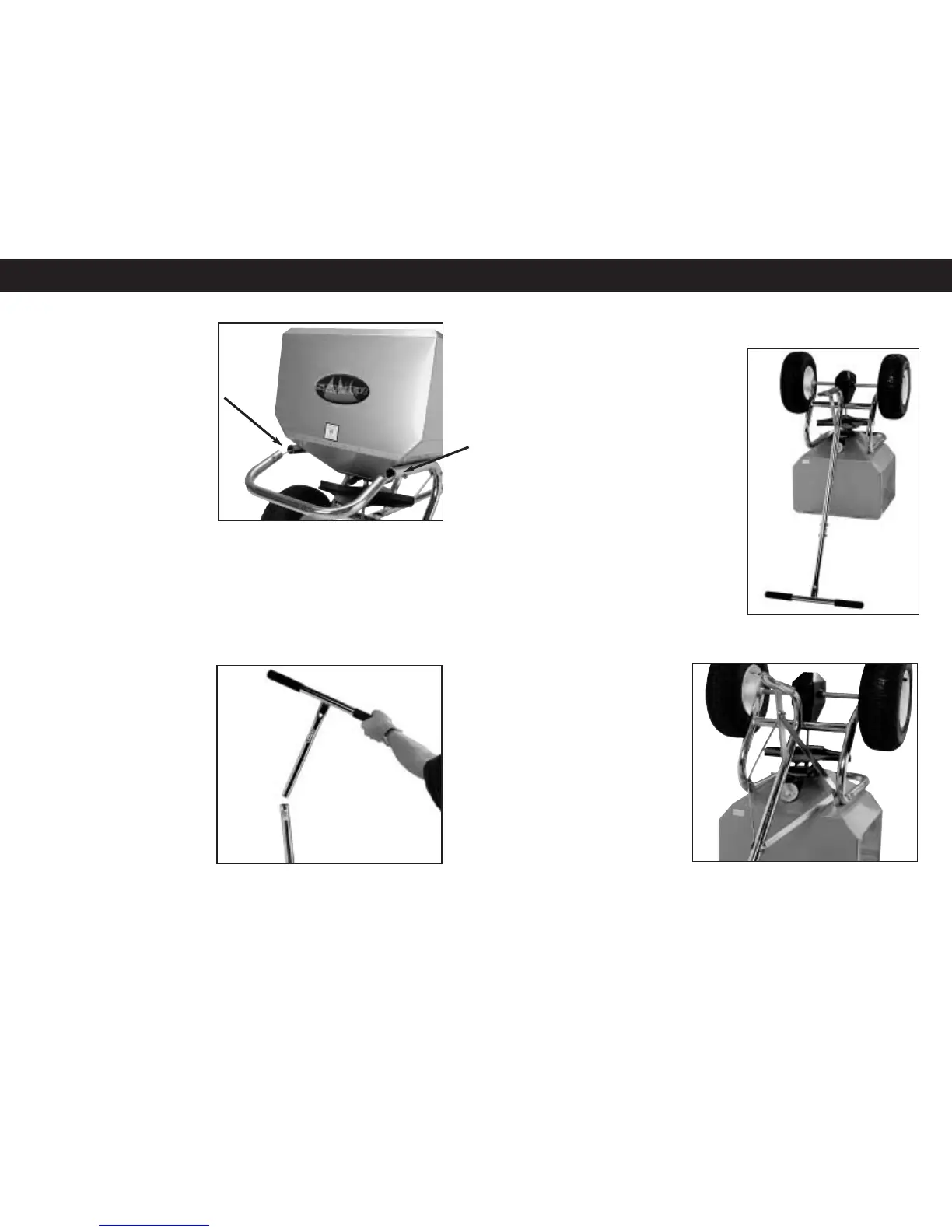

Walk Behind Frame Assembly
1. Remove nuts and
bolts that attach
front of hopper to
frame as indicated
and then insert
Bump Bar (3) into
frame assembly.
Next, re-insert bolts
and tighten nuts.
2. Insert T-Handle (6)
into Ground Prop
(5) and fasten with
2 bolts (37) and
nuts (34).
