Square D I-Line User Manual

© 2013–2017 Schneider Electric All Rights Reserved
I-Line™ Combo Switchboards 80043-808-02 Rev. 02
Installation—Circuit Breaker Reset Instructions 03/2017
20
ENGLISH
Circuit Breaker Reset Instructions
If the circuit breaker is tripped, the handle will be at the mid-position
between ON and OFF. To reset the circuit breaker, push the handle to the
OFF position, then to the ON position.
I-Line Interior Trim Barrier Preparation

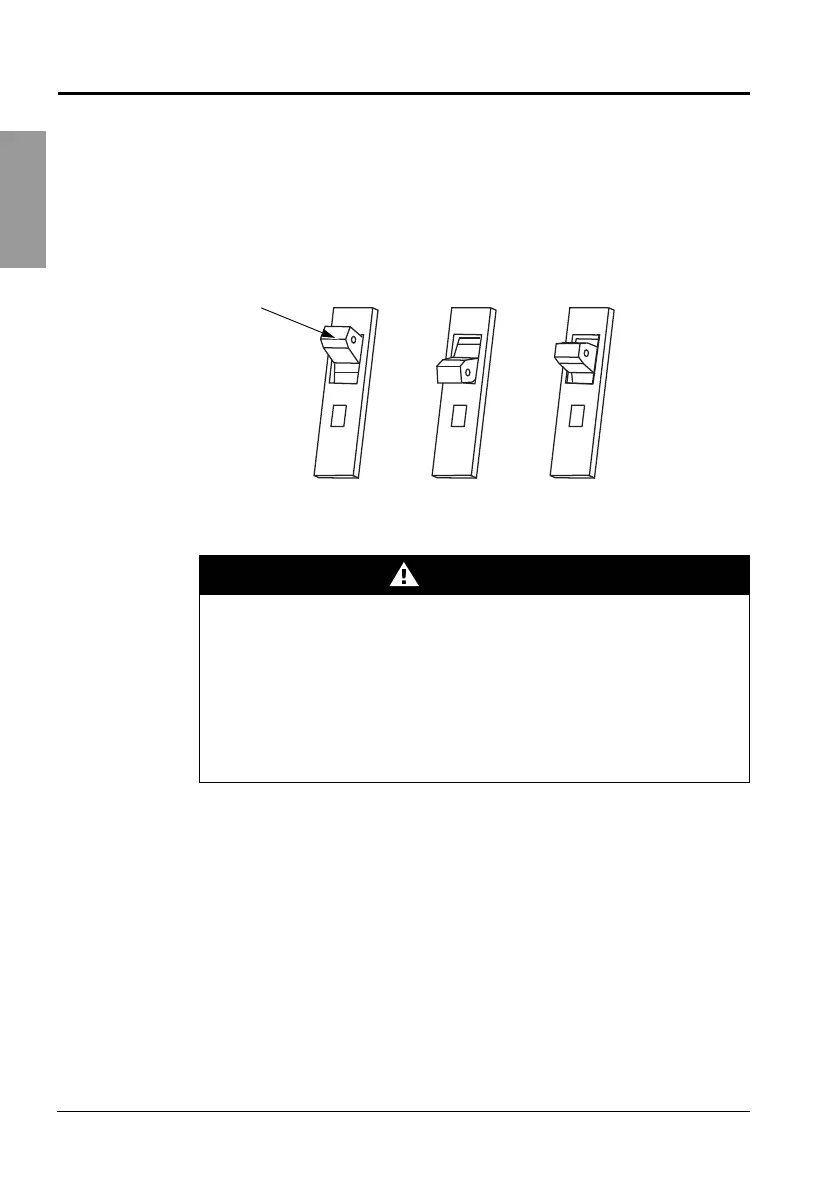

Figure 7: Circuit Breaker Handle Positions
ON
OFF
ON
OFF
ON
OFF
ON OFF Tripped
Handle
DANGER
HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH
• Before energizing the I-Line Combo switchboard, all unused spaces
must be filled with blank fillers.
• Replace all devices, doors, and covers before energizing
this equipment.
Failure to follow these instructions will result in death or
serious injury.
80043-808-01.book Page 20 Wednesday, March 22, 2017 12:31 PM

Square D I-Line Specifications

General

Bus Material	Aluminum or Copper
Voltage Rating	600V AC
Current Rating	Up to 1200A
Enclosure	NEMA 1
Poles	2, 3
Interrupting Rating	200 kA (depending on the specific model and installed breakers)
