80043-808-02 Rev. 02 I-Line™ Combo Switchboards
03/2017 Installation—I-Line Interior Trim Barrier Preparation
21
ENGLISH
I-Line Stack Assemblies
Table 1: Blank Extensions and Blank Fillers Catalog
Numbers
Blank Extensions
Circuit Breaker Frame
Circuit Breaker
Mounting Height
Catalog Number
All applications except Powerpact H/J with
Micrologic Trip Unit 5/6
1.5 in. (38 mm) HLW1BL
4.5 in. (114 mm) HLW4BL
Only Powerpact H/J frames with
Micrologic Trip Unit 5/6
4.5 in. (114 mm) HLW4EBL
Blank Fillers
All applications
Mounting Height Catalog Number
1.5 in. (38 mm) HNM1BL
4.5 in. (114 mm) HNM4BL

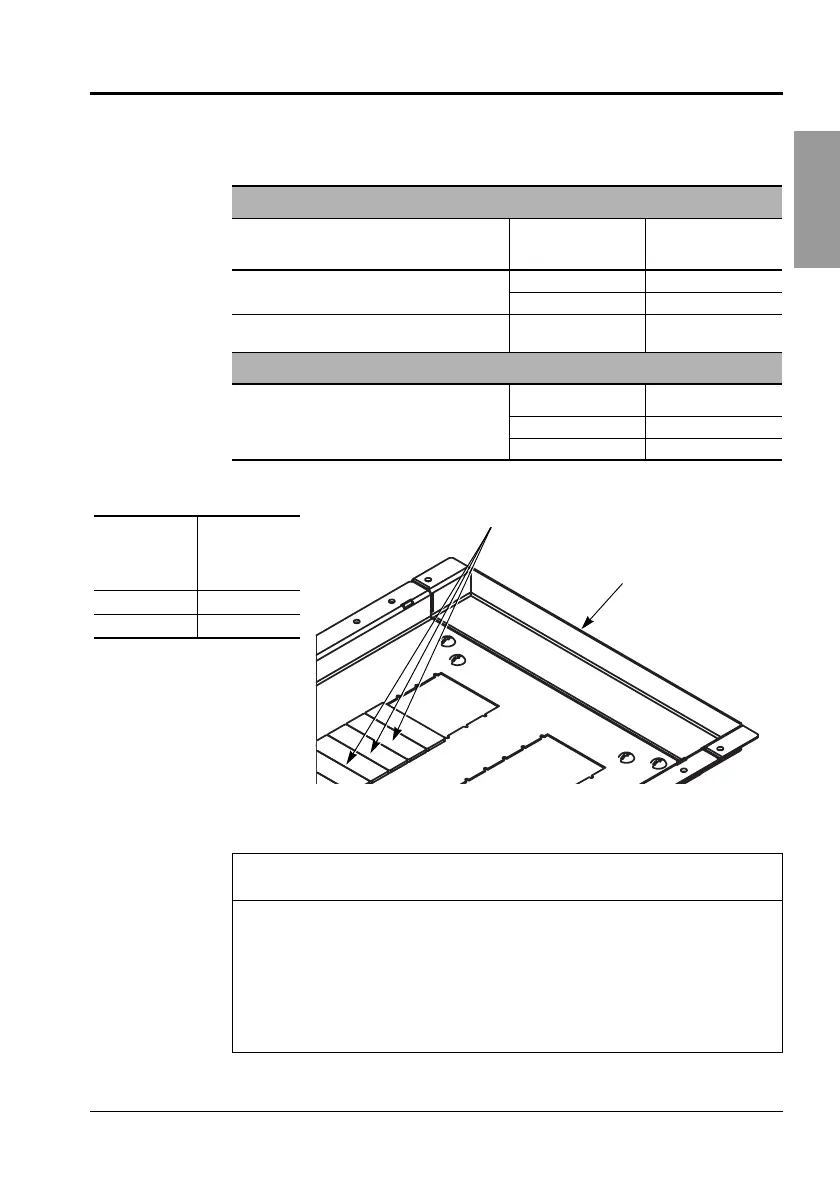

Figure 8: Lighting Section Interior Trim Preparation
Blank fillers
Lighting section interior
trim cover
Lighting
Section
Filler Plate
Catalog
Number
NF NFFP15
NQ NQFP15
NOTIC
E
RISK OF IMPROPER ASSEMBLY
Do not disassemble the I-Line Bus Stack Assembly.
If maintenance is required, contact Schneider Electric.
Failure to follow these instructions can result in equipment
damage and will void the warranty.
