6

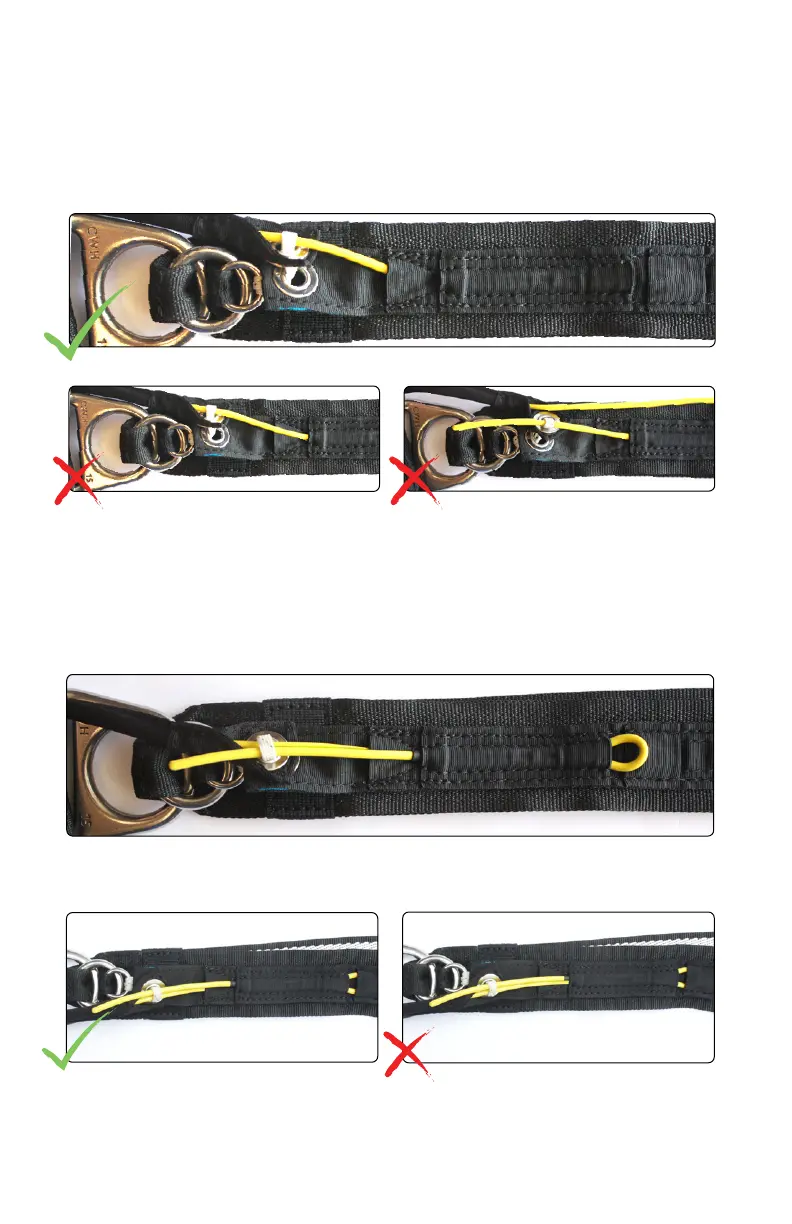

Cable Configurations
Single-Cable Configuration:
1. There should be 5.5 in. (14 cm) of excess cable extending past the cable housing grommet.
2. Thread the yellow cutaway cable from the main cable housing through the white loop.
3. It should then pass into the correct channel on the riser. NOTE THAT THERE ARE TWO
CHANNELS. The main cutaway cable should be seated only in the lower channel.
Double-Cable Configuration:
1. Assemble the Single-Cable Configuration as above.
2. Then, insert the short cable key from the top (Maillon or parachute side) of the risers.
3. Insert the end of the cable through the white loop.
4. Then tuck the looped-cable-end into the dedicated webbing cover so that it cannot
back out on its own.
CORRECT SINGLE-CABLE CONFIGURATION: Cable is routed to correct housing. Key is not used.
INCORRECT SINGLE-CABLE CONFIGURATION:
Main cutaway cable routed to incorrect housing on riser.
INCORRECT SINGLE-CABLE CONFIGURATION:
White loop secured with key only.
CORRECT DOUBLE-CABLE CONFIGURATION:
Cables are routed to correct housings. Key loop is tucked.
INCORRECT DOUBLE-CABLE CONFIGURATION:
Main cable routed into key housing
