7

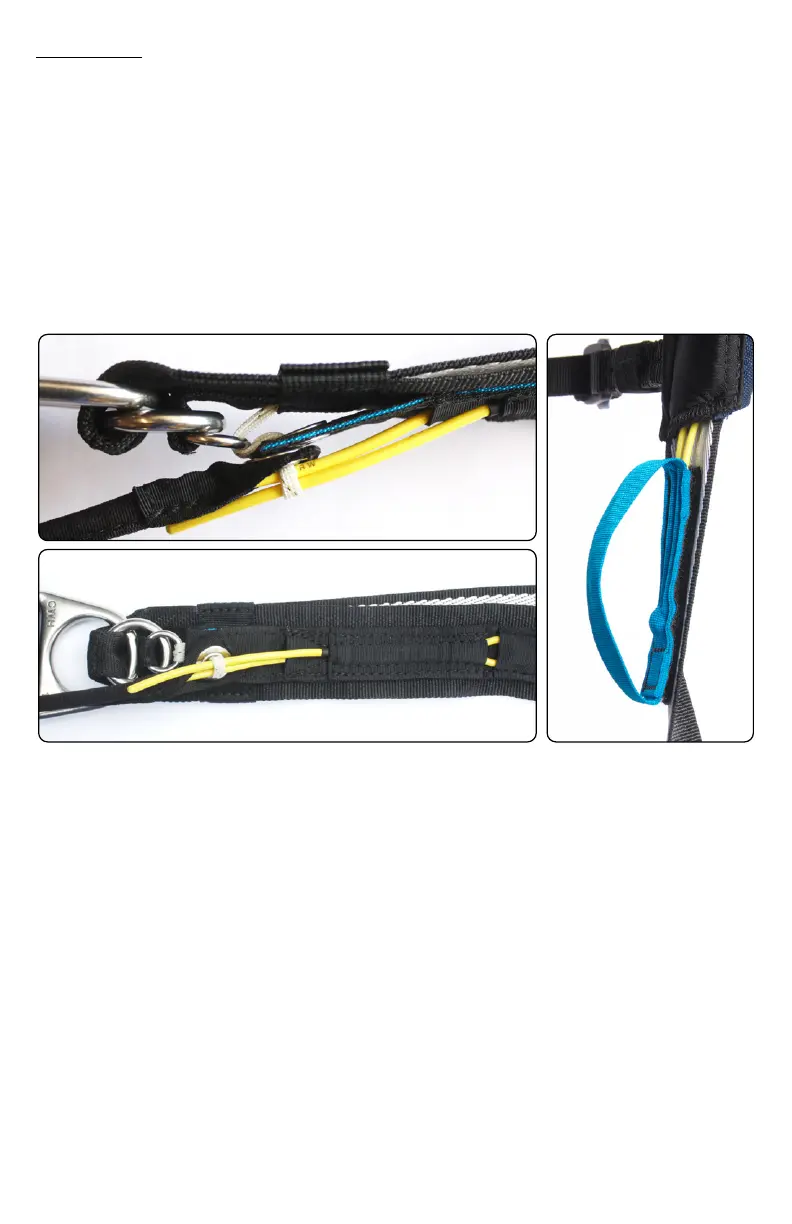

INSPECTION
1. Each ring passes through only one other ring.
2. The white loop passes through only the small ring.
3. The white loop passes through the grommet on the end of the cable housing without twisting.
4. The cable-key should be inserted from top down, in its dedicated channel on the riser.
5. The main cutaway cable should be inserted from harness to riser and properly seated in its
dedicated channel on the riser.
6. Nothing passes through the white loop except the yellow cutaway cable, and the cable-key.
7. The 3-Ring release handle is securely fastened to the harness.
ENSURE THAT:
• All 3 rings are aligned in parallel planes. Always ensure that the 3-ring assembly is not inverted
or stuck at an angle. This is particularly important when preparing for unpacked jumps, where
the risers are hanging at an abnormal angle before loading.
• The rings overlap each other and maintain metal-to-metal contact.
• The smallest ring is not pulled tight against the grommet. The white loop should be long enough
to allow it a small amount of movement.
• Your 3-ring risers must match the correct illustrations, exactly. If your riser assembly does not
match the illustrations, it will not function correctly. If you need assistance, contact Squirrel before
use or enlist the help of a rigger who is experienced with this specific CRUX 2 3-ring system.
1
2
3
4
7
5
6
