70
Technical Manual Gear Hub Systems 2010 · Copyright © SRAM 2009, LLC
SRAM
®
S7

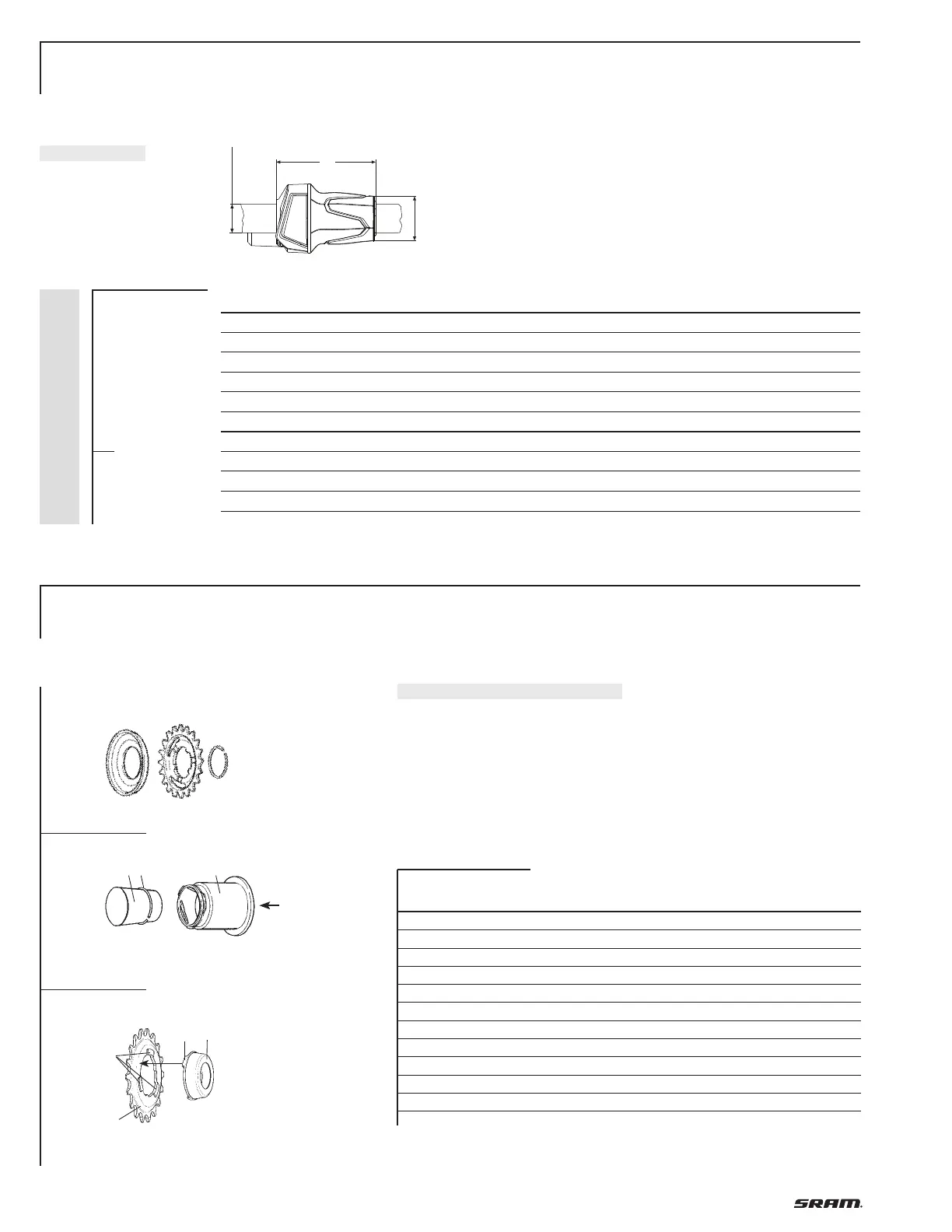

TECHNICAL DATA / ASSEMBLY REQUIREMENTS
SRAM S7
ASSEMBLY
SRAM Grip 7
Shifter Type
Twist Shifter mit Clickbox
Cable Length
Black housing: 1400 mm
❘
1500 mm
❘
1600 mm
❘
1700 mm
❘
1800 mm
❘
1900 mm
❘
Grey housing: 1650 mm
❘
1750 mm
Gear Indication
Window
Clamping Diameter
22.1 – 22.3 mm
Straight handlebar ends
Minimum necessary length for shifter and handlebar grip = 150 mm
Length of shifter
76 mm
Weight
N/A
Housing
Glass filled PA, black or grey
Grip
PP
Grip Cover
Thermoplastic elastomer, Overmolded
Clamping Collar
Aluminum
Design
S
H
I
F
T
E
R
1
2
3
10
9
8
7
12
45
6
3
Montagewerkzeug
Art.-Nr. 0582 104 000
Spoke lengths are approximate values. They must be checked through lacing attempts
and adjusted accordingly.
ASSEMBLY HUB
• Lace the wheel as normal. See spoke
length table.
• Place the dust cap (1, Fig. 1) and
sprocket (2) on the driver.
Advice:
When fitting a straight sprocket (not
an offset version), the beadings of the
sprocket must lie against the dust cap.
• Push sprocket circlip (3, Fig. 2) onto the
cone of tool sleeve (4). Place tool sleeve
with large diameter on the driver.
• Push the spring end of sliding sleeve (5)
of the tool over the tool sleeve. Thrust
sliding sleeve in direction (6), this forces
circlip into the recess of the driver.
• Remove tool and check that the circlip
is seated correctly.
Tire Size Cross Length
47–406 20" x 1.75 x 2 3 x 181 mm
37–490 22" x 1
3
/
8
3 x 225 mm
47–507 24" x 1.75 x 2 3 x 232 mm
37–540 24" x 1
3
/
8
3 x 251 mm
47–559 26" x 1.75 x 2 3 x 259 mm
37–590 26" x 1
3
/
8
3 x 275 mm
47–622 28" x 1.75 3 x 289 mm
37–622 28" x 1
3
/
8
x 1
5
/
8
3 x 289 mm
28–622 28" x 1
1
/
8
3 x 289 mm
32–622 28" x 1
5
/
8
x 1
1
/
4
3 x 289 mm
28–630 27" x 1
1
/
4
fifty 3 x 294 mm
32–630 27" x 1
1
/
4
3 x 294 mm
Spoke length table
76
Ø 22.1 – 22.3
Ø 34.5
SHIFTER
