5. Divide the piece of vinyl tubing into two equal lengths. Connect one end of one tube to the immersion
pump outlet and secure it with a hose clamp. The pump outlet is the small pipe connection on the top
side of the pump. Connect the other end of the same piece of tubing to the immersion coil and secure
it with a second hose clamp. Take the remaining piece of tubing and connect it to the other end of the
immersion coil and secure it with a third hose clamp and then place the free end of the tubing back into
the cooler.

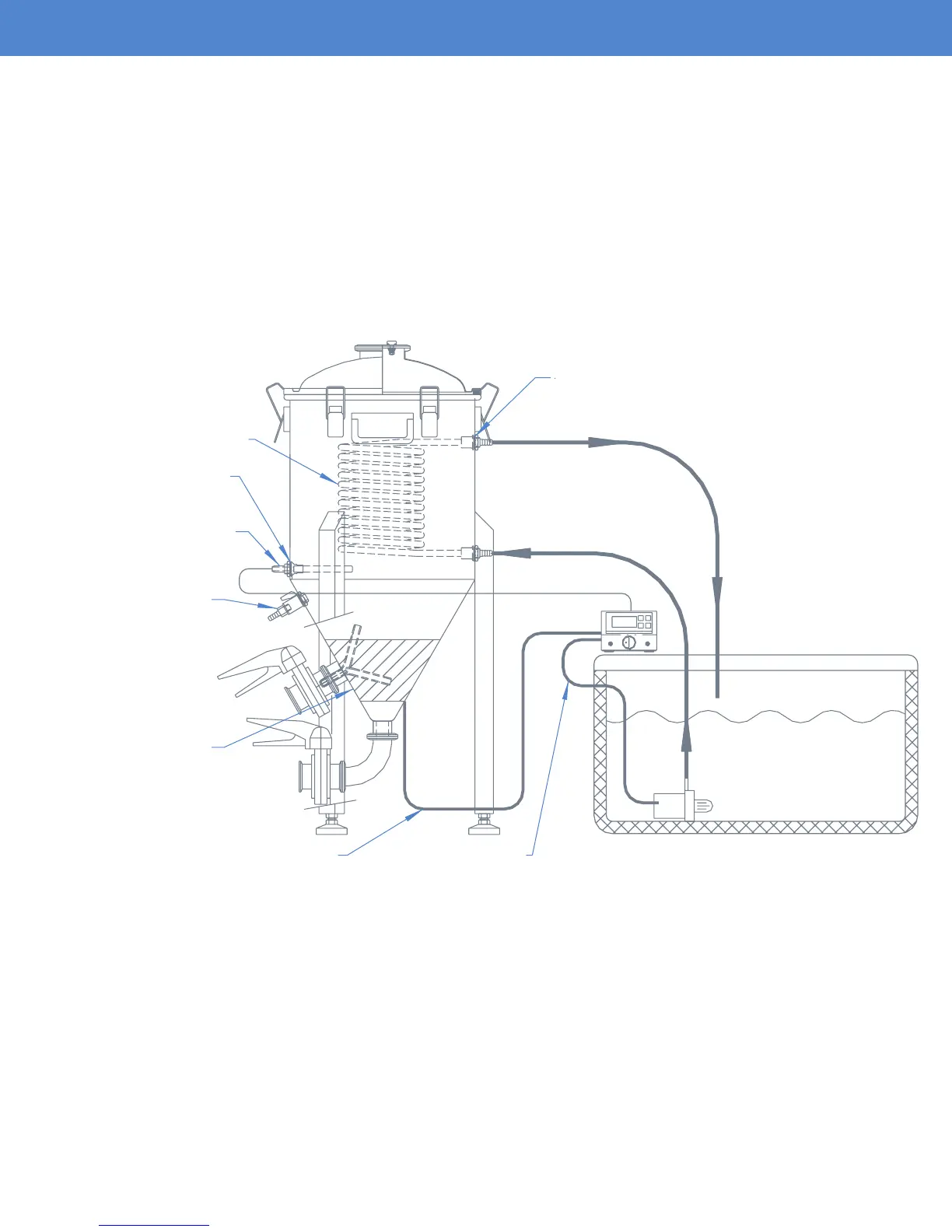

ASSEMBLY INSTRUCTIONS (CONTINUED)
Thermowell
Temp Sensor
Return H
2
O
Chilled H
2
O In
Heater Cable
Pump Cable
O-Ring (Inside Only)
Chill Coil
Cooler with
Chilled Water
Heater Pad
O-Ring (Inside Only)
Sample Port
O-Ring (Outside Only)
To Next Page
