7–28 SERVICE AND MAINTENANCE
Color
Red
Blue
Yellow
Pink
WARNING
The use of different types or differ-
ent rating fuses could cause damage
to the electrical system and even start
a fire.
• Always replace fuse with one with
the same rating.
• Never use anything else but a fuse.
• Do not use anything metal to re-
move fuse.
NOTE
Three pieces of spare fuse for 10A,
15A, 20A are located on the inside of
fuse & relay box cover in the engine
compartment respectively.
ELECTRICAL SYSTEM
Ignition System
Electronic ignition systems have a greater
ignition power than conventional systems. It
is thus highly dangerous to touch live parts.

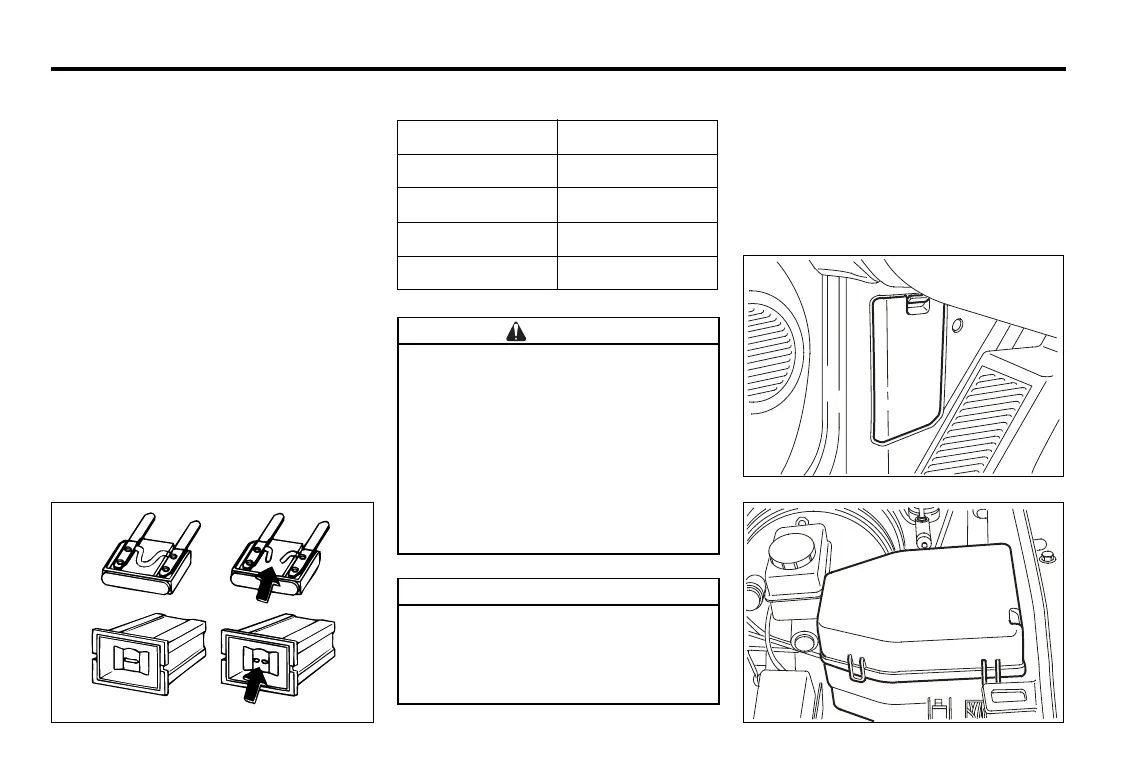

Fuse
For fuse replacement, withdraw the cover
and extract blown fuse.
A defective fuse can be recognized by its
melted wire. A new fuse should only be
installed after the cause of the trouble has
been located and eliminated.
Only fuses of the specified rating should be
installed. The rating is given on all fuses.
normal melted
Rating
10A
15A
20A
30A
FUSE BOX
The fuse box is located below the driver’s
side of dashboard under a cover.
Another fuse box is next to the brake fluid
tank in the engine compartment.
