SSS Siedle AIB 150 series User Manual

6 Installation
Modular Jung indoor station
SIAI… Audio indoor station Item no. Item designation
SIAM… Audio module
SITM..5073 Standard call button module
SIVI… Video indoor station
SIVM… Video module
SIAM… Audio module
SITM..5093 Universal call button module
SI VM ...
SI AM ...
SI TM .. 5093
SI TM .. 5073
TOP
VIDEO
TOP
VIDEOAUDIO
ERT ETb TbM TbM TaM TaM
TOP
AUDIO
TOP
AUDIOAUDIO
+M -M
Every module is mounted in a
ush-mounting junction box in
compliance with DIN 49073. We rec-
ommend using a deep junction box
for mounting. Mounting takes place
using the provided support rings.
Mounting can take place in combi-
nation or individually – horizontally
or vertically.

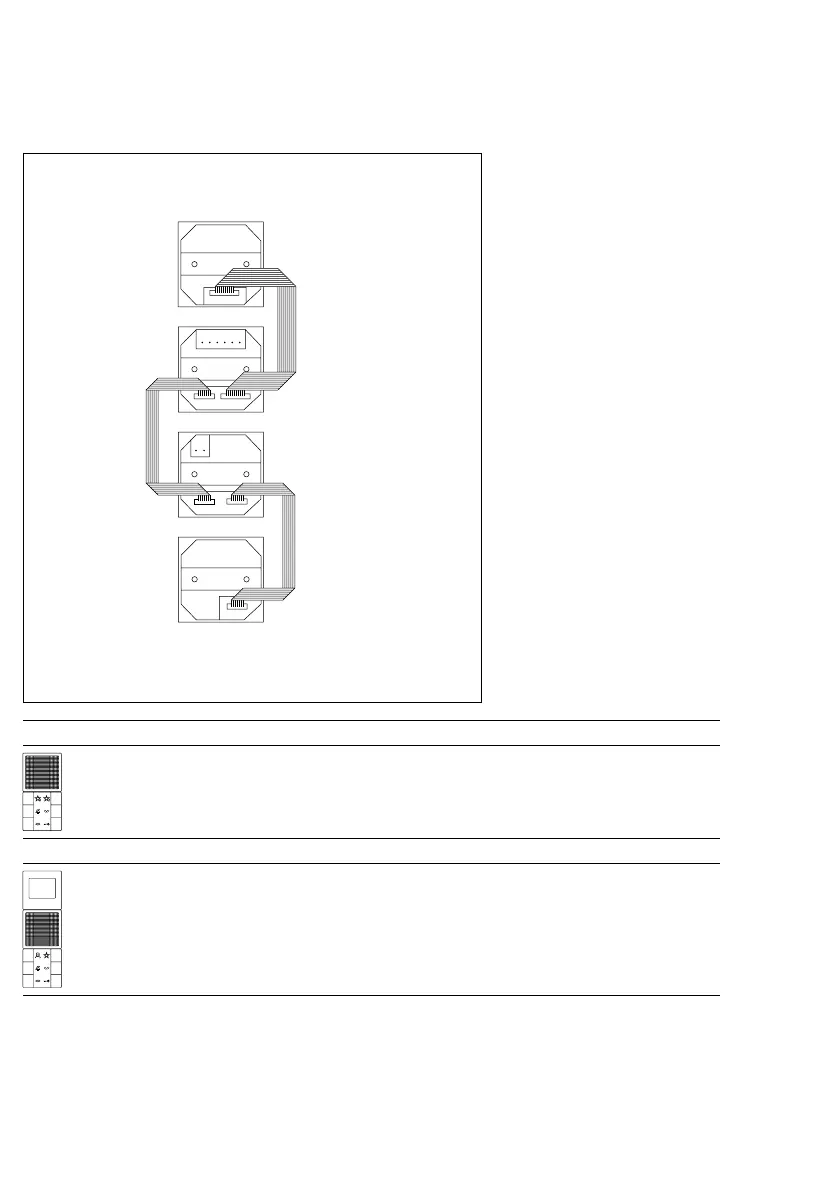

The modules are interconnected
using the supplied connecting
cables.
Connection to the In-Home bus
takes place at the audio module.
The universal call button module
has one terminal for a supplemen-
tary power supply. This is required
for operation of a video module,
illumination of the inscription eld
in the universal call button module,
and when connecting a second
call button module. An additional
call button module (standard or
universal, max. 2call button mod-
ules per indoor station) can be
connected.
38

SSS Siedle AIB 150 series Specifications

General

Installation	Wall-mounted
Door release button	Yes
Light button	Yes
Adjustable Ringer Volume	Yes
Housing Material	Plastic
Weight	200 g
Type	Indoor station
Call tone	Electronic
Power Consumption	0.5W
Wiring System	2-wire
