8
10. Are there Cycle Time adjustments on the Control Board for different types of fuel?
Answer: There are 4 individual programs on the control board, each
with a different Cycle time.
When replacing your Control Board you are responsible for
choosing the correct Program.
Program 1 has an 11.5 second cycle time. The LED’s flash once.
This program is for use with Pellets, Corn, Wheat, Rye, Cherry Pits or
Distiller Grain Pellets. (When using this program with Wheat or Rye,
the ON-Times may need to be decreased. See point 8). This program is
not for use with Pellets stoves
Program 2 has a 13.0 second cycle time. The LED’s flash twice. This
program is for use with Pellets, Corn, Wheat, Rye, Cherry Pits or
Distiller Grain Pellets. This program is not for use with Pellets stoves
Program 3 has an 11.5 second cycle time. The LED’s flash three
times. This program is for use with Pellets & Cherry Pits. This
program does have Self-Ignition and is used in units that have the
Versa Grate System & Igniter installed. This program is not for use
with Multi-Fuel Stoves
Program 4 has a 10.0 second cycle time. The LED’s flash four
times. This program is for use with Cherry Pits only. This program
does have Self-Ignition and is used in units that have the Versa Grate
System & Igniter installed. This program is not for use with Multi-
Fuel Stoves

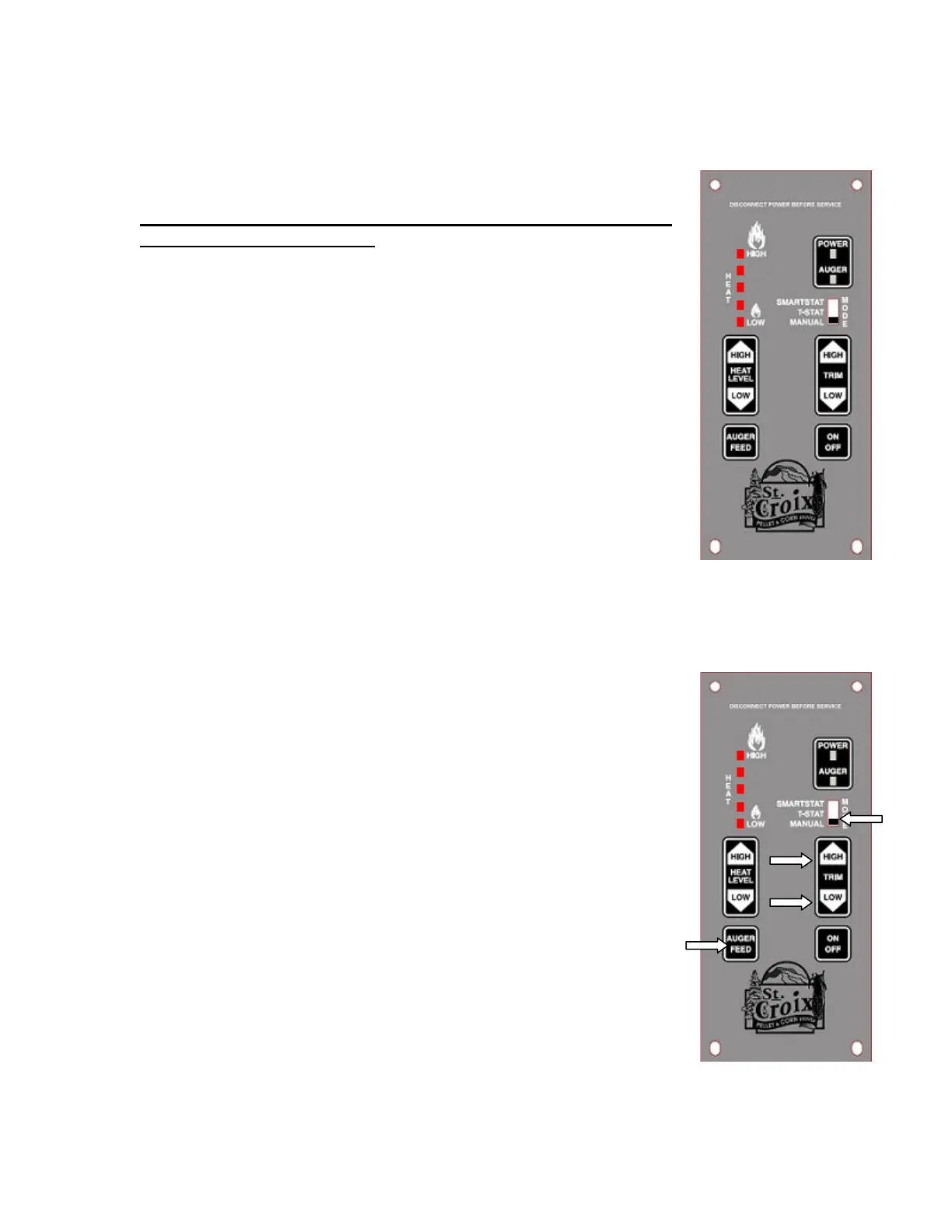

11. How do I change to a different Program on the control board?
First the Stove must be turned off and cooled down.
Step 1 - The Thermostat switch must be in the Manual position.
Step 2 – Press and hold the Auger Feed Button.
Step 3 – Press the Trim High and Low Auger Feed Button.
Release all 3 buttons at the same time.
Step 4 – Observe the LED light flashing as described in point 10
above.
Changing the Cycle Time will change the BTU Input of the Stove.
The longer the Cycle time the lower the BTU rating.
