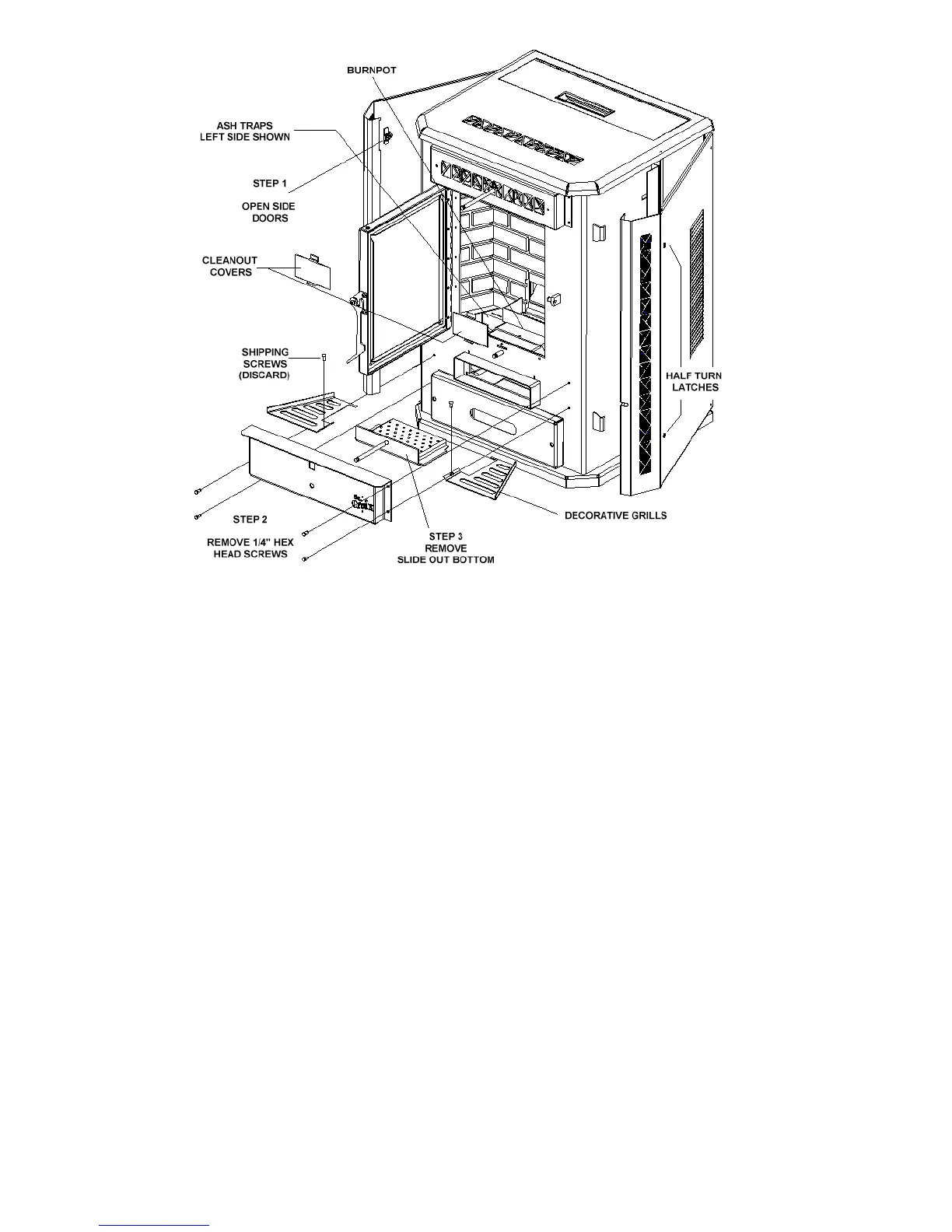

Figure 9
To remove the Burnpot from the stove, the Coal Rake must be pulled back so the pot
will clear it. Open the Firebox door of the stove and you will see 2 Hex head screws.
Follow steps 1 through 4 in figure 8 to remove the Burnpot from the stove. To remove
the Slide-out Bottom follow steps 1 through 3 in figure 9.
3. Clean-Out Ports/Ash Traps. The stove has 2 Exhaust Cleanout Ports located in the
LEFT AND RIGHT lower corners of the firebox. Left Cleanout/Ash Trap Cover
shown in figure 9. To access the Ash Traps, first remove the shipping screws that
hold the Decorative Grills in place. These screws may be discarded at this point.
Remove Decorative Grills. Remove Cleanout Covers and clean Ash Traps regularly
with a vacuum.
Frequency of cleaning depends on the amount of fuel being burnt and the quality of
the Corn. Failure to clean the Ash Traps will cause the Stove to become plugged
with Fly Ash.
4.
Heat Exchange Baffle. Remove the baffle and clean the ashes that accumulate on a
regular basis. Once a month or sooner, depending on the quality of fuel being used
(See
Figure 10 on Page 17)
Figure 10 shows how the baffle is removed from the Stove. Clean the baffle on a regular
basis. Frequency of cleaning depends on amount of fuel being burnt and the quality of the
corn.
Failure to clean the Baffle can cause the stove to become plugged with Fly Ash.
16
Lancaster Operations & Maintenance Manual
