ST ST7735R - Page 86

ST7735R
V0.2 86 2009-08-05
D
ISON
Display On/Off
‘1’ = On, “0” = Off
TEON
Tearing effect line on/off
‘1’ = On, “0” = Off
GCSEL2
GCSEL1
GCSEL0
Gamma Curve Selection
“000” = GC0
“001” = GC1
“010” = GC2
“011” = GC3
”100” to “111” = Not defined
TE
M
Tearing effect line mode
‘0’ =
mode1, ‘1’ = mode2
ST4
For Future Use
‘0’
ST3
For Future Use
‘0’
ST2
For Future Use
‘0’
ST1
For Future Use
‘0’
ST0 For Future Use ‘0’
“-“ Don’t care
Default
Status Default Value (ST31 to ST0)
ST[31-24] ST[23-16] ST[15-8] ST[7-0]
Power On Sequence 0000-0000 0110-0001 0000-0000 0000-0000
S/W Reset 0xxx0xx00 0xxx-0001 0000-0000 0000-0000
H/W Reset 0000-0000 0110-0001 0000-0000 0000-0000

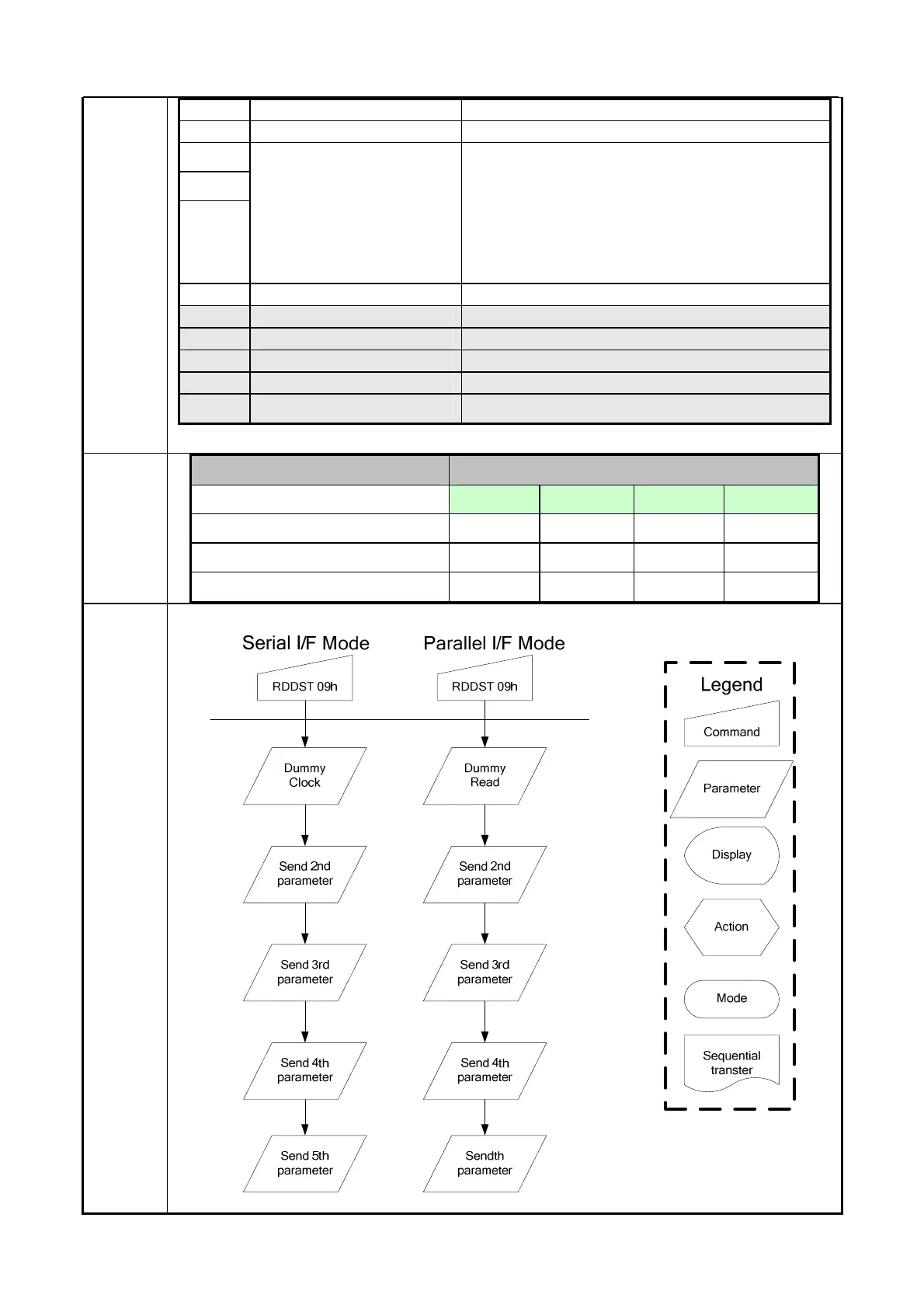

Flow Chart
