STA-RITE 1/2 HP - Repair Parts List

10
18
22
1
1A
1B
2
3
4
5
6
7
8
9
11
12
15
15A
17
18
19
10
13
14
16
20
21
367 0395

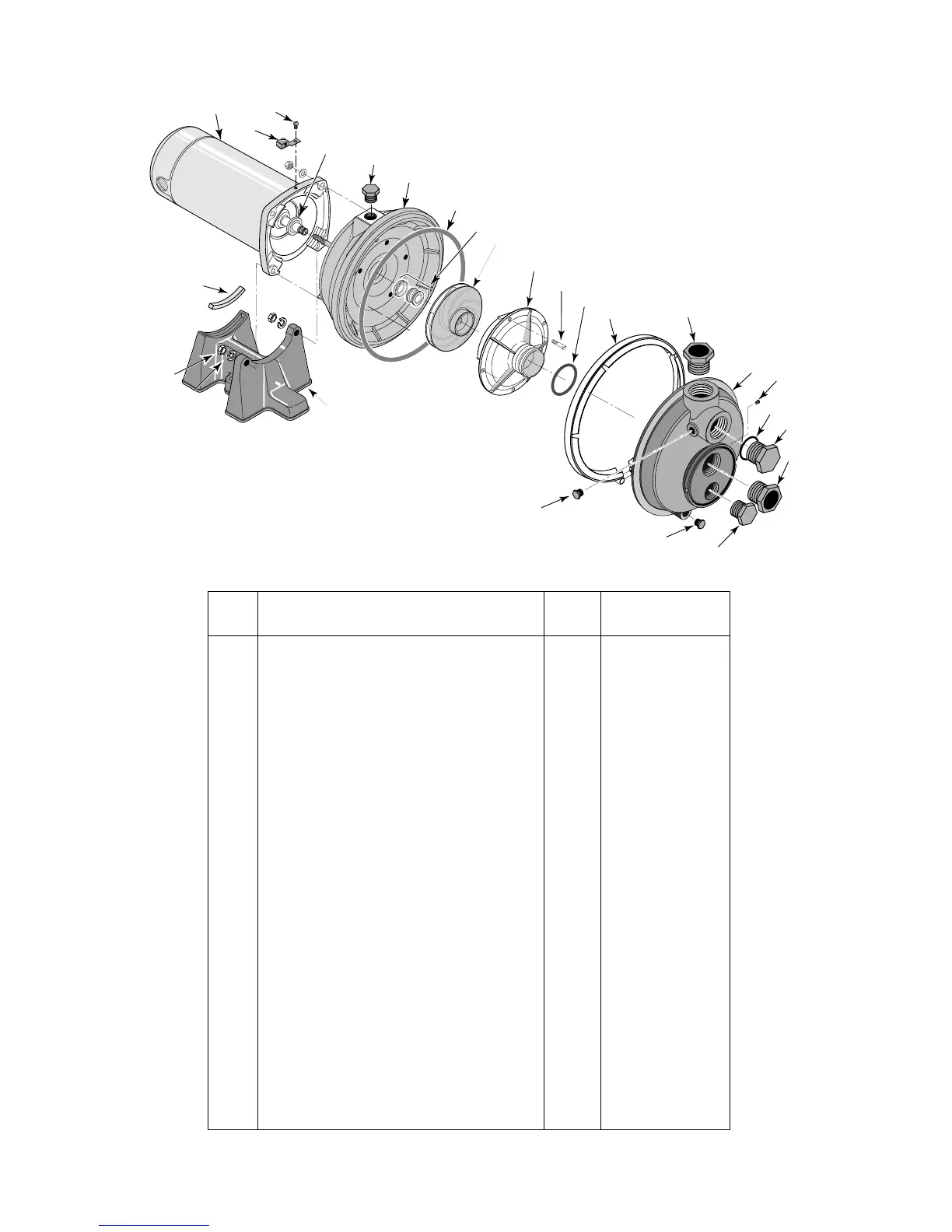

EXPLODED VIEW
Key Part No.
No. Description Used PLBC-178L
1 Motor 1/2 H.P. - 115/230V - 60 Cycle 1 A100CHL
1A Lug - Bonding 1 U17-568
1B Screw - #10 - 32 x 1/2” Lg. 1 U30-692SS
2 Water Slinger 1 C69-2
3 Pipe Plug - 1/2” 1 WC78-39T
4 Tank Body - Back Half 1 L176-47P
5 O-Ring 1 U9-389
6 Shaft Seal 1 17351-0102S
7Impeller 1 J105-8PACN
8 Diffuser 1 J1-40P
9 Screw - #8 - 32 x 7/8” Lg. 5 U30-542SS
10 O-Ring - Diffuser 1 U9-199
11 Clamp - Tank Body 1 C19-54SS
12 Reducer Bushing 1 U78-118PT
13 Tank Body - Front Half 1 L76-37P
14 Pipe Plug - 1/8” 1 WC78-41T
15 Bushing 1 L23-4P1
15A Gasket 1 L20-40
16 Reducer Bushing - 1-1/4” x 3/4” 1 U78-123PT
17 Pipe Plug - 1” 1 U78-830PT
18 Pipe Plug - 1/4” 2 WC78-40T
19 Base 1 C4-42P
20 Washer - Lock 4 U43-11SS
21 Nut - Hex - 5/16” - 18 4 U36-37SS
22 Motor Pad 1 C35-11
• Tag, “Caution. Use with permanent. . .” 1 61002-0002
REPAIR PARTS LIST
• Not illustrated.
