STA-RITE PoolShark GW7500 - Step 7: Remove Oscillator Sleeve

9
3906 0201

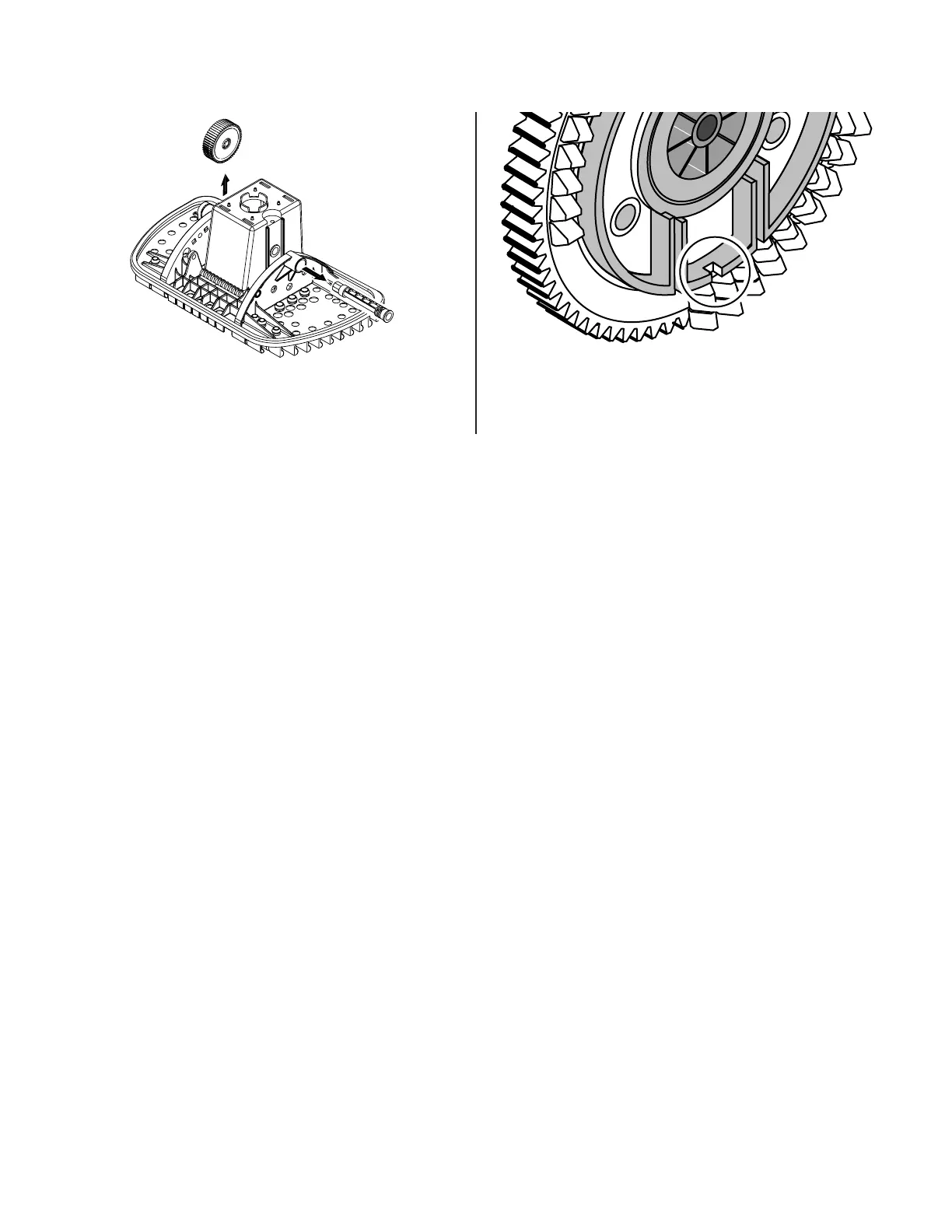

Step 7: Remove the Oscillator Sleeve, releasing the
Oscillator Sleeve Bushing and the Clutch assembly.
3907 0201
Reassembly: To reassemble the PoolShark, reverse the
steps above. NOTE: The notch on the center disk of the
Large Steering Drive Assembly must be down (as shown)
for assembly.
Disassembly (continued)
