ST215 User Handbook Page
5
Turning On

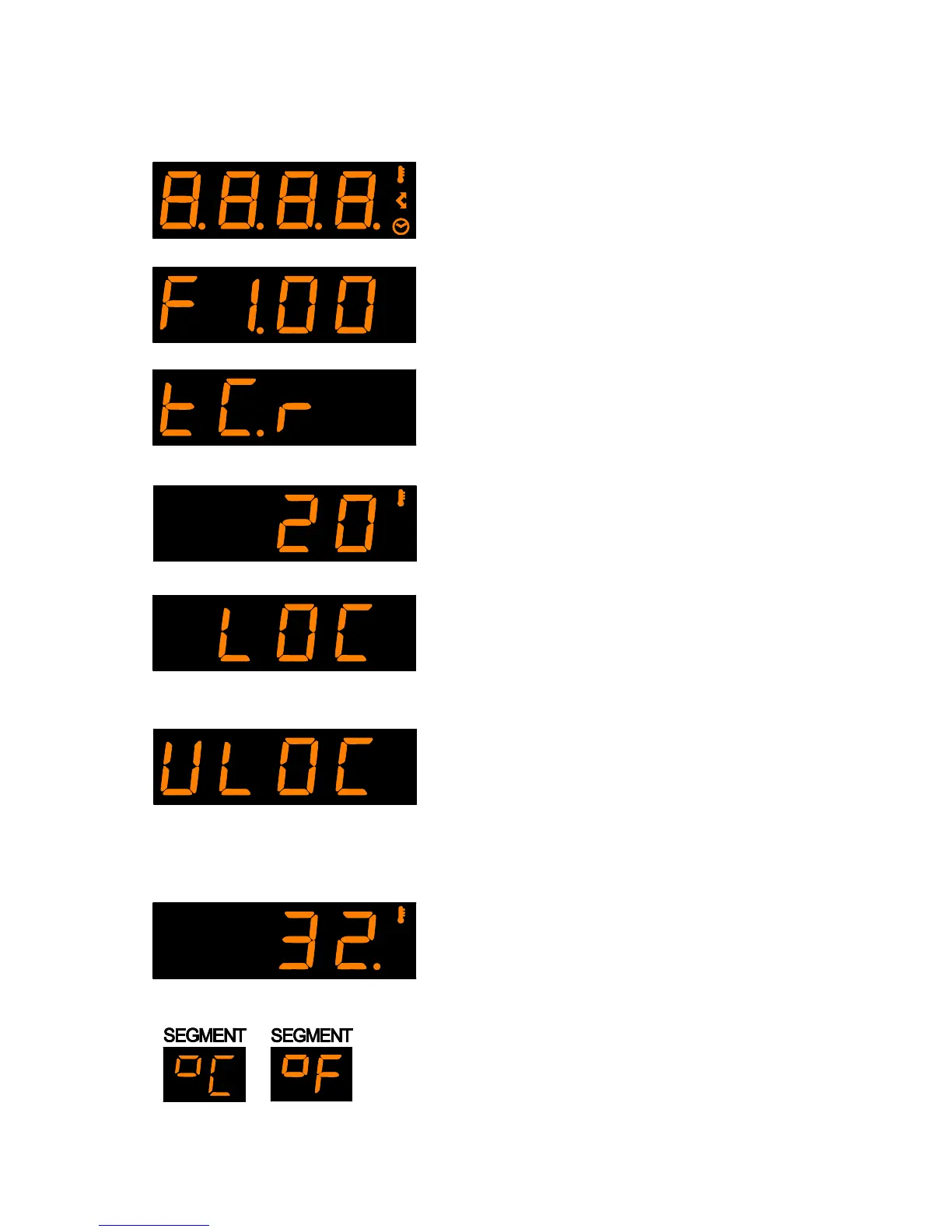

When turned on the ST215 performs a display
test by lighting all of the display segments and
illuminating all of the front panel indicator
lamps.
The version number of the software embed-
ded within the ST215 is now displayed. If you
need technical support you might be asked for
this code together with the serial number.
Next displayed is the thermocouple type set-
ting. This should match the type of thermo-
couple fitted to the kiln and can be R, S, K or
N type (r,S,H,n).
The final display will show the kiln tempera-
ture. All other lamps should be off.
If pressing any key causes LOC to appear
then the keyboard has been locked. This is
an anti-tamper feature. Press the ▲ & ▼
keys together & hold down for 5 seconds to
unlock.
During firing the right-hand decimal point
will light to show when heating power is
being applied to the kiln.
This now shows that the keyboard is UN-
LOCKED. To re-lock the keyboard press the
▲ & ▼ keys together & hold down for 5
seconds.
If any mimic panel lamps are on then the ST215 is firing. To stop the firing
press the ►n key.
Note: During power up the SEGMENT display
shows the operating units (°C/°F) of the ST215
(Installer adjustable).
