S6
INSTRUCTIONS
DIGITAL SPEEDOMETER, UNIVERSAL
EN
10
1. Introduction
Thank you for purchasing the STAGE6 Speedometer. Be-
fore installing and operating the instrument, please read the
instructions carefully and retain them for future reference.
1. The instrument requires a 12 V DC supply for the back-
light; the instrument itself is run by its own battery.
2. To install the instrument, please follow the steps as de-
scribed in the manual. For any damage caused by incorrect
installation, the user shall be held responsible.
3. To avoid short-circuits, please don’t pull the wires during
installation. Don’t break or modify the wire terminals.
4. Do not disassemble or change any parts other than the
ones referred to in this manual.
5. All interior examination or maintenance should be carried
out by our professionals.
Explanation of Symbols
Information after this symbol will help you understand es-
sential steps.
Follow these instructions accurately to avoid damage.
Some instructions must be followed to avoid damage to
yourself or others.
Some instructions must be followed to avoid damage to the
vehicle.
IMPORTANT:
WARNING
CAUTION
NOTE
NOTE

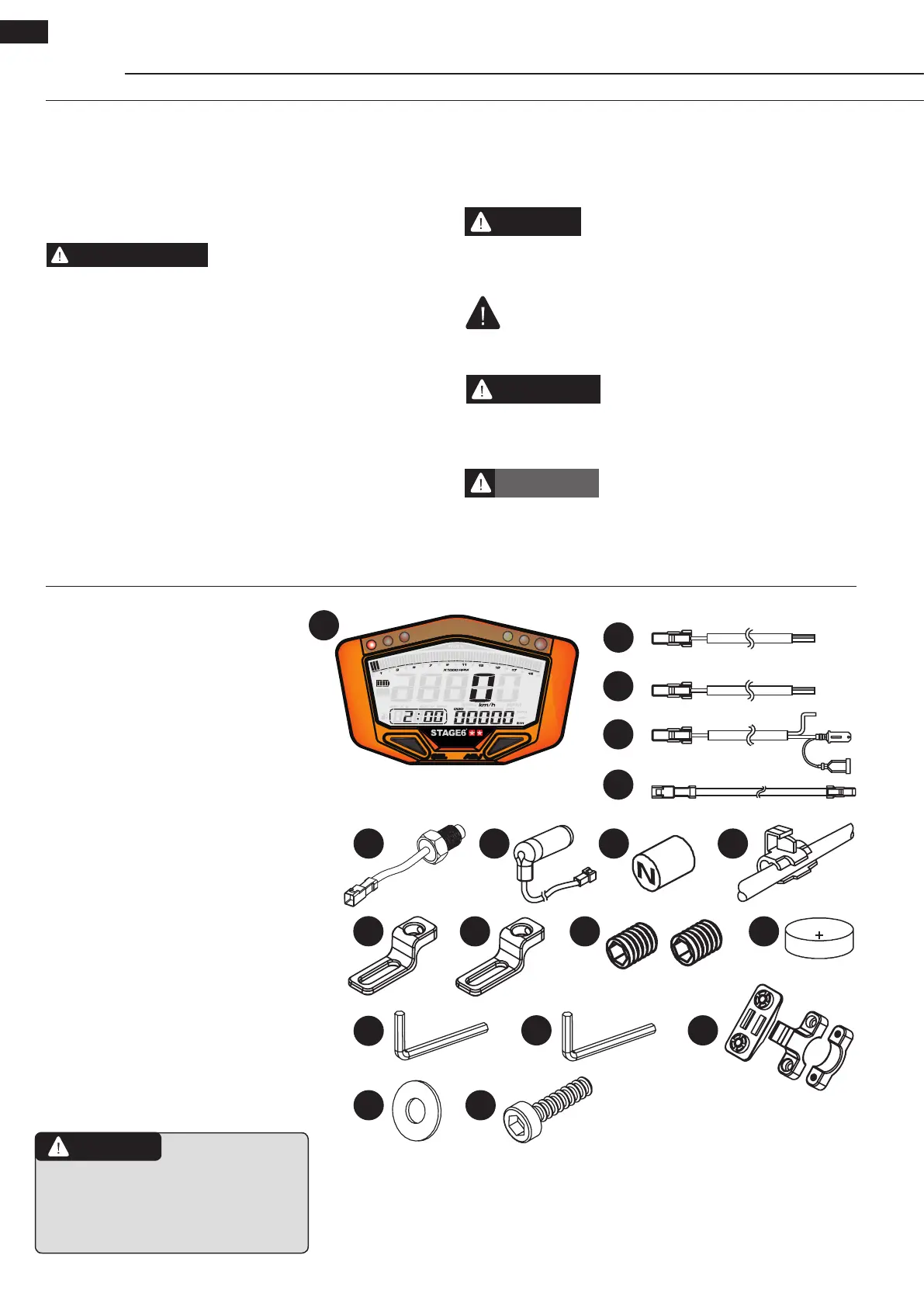

1.1 Accessories
1 Instrument (1 pc.)
2 Power wire (1 pc.)
3 RPM wire (type A) (1 pc.)
4 RPM wire (type C) (1 pc.)
5 Temperature sensor wire (2 pcs.)
6 Water temperature sensor PT 1/8 (2 pcs.)
7 Digital speed sensor (1 pc.)
8 Magnet D6 x 5L mm (1 pc.)
9 Connecting clip (2 pcs.)
10 Speed sensor bracket
type S M8 (1 pc.)
11 Speed sensor bracket
type S M10 (1 pc.)
12 Grub screw M5 x 5L (2 pcs.)
13 Battery (1 pc.)
14 2.5 mm hex key (1 pc.)
15 4 mm hex key (1 pc.)
16 Instrument bracket (1 pc.)
17 Washer M5 (2 pcs.)
18 Screw M5 x 15L (2 pcs.)
Please contact your local distributor if
the items you have received are diffe-
rent from the ones listed above!
2
4
3
5
6
10
1211 13
14
17 18
15 16
7
1
8 9
CR 2032
