Stagg TIM JR 516 - Tom-Tom Mounting and Cymbal Setup; Tom-Tom Holder Installation; Cymbal Arm and Cymbal Placement; Bass Drum Pedal Connection

3
5 6
4

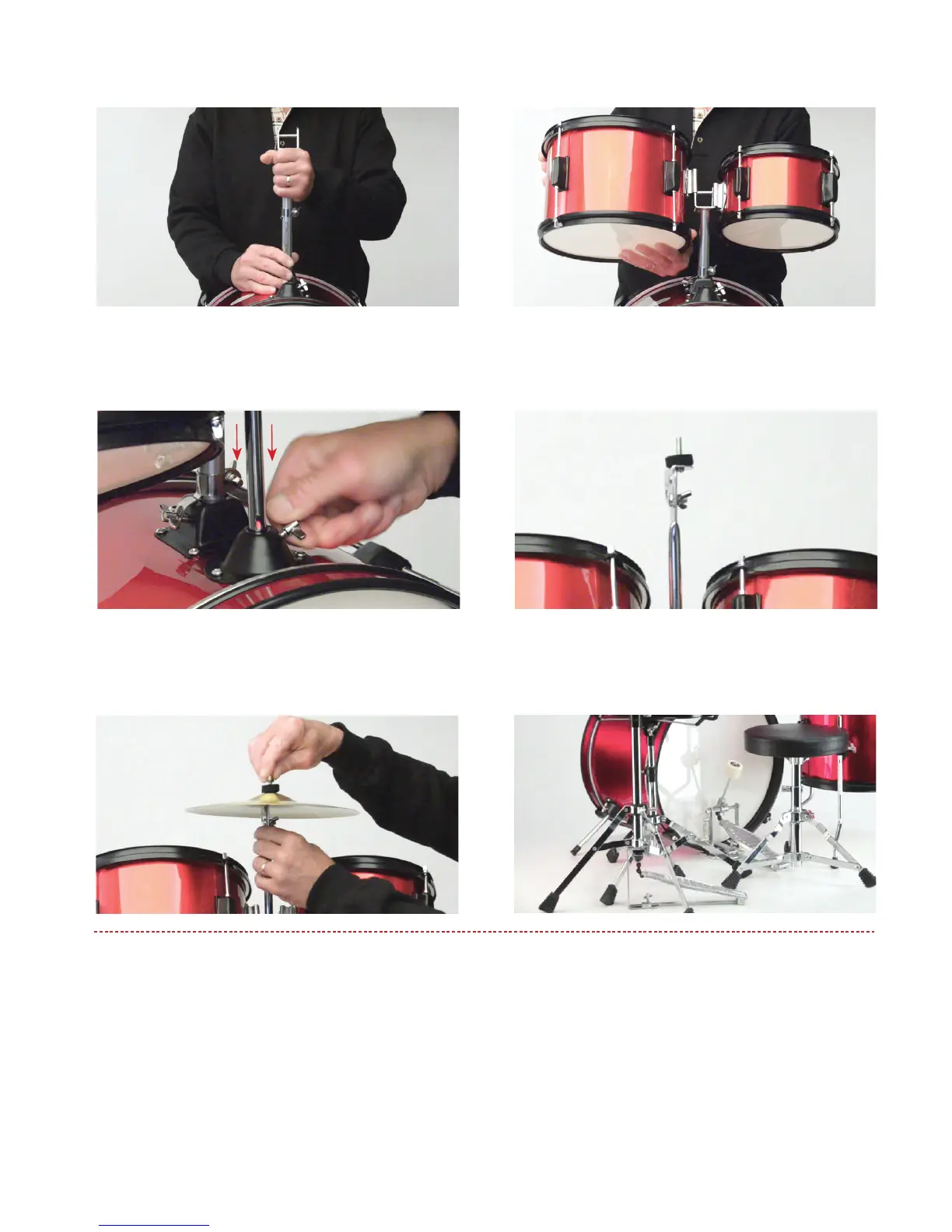

Insert the cymbal arm to
the holder bracket and tighten.
Unscrew the cymbal lock and
leave single felt on the holder.
1. Place the cymbal between 2 felts.
2. Place the spacer on the top.
3. Lock the cymbal.
Don’t forget to connect your
bass drum pedal before playing.
1
2
Hang 8” and 10” tom tom on the holder
The logo should face the audience.
Insert the tom tom holder
to the holder bracket and tighten.
f. Tom-tom, cymbal arm & bass drum pedal
