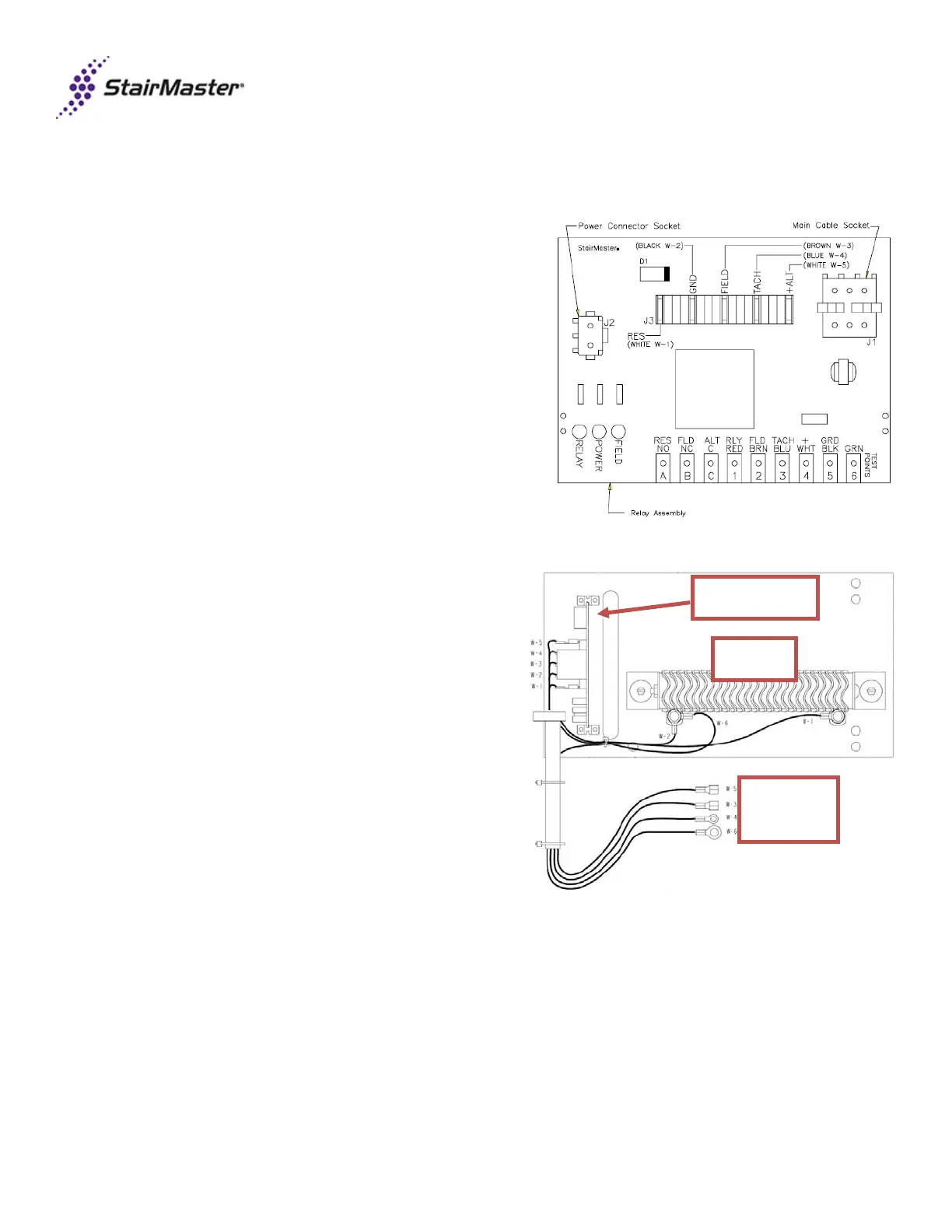

12VDC power comes into the lower board at the
J2 connection. The console’s J1 connection on
the board is where the main data cable plugs in.
Wires from the J3 location connect to the
appropriate posts on the alternator.
When the machine is plugged in and on, the
Power and Relay LEDs should be lit. Once the
alternator senses motion, i.e. a user is on the
machine, the Field LED will become lit.
The lower board mounts to a plate that also
houses the 0.5 ohm resistor.
Alternator
