ASSEMBLY INSTRUCTIONS
8

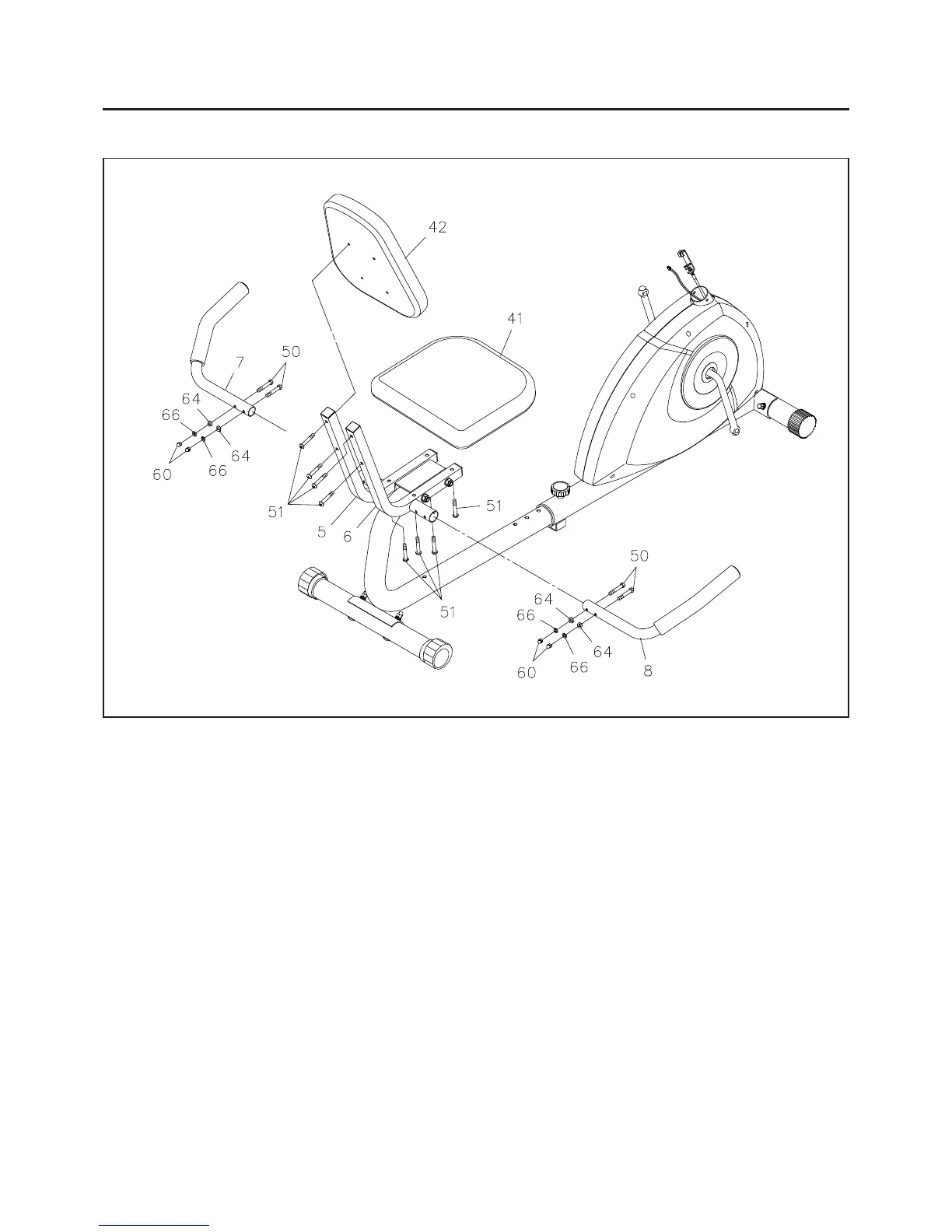

STEP 4
NOTE:
Install the HEX BOLTS
(M6x1x37mm)(50) as shown in the illustration above. This allows the head
of the bolts to fit inside the hex shape holes in the SEAT FRAMES(5, 6).
Attach the RIGHT HANDRAIL(8) to the RIGHT SEAT FRAME(6) with HEX BOLTS(M6x1x37mm)(50),
ARC WASHERS(M6)(64), LOCK WASHERS(M6)(66), and ACORN NUTS(M6x1)(60). Repeat on the left
side.
STEP 5
Attach the SEAT CUSHION(41) to the LEFT and RIGHT SEAT FRAMES(5, 6) with ROUND HEAD BOLTS
(M6x1x35mm)(51).
Attach the BACK CUSHION(42) to the LEFT and RIGHT SEAT FRAMES(5, 6) with ROUND HEAD BOLTS
(M6x1x35mm)(51).
